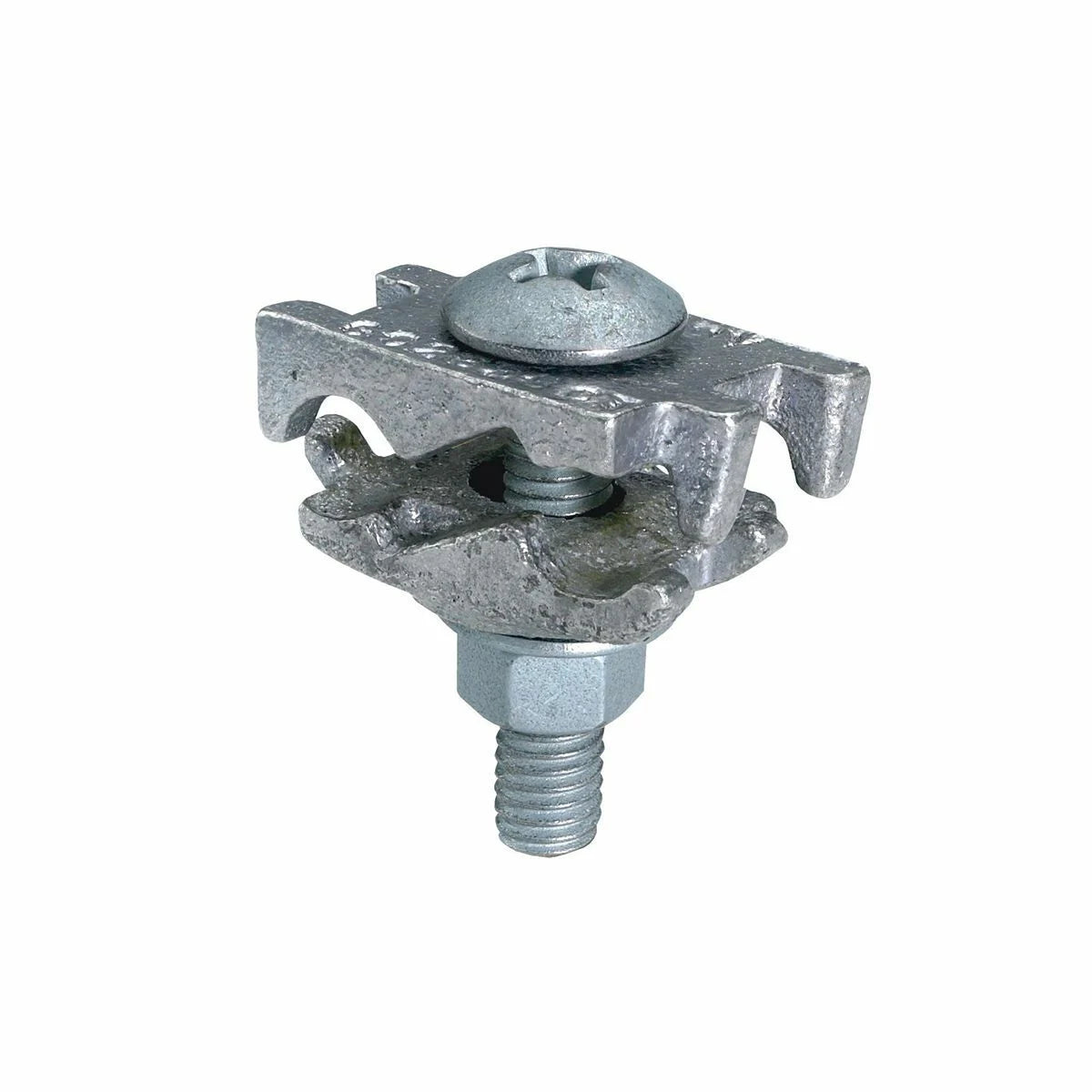

Burndy GC2929CT Cast CU Alloy Cable Tray Ground Clamp 2/0 Str-250 KCMIL

Product Description

The Burndy GC2929CT is a cast copper alloy cable tray ground clamp suitable for conductor sizes between two/0 AWG and two hundred fifty KCMIL. This clamp is designed for direct burial applications in concrete or earth.

• UL467 listed for copper conductor only.
• Allows for the use of one or two conductors, copper or aluminum cable.
• Made of tin-plated cast copper alloy for enhanced durability.

Product Highlights

This ground clamp features a low profile head with a deep Phillips recess, making installation straightforward and reliable.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Brand: Burndy

Technical Specifications

• Catalog Number: GC2929CT
• Application: For direct burial applications in concrete or earth and for use with aluminum or galvanized steel cable tray.
• Material: Copper alloy
• Special Features: Accommodates either one or two conductors, low profile design, UL467 listed.
• Country of Origin: Mexico
• Width: 1.98 inches
• Height: 2.2 inches
• Stud/Bolt Size: 3/8-16
• Installation Torque: 240 in-lb
• UPC: 781810220580
