BURNDY GC22A Mechanical Grounding Connector, Cable to Water Pipe, 6 AWG - 250 KCMIL, 2-1/2 - 4 Pipe, Al/Cu Rated.

Product Description

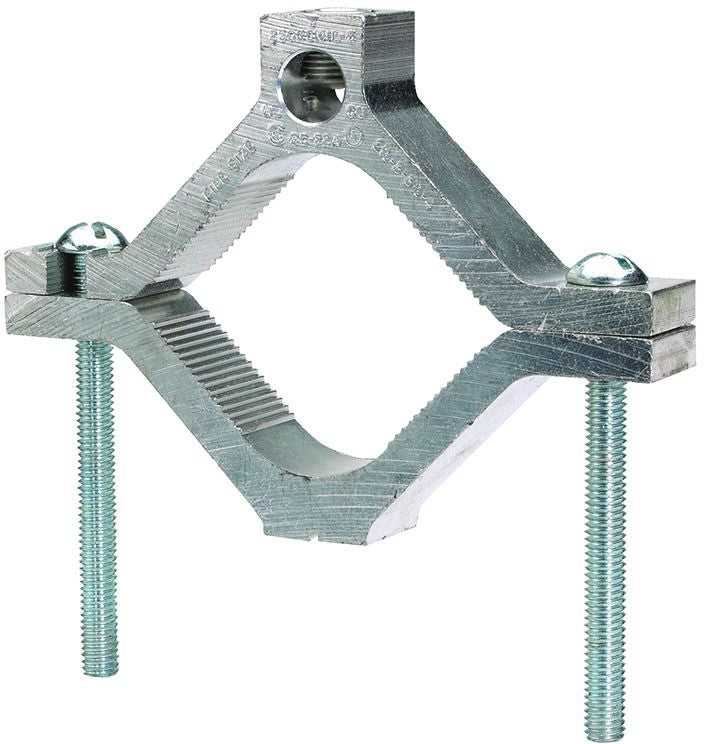

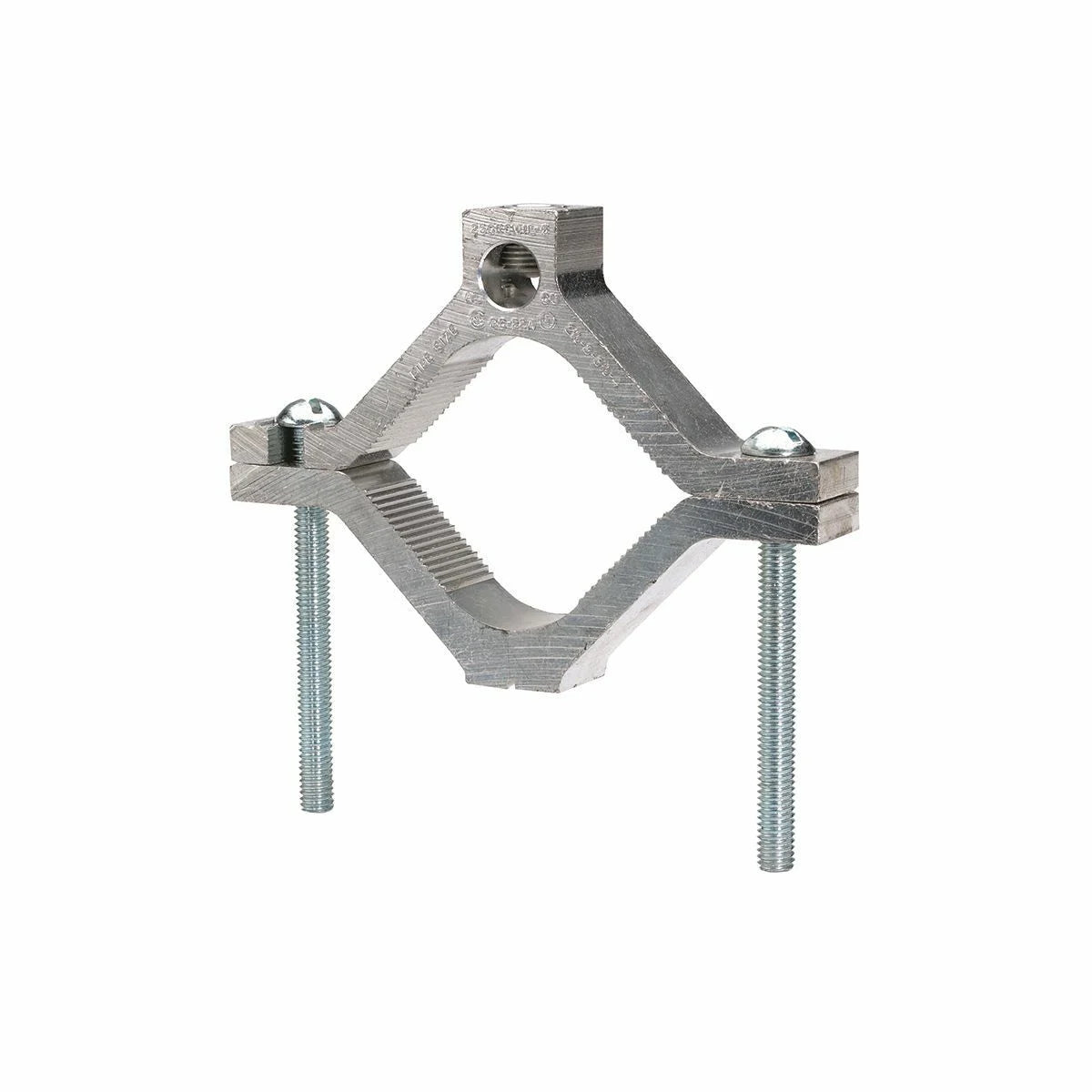

The BURNDY GC22A is a mechanical grounding connector designed for use with copper or aluminum conductors to connect to copper water pipes, galvanized pipes, or steel conduits. This reliable connector accommodates conductor sizes from six AWG to 250 KCMIL and is compatible with pipe sizes ranging from two and a half inches to four inches.

• Robust construction suitable for various conductor materials
• UL listed for safety and compliance with industry standards
• Easy installation with hex head screws

Product Highlights

The grounding connector combines high-strength materials with innovative design. It offers maximum flexibility for different applications, making it ideal for electrical contractors.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: GC22A
• Application: For use with copper or aluminum conductors to copper water pipe, galvanized pipe, or steel conduit
• Material: Aluminum
• Temperature Rating: -0.4 degrees Fahrenheit
• Standard: UL467
• UPC: 781810240021
• Item Type: GC-A, Dual Rated
• Made in USA: Yes
