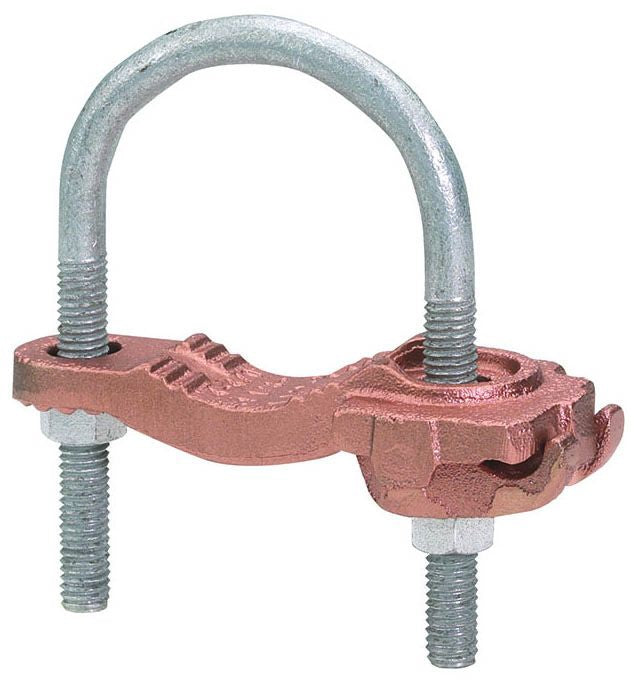

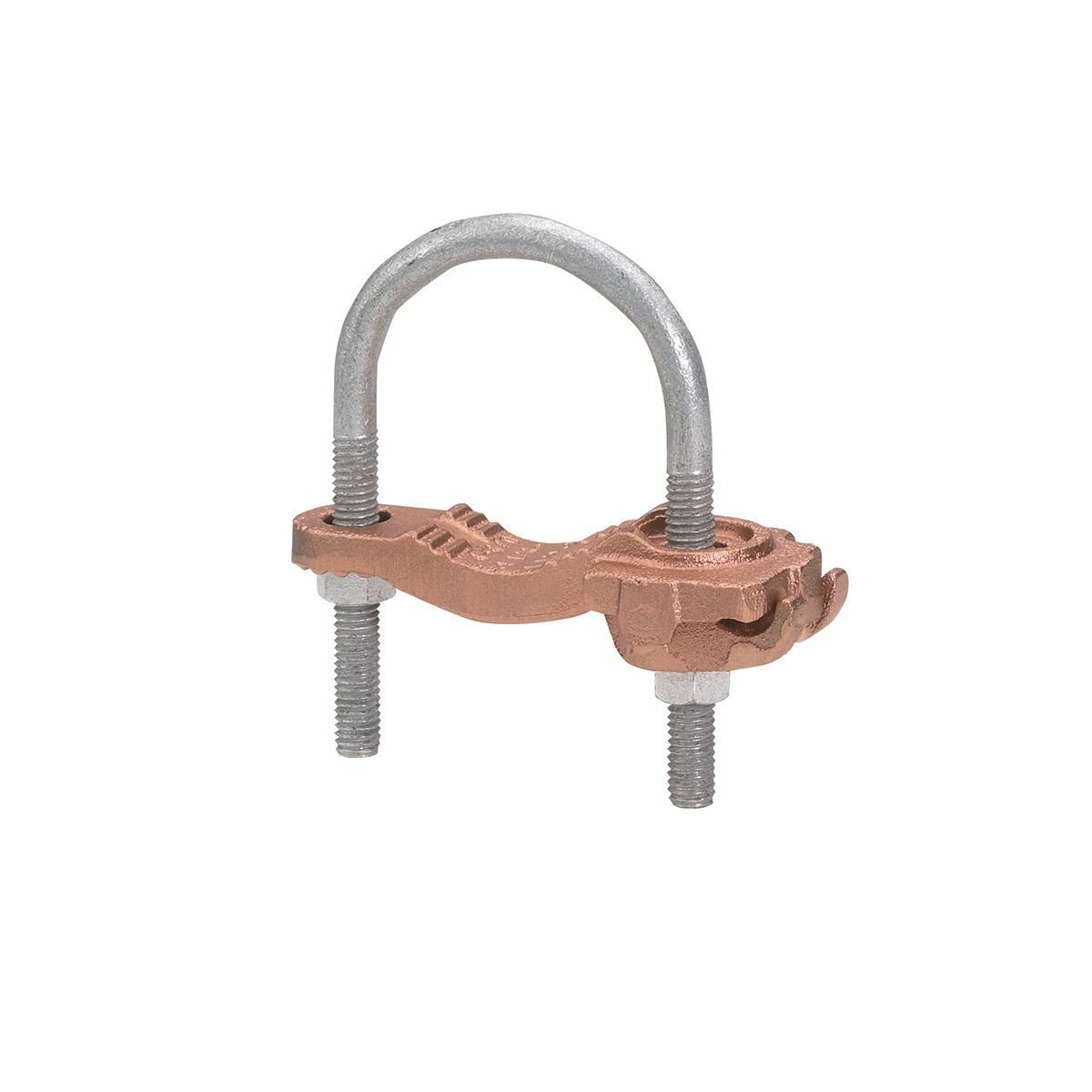

Burndy GAR3908 Mechanical Grounding Connector Conductor to Water Pipe 4-4/0 AWG 10 Pipe

Product Description

The Burndy GAR3908 is a mechanical grounding connector designed for the connection of a small to medium range copper ground conductor to water pipes. This device is compatible with conductors sized from four to four aught American Wire Gauge (AWG) and is suited for a pipe size of ten. This connector is essential for grounding applications requiring reliable and efficient connections.

• Rated for conductors 4-4/0 AWG
• Constructed from high-conductivity copper alloy
• UL467 listed for quality assurance

Product Highlights

The Burndy GAR3908 features a one-wrench installation process and a swivel cable clamp that allows for a 90-degree cable run and parallel grounding of pipes. This connector is suitable for direct burial in earth or concrete for reliable performance.

Product Information

Standard Information

• Brand: Burndy
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: GAR3908
• Material: Copper Alloy
• Application: Connecting copper ground conductors to water pipes and reinforcing rod shapes
• Installation Torque: 240 in-lb
• Ground Rod Size: 10 in
• Tube Size: 10 in
• Height: 12 in
• Width: 12.75 in
