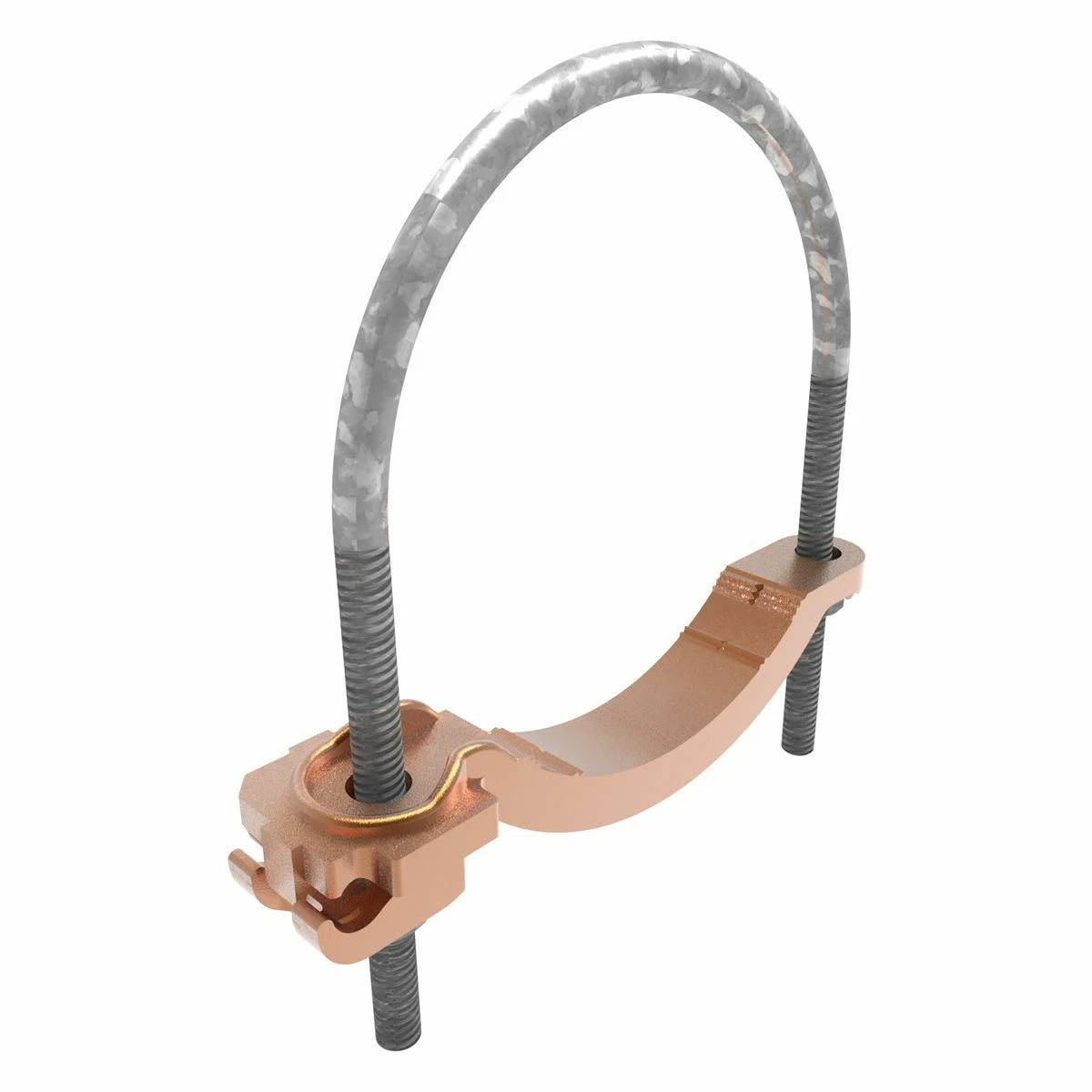

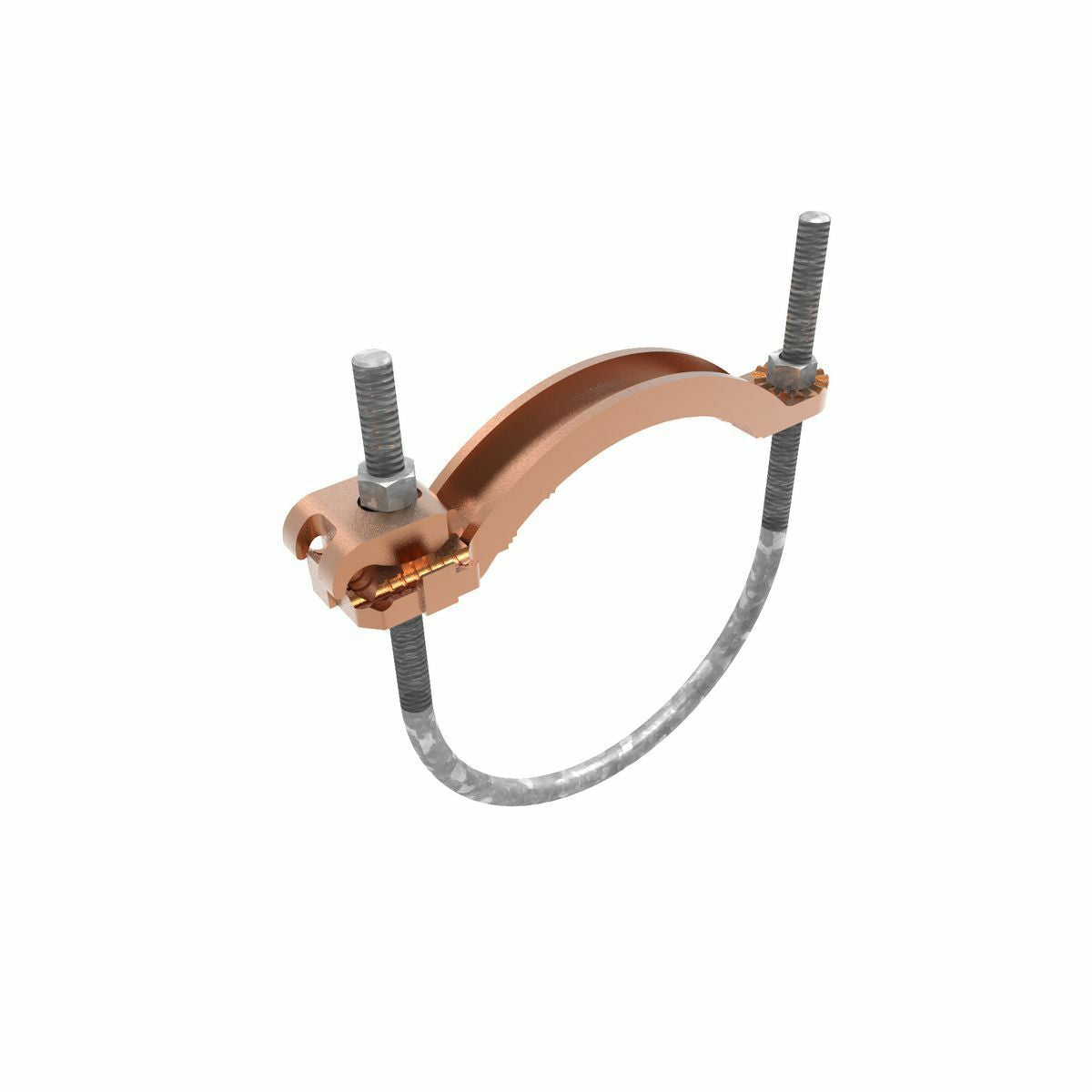

BURNDY GAR3906 Mechanical Grounding Connector, Conductor to Water Pipe, 4-4/0 AWG, 6 Pipe, 3/8 Stud

Product Description

The BURNDY GAR3906 is a mechanical grounding connector designed for reliable connection of copper ground conductors. This connector is suitable for use with conductors ranging from four to four-aught American Wire Gauge (AWG). It connects to water pipes and supports structural installations.

• Fits copper ground conductors, sizes 4 to 4/0 AWG.
• Constructed from durable copper alloy.
• UL Listed and suitable for direct burial applications.

Product Highlights

This connector simplifies installation with a one-wrench design and a unique swivel cable clamp feature that allows for both parallel grounding and corner runs.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: GAR3906
• Material: Copper Alloy
• Application: Connects copper conductors to water pipes and structural rods
• Installation Torque: 240 inch-lb
• Height: 8.5 inches
• Width: 8.62 inches
• Rod Size: 6 inches
• Special Features: High-conductivity design, corrosion resistance, suitable for direct burial
