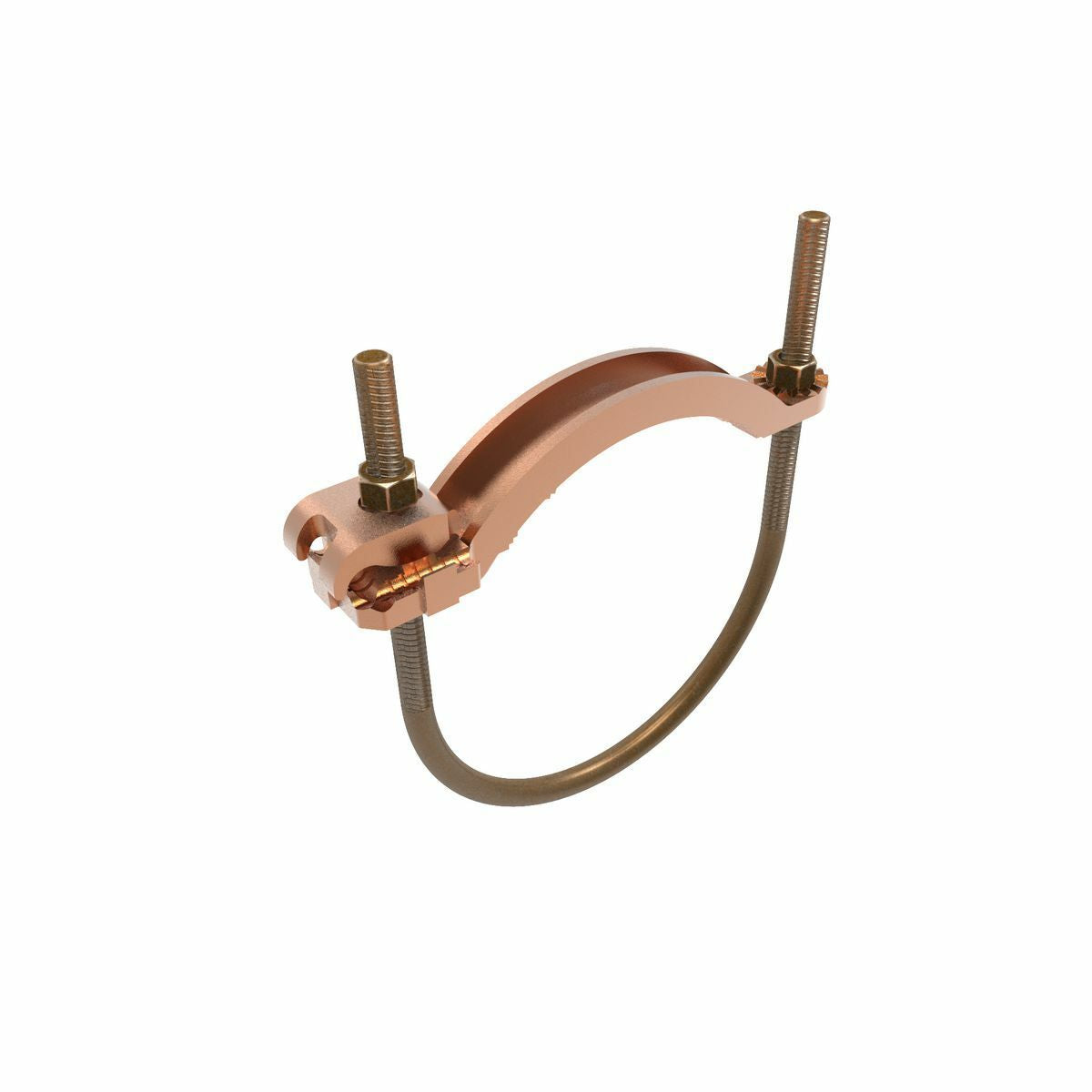

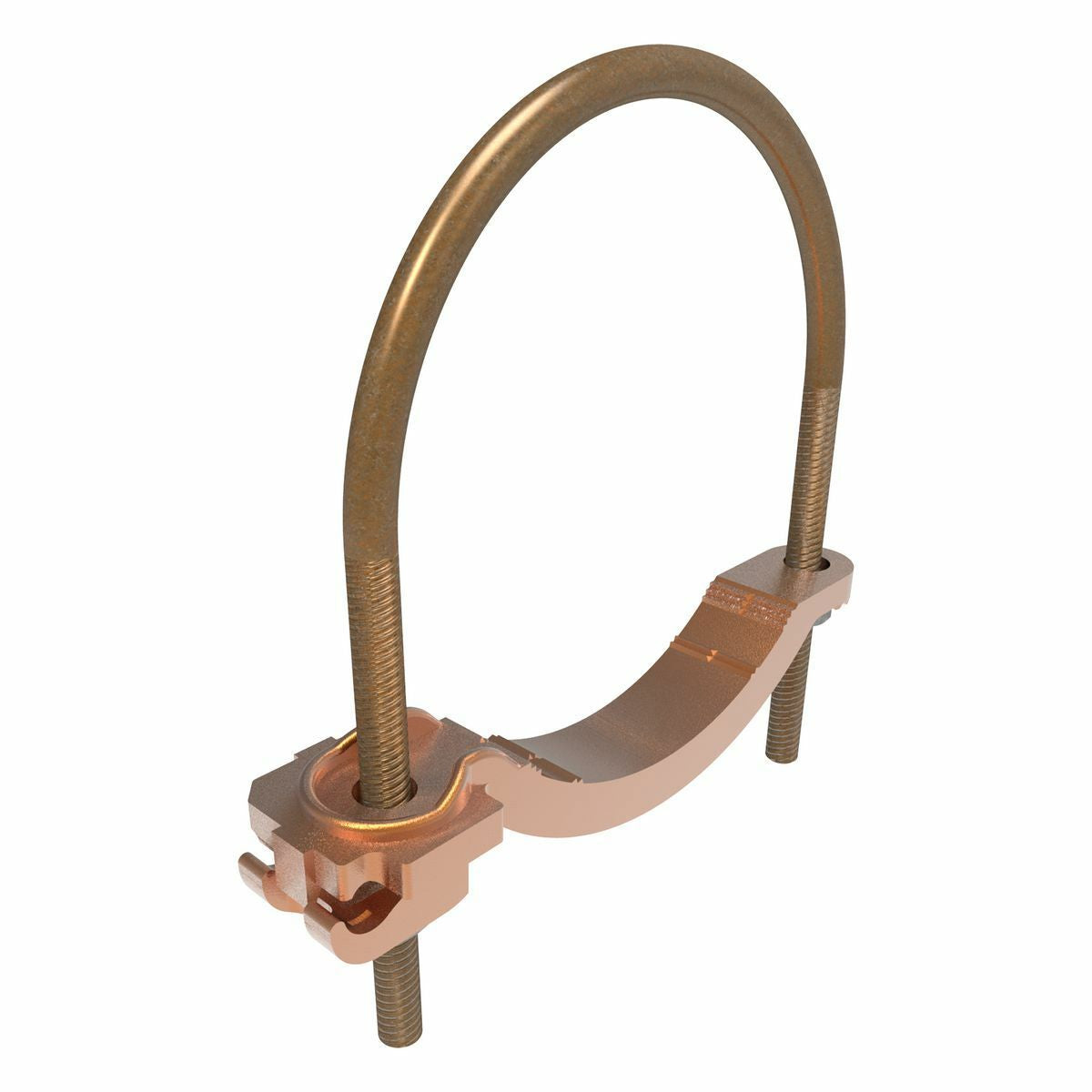

Burndy GAR3905BU Mechanical Grounding Connector, Conductor to Water Pipe, 4-4/0 AWG, 4-5 Pipe, 3/8 Stud

Product Description

The Burndy GAR3905BU is a mechanical grounding connector designed for copper ground conductors. This connector is suitable for use with conductors ranging from four to four aught American Wire Gauge (AWG) to water pipes and structural shapes. Its robust design ensures a secure connection to both water pipes and ground rods.

• Designed for connecting a small to medium range copper ground conductor to water pipes.
• Constructed from high-conductivity copper alloy for reliable performance.
• UL467 listed for quality assurance to recognized industry standards.

Product Highlights

This connector facilitates effective grounding by connecting conductors to water pipes reliably. Its design allows for easy installation and corrosion resistance, making it ideal for long-lasting applications.

Product Information

Standard Information

• Brand: Burndy
• Manufacturer: Burndy, a Hubbell Affiliate

Technical Specifications

• Catalog Number: GAR3905BU
• Application: Connecting copper ground conductors to water pipes
• Material: Copper Alloy
• Tube Size: 4-5 inches
• Installation Torque: 240 in-lb
• Height: 7.5 inches
• Width: 7.5 inches
• Special Features: One-wrench installation, swivel cable clamp, suitable for direct burial.
