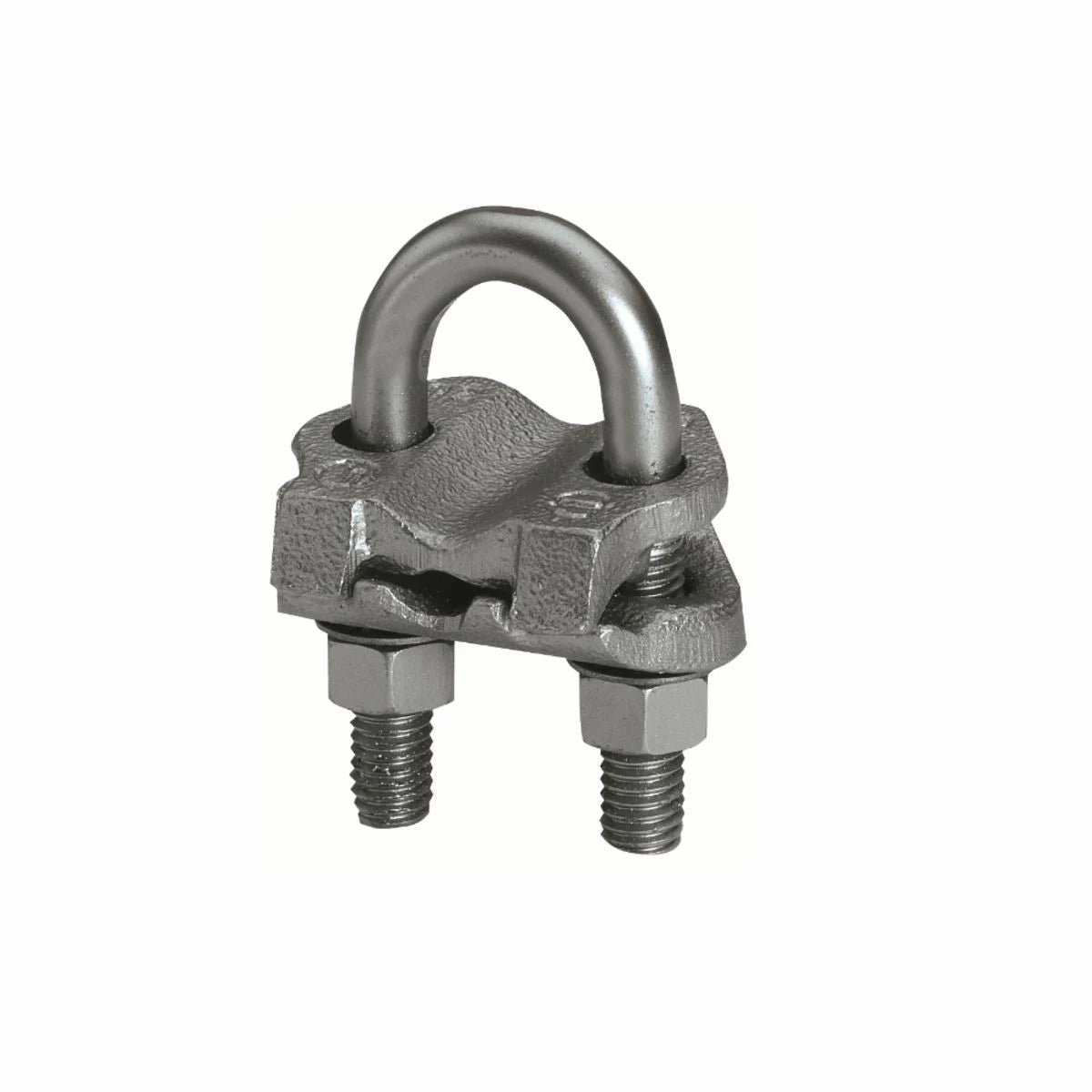

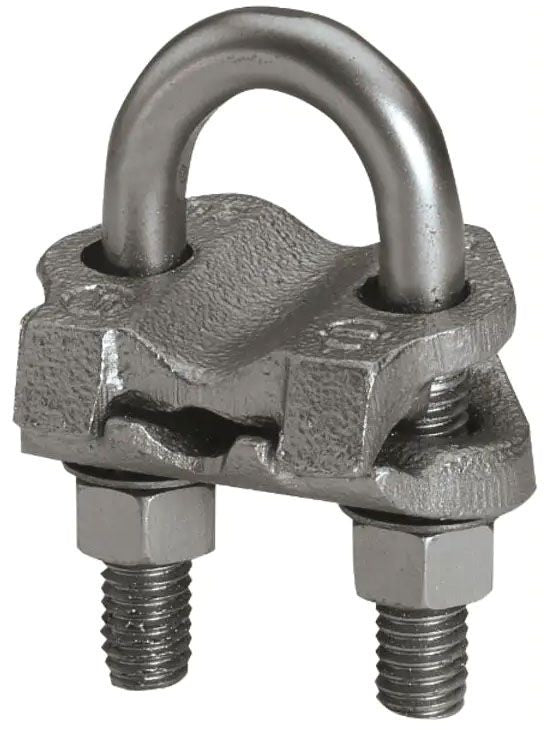

BURNDY GAR2234 Mechanical Grounding Connector 300 - 500 KCMIL 4 to 4-1/2 Rod 4 Pipe

Product Description

The BURNDY GAR2234 Mechanical Grounding Connector is designed for use with cables ranging from three hundred to five hundred KCMIL. It connects directly to rods or pipes of four to four and a half inches, providing secure and reliable connections. The connector is constructed from a high copper alloy for optimal conductivity and durability.

• Suitable for direct burial installations.
• UL467 listed for safety and reliability.
• One-wrench installation for ease of use.

Product Highlights

This mechanical grounding connector is ideal for joining cables either parallel or at right angles to rods or tubes. It is especially effective for applications involving fence posts and direct burial cables.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: GAR2234
• Material: Copper Alloy
• Installation Torque: 480 IN-LB
• Ground Rod Size: 4 - 4-1/2 inches
• Tube IPS Size: 4 inches
• Width: 6-1/4 inches
• Height: 6-7/8 inches
• Standard: UL467
