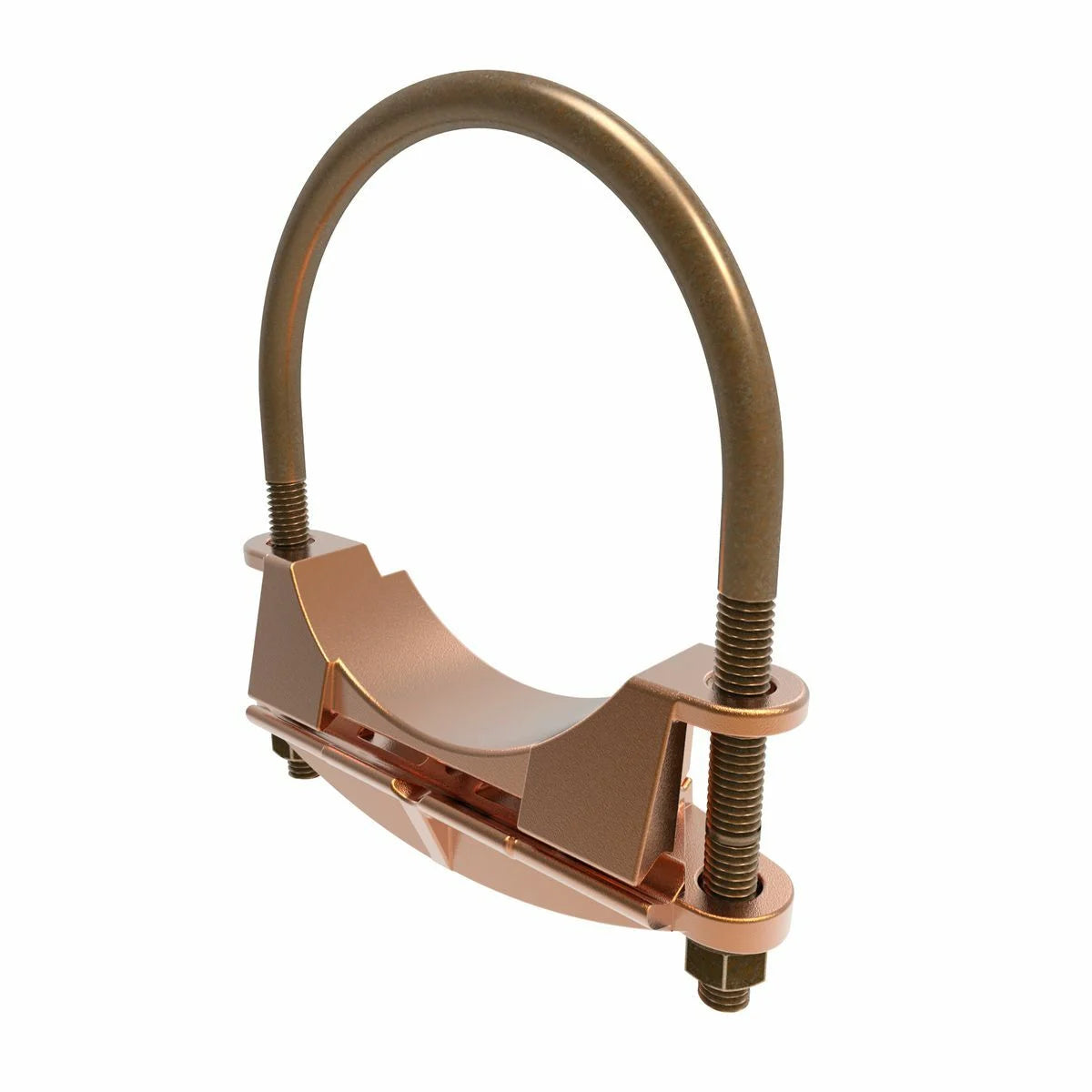

BURNDY GAR2229 Mechanical Grounding Connector, Cable to Rod or Pipe, 2/0 AWG (Sol) -250 kcmil, 4 Pipe, 4-4-1/2 Rod

Product Description

The BURNDY GAR2229 is a mechanical grounding connector designed for joining a range of cable configurations. It accommodates solid conductors from two AWG to four AWG and stranded wires up to 250 kcmil. The connector facilitates connections between cable and rods or pipes while allowing for direct burial applications.

• Suitable for various rod sizes including four to four and a half inches.
• Made from high copper alloy for sustainable performance.
• UL467 certified for reliable use in grounding applications.

Product Highlights

This connector is engineered for optimal use in connecting cables parallel or at right angles to rods or tubes, making it suitable for a variety of applications, including fence posts and direct burial.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: United States

Technical Specifications

• Catalog Number: GAR2229
• Material: Copper Alloy
• Application: For joining a range of cable, parallel or at right angles to rod or tube, direct burial cable, fence post
• Special Features: High copper alloy cast body with DURIUM U-bolts, single-wrench installation, UL467 listed
• Ground Rod Size: 4 - 4-1/2 inches
• Installation Torque: 240 inch-lb
• Height: 6-3/8 inches
• Width: 5-7/8 inches
