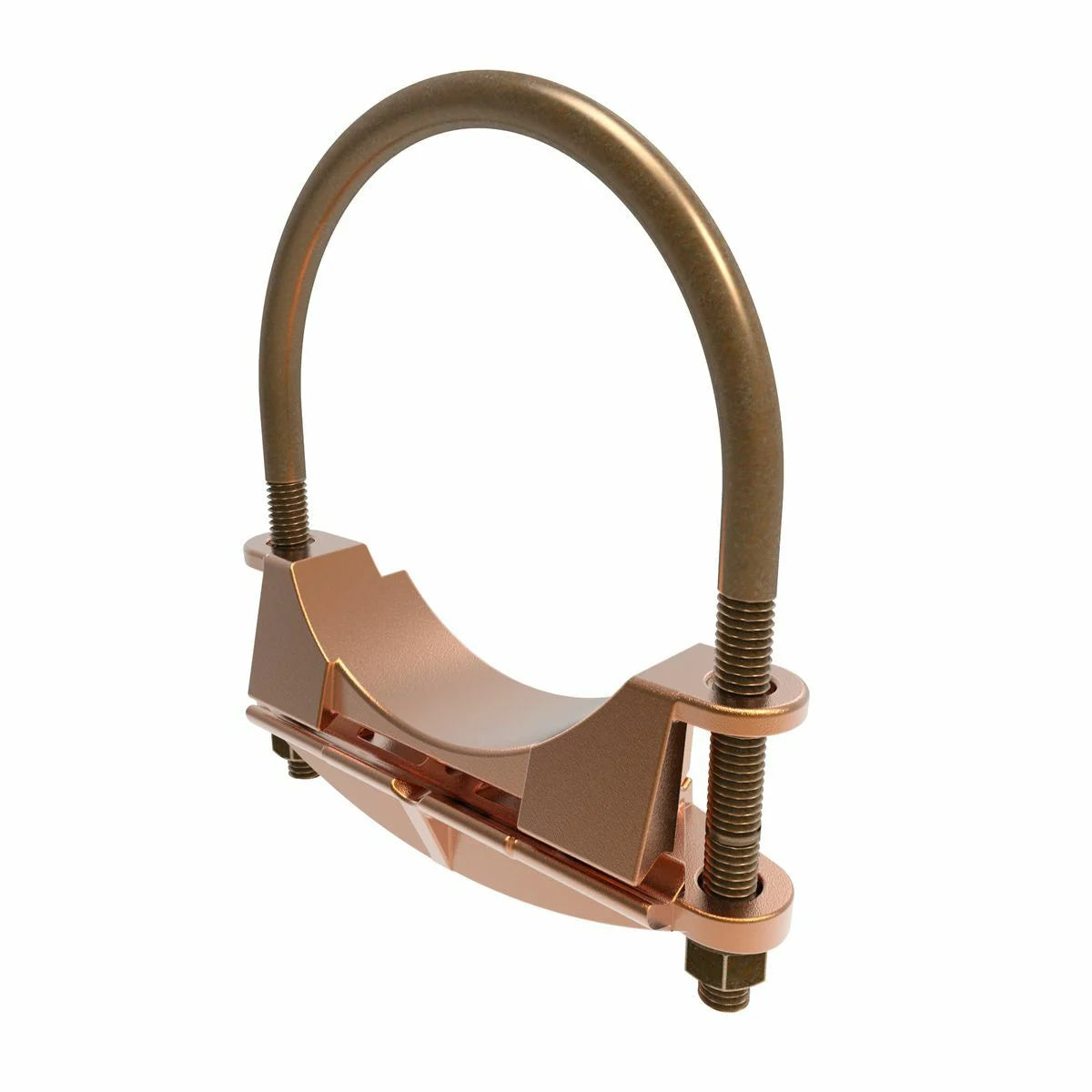

BURNDY GAR2029 Mechanical Grounding Connector, Cable to Rod or Pipe, 2/0 AWG (Sol) -250 KCMIL

Product Description

The BURNDY GAR2029 is a mechanical grounding connector designed for electrical connections between cables and grounding rods or pipes. This high-quality connector accommodates a conductor size range of two aught (2/0) to four aught (4/0) AWG solid copper cable and one aught (1/0) AWG to two hundred fifty (250) KCMIL stranded copper cable. It is suitable for direct burial applications and can be installed at parallel or right angles to rods or tubes.

• Material: Copper alloy, high copper alloy cast body.
• UL467 listed for safe use and direct burial.
• Installation torque requirement of two hundred forty (240) inch-pounds.

Product Highlights

This grounding connector features Durium U-bolts and nuts to ensure a reliable connection. Its design allows the entire connection to be buried in the ground or concrete without risking corrosion.

Product Information

Standard Information

• Catalog Number: GAR2029
• Brand: BURNDY

Technical Specifications

• Manufactured By: Burndy, a Hubbell affiliate
• Application: For joining a range of cable, parallel or at right angles to rod or tube
• Country of Origin: United States
• Material: Copper Alloy
• Height: Five and five-eighths inches
• Width: Four and three-quarters inches
• Tube (IPS) Size: Three inches
• Ground Rod Size: Three to three and one-half inches
• Special Features: One-wrench installation, UL467 listed, acceptable for direct burial
