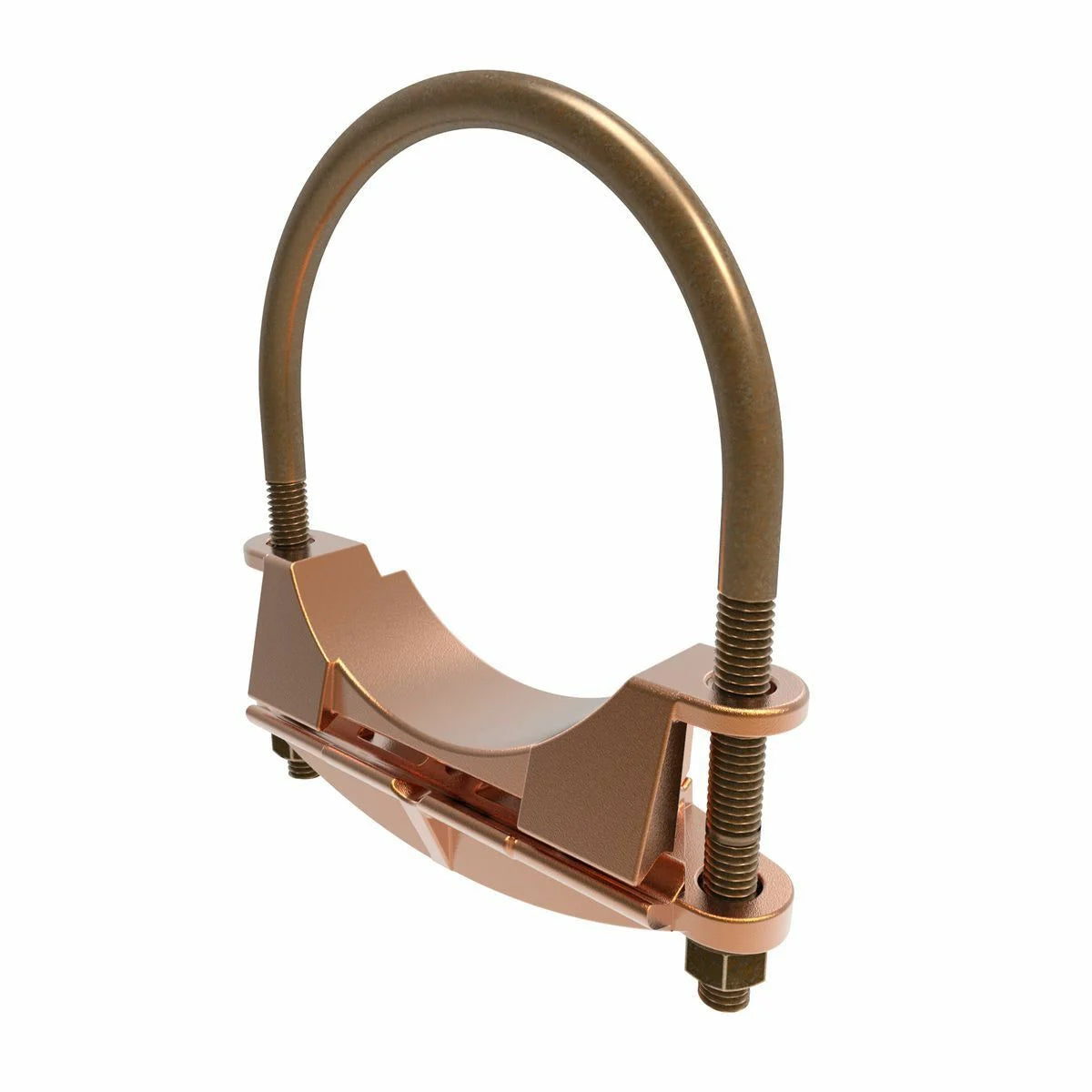

BURNDY GAR1929 Mechanical Grounding Connector, Cable to Rod or Pipe, 2/0 AWG (Sol.) - 250 kcmil, 2-1/2 to 2-7/8 Rod, 2-1/2 Pipe

Product Description

The BURNDY GAR1929 is a mechanical grounding connector designed for specific cable sizes. It connects cable to rods or pipes securely. This product supports conductor sizes from 2/0 AWG to 4/0 AWG solid and up to 250 kcmil stranded. It is suitable for use with rods sized from two and a half inches to two and seven-eighths inches and pipes of two and a half inches in diameter.

• Constructed from high copper alloy
• UL467 listed for safety and reliability
• Features a one-wrench installation for easy setup

Product Highlights

The GAR1929 allows for a strong connection in both parallel and right angle configurations for various applications, including direct burial cables.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: GAR1929
• Material: Copper
• Special Features: High copper alloy construction with DURIUM U-bolts, nuts, and lockwashers; suitable for burial in ground or concrete without risk of corrosion.
• Installation Torque: 240 IN-LB
• Height: 5 IN
• Width: 4-1/4 IN
• Ground Rod Size: 2-1/2 - 2-7/8 IN
• Tube (ips) Size: 2-1/2 IN
