BURNDY GAR1734 500MCM GRND CONN

Product Description

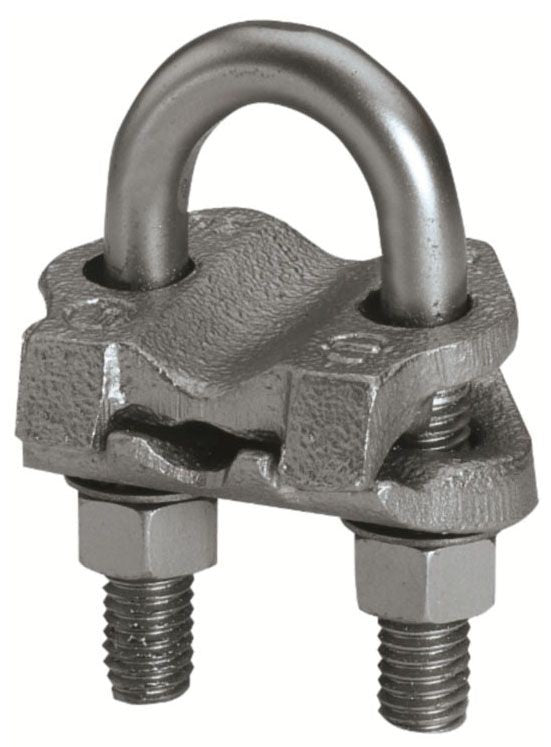

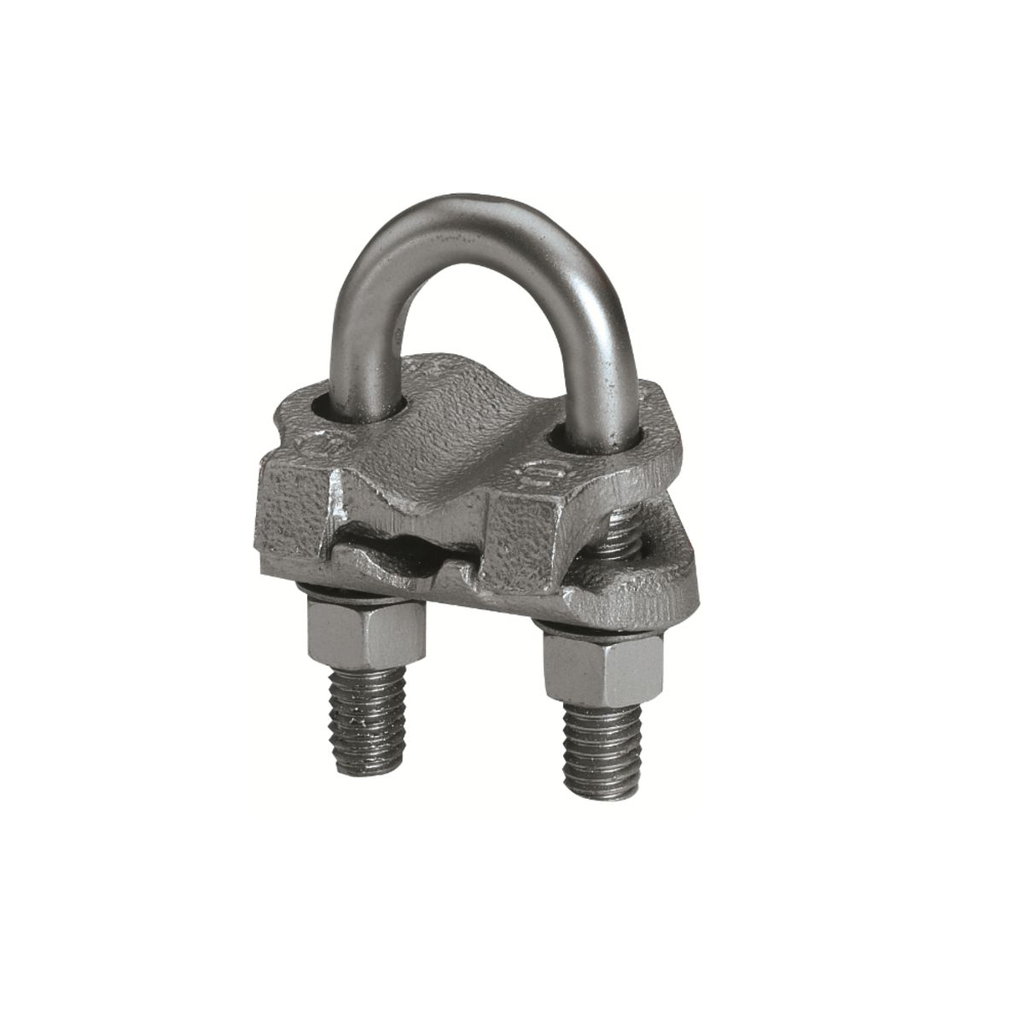

The BURNDY GAR1734 is a mechanical grounding connector suitable for wire sizes from three hundred to five hundred kcmil stranded copper. This grounding connector is designed for installation on pipes and rods, featuring a one and one half inch IPS size. It can accommodate rods with a diameter from one and five eighths inches to one and seven eighths inches, and it measures two and five eighths inches in width and four and five eighths inches in height.

• Conductor size from three hundred to five hundred kcmil
• Made from high copper alloy with Durium silicon bronze hardware
• UL approved for safety and reliability

Product Highlights

This connector is widely used for connecting parallel or ninety degree copper cables to pipes or rods. It is ideal for applications including direct burial and wire connections to rebar or fence posts.

Product Information

Standard Information

• Manufacturer: BURNDY
• UPC: 78181023460

Technical Specifications

• Conductor Size: 300 to 500 KCMIL Stranded Copper
• IPS Size: 1-1/2 Inch
• Rod Size: 1-5/8 to 1-7/8 Inch
• Dimensions: 2-5/8 Inch W x 4-5/8 Inch H
• Material: Bright Dipped Cast High Copper Alloy Body
• Hardware: Durium Silicon Bronze
• Approval: UL 467, UL (Canada and US), CSA
• Installation Torque: 480 Lb-Inch
