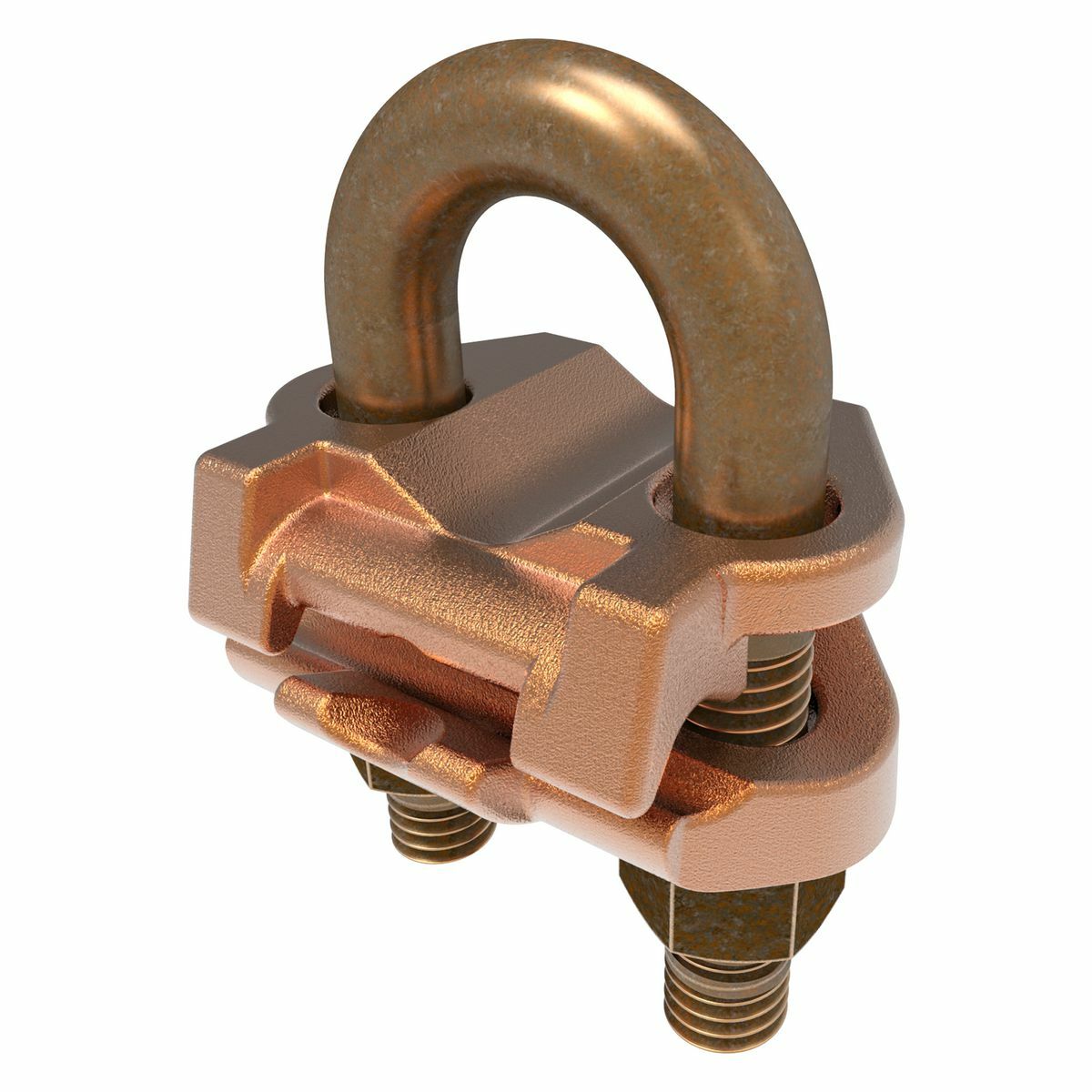

BURNDY GAR1429 Mechanical Grounding Connector 2/0 AWG (Sol) -250 kcmil 1/2-3/4 Pipe 7/8-1 Rod

Product Description

The BURNDY GAR1429 is a mechanical grounding connector designed for effective connections of cables to rods or pipes. This product supports conductor sizes ranging from 2/0 AWG solid copper to 250 kcmil stranded copper. It is suitable for use with half-inch to three-quarter-inch pipes and rods that are seven-eighths to one-inch in size, making it versatile for various grounding applications.

• Suitable for direct burial applications

• UL467 listed for safety and compliance

• Constructed from high copper alloy for improved conductivity

Product Highlights

The GAR1429 features a durable construction that withstands ground or concrete burial without risk of corrosion. This product aids in grounding rods, rebar, and pipe connections.

Product Information

Standard Information

• Catalog Number: GAR1429

• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper

• Application: Joining a range of cables, parallel or at right angles to rod or tube posts

• Ground Rod Size: 7/8 - 1 inches

• Tubing Size: 1/2 - 3/4 inches

• Stud/Bolt Size: 3/8 inches

• Installation Torque: 240 in-lb

• Dimensions: Width 2.375 inches, Height 3 inches, Length 1.811

• Country of Origin: Mexico
