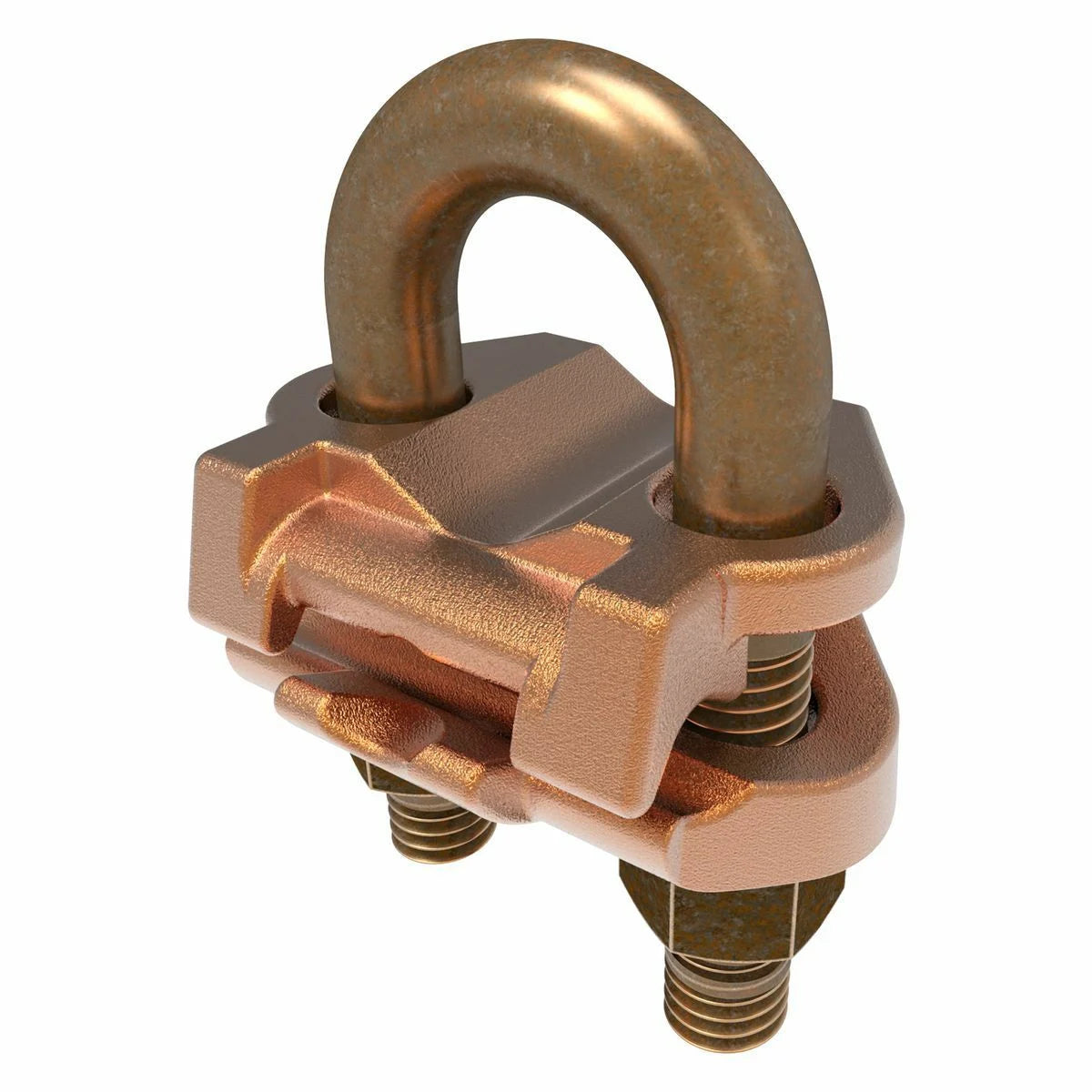

Burndy GAR1426 Mechanical Grounding Connector, Cable to Rod or Pipe, 4 AWG - 2/0 AWG, #7 - #8 Rebar, 7/8 to 1 Rod, 1/2 - 3/4 Pipe

Product Description

The Burndy GAR1426 is a mechanical grounding connector designed to join cables to rods or pipes. This connector is suitable for use with solid and stranded copper conductors ranging from four AWG to two aught AWG. It effectively connects wire to rebar and serves various applications such as direct burial and fence post grounding.

• Direct burial and installation in concrete.
• UL467 listed for safety and performance.
• High copper alloy construction for durability.

Product Highlights

This grounding connector features a robust high copper alloy that provides superior corrosion resistance, making it suitable for various environments. It allows for efficient and safe connections in both parallel and right-angle installations.

Product Information

Standard Information

• Brand: Burndy
• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: GAR1426
• Material: Copper
• Application: Joining a range of cable, parallel or at right angles to rod or tube, direct burial applications
• Ground Rod Size: 7/8 - 1 inch outer diameter
• Tubing Size (IPS): 1/2 - 3/4 inch outer diameter
• Rebar Size: #7 - #8
• Installation Torque: 240 inch-pounds
• Height: 3 inches
• Width: 2-3/8 inches
• Standard: UL467
• UPC: 781810231807
