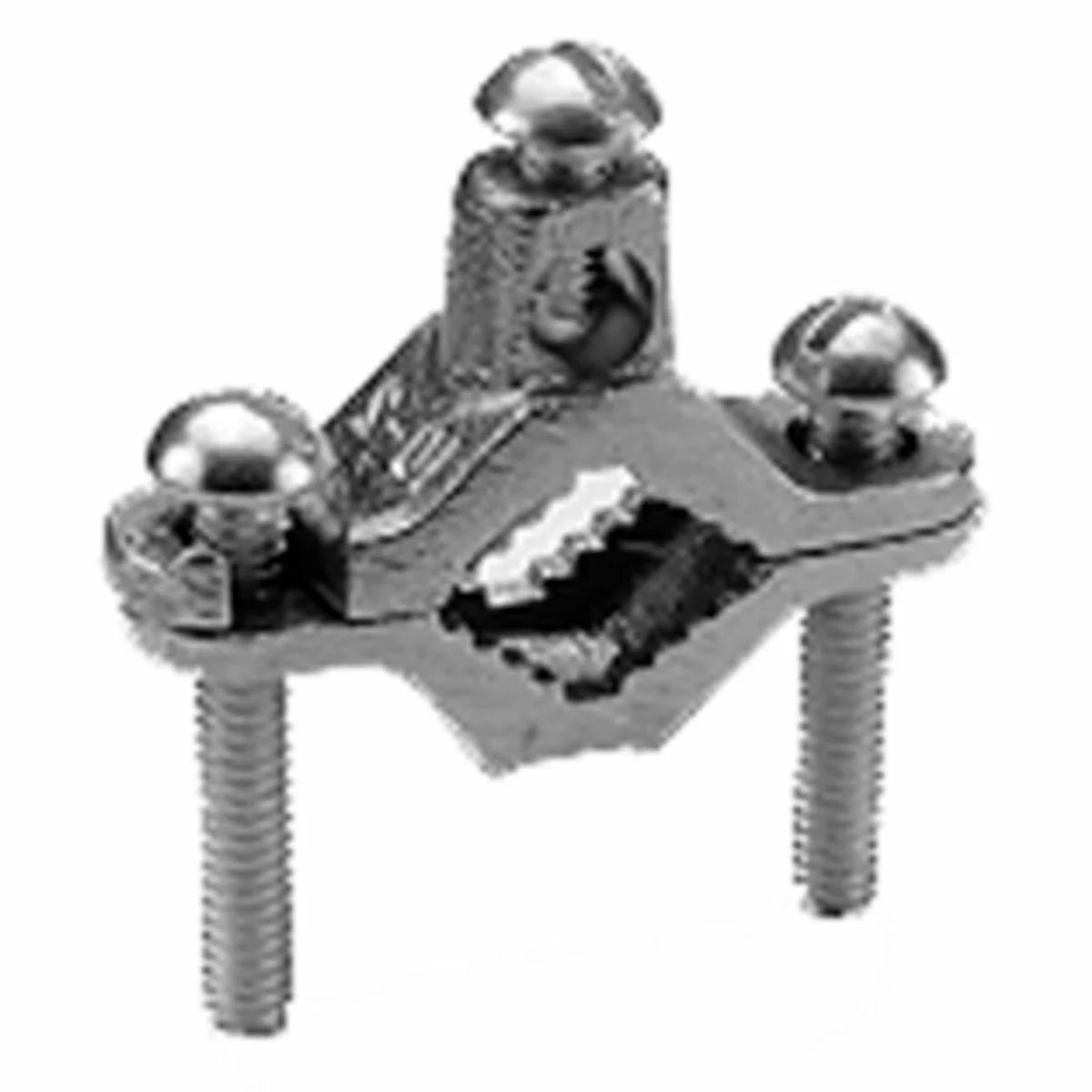

BURNDY C22 Cast Bronze Ground Clamp Cable to Water Pipe or Copper Tube 10 - 2 AWG 1-1/4 - 2

Product Description

The BURNDY C22 Cast Bronze Ground Clamp is designed for connecting bare wire to water pipes or copper tubes. This ground clamp supports wire sizes from ten to two AWG. It accommodates water pipe sizes ranging from one and one-quarter to two inches.

• For bare wire connections
• Suitable for ground conductors
• Includes zinc-plated steel hardware

Product Highlights

This clamp features a bronze alloy construction for durability and effective electrical connections.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• UPC: 781810142318

Technical Specifications

• Catalog Number: C22
• Application: For bare wire, connecting grounding conductor to water pipe or copper tube
• Material: Bronze alloy
• Special Features: For connecting grounding conductor to water pipe, supplied with zinc plated steel hardware
• Water Pipe Size: 1-1/4 - 2 inches
• Installation Torque: 50 inch-pounds
• Dimensions: Length 3.63 inches, width 0.75 inches, height 2.38 inches
• Standard: UL467
• Item Type: Ground clamp
• Country of Origin: India
