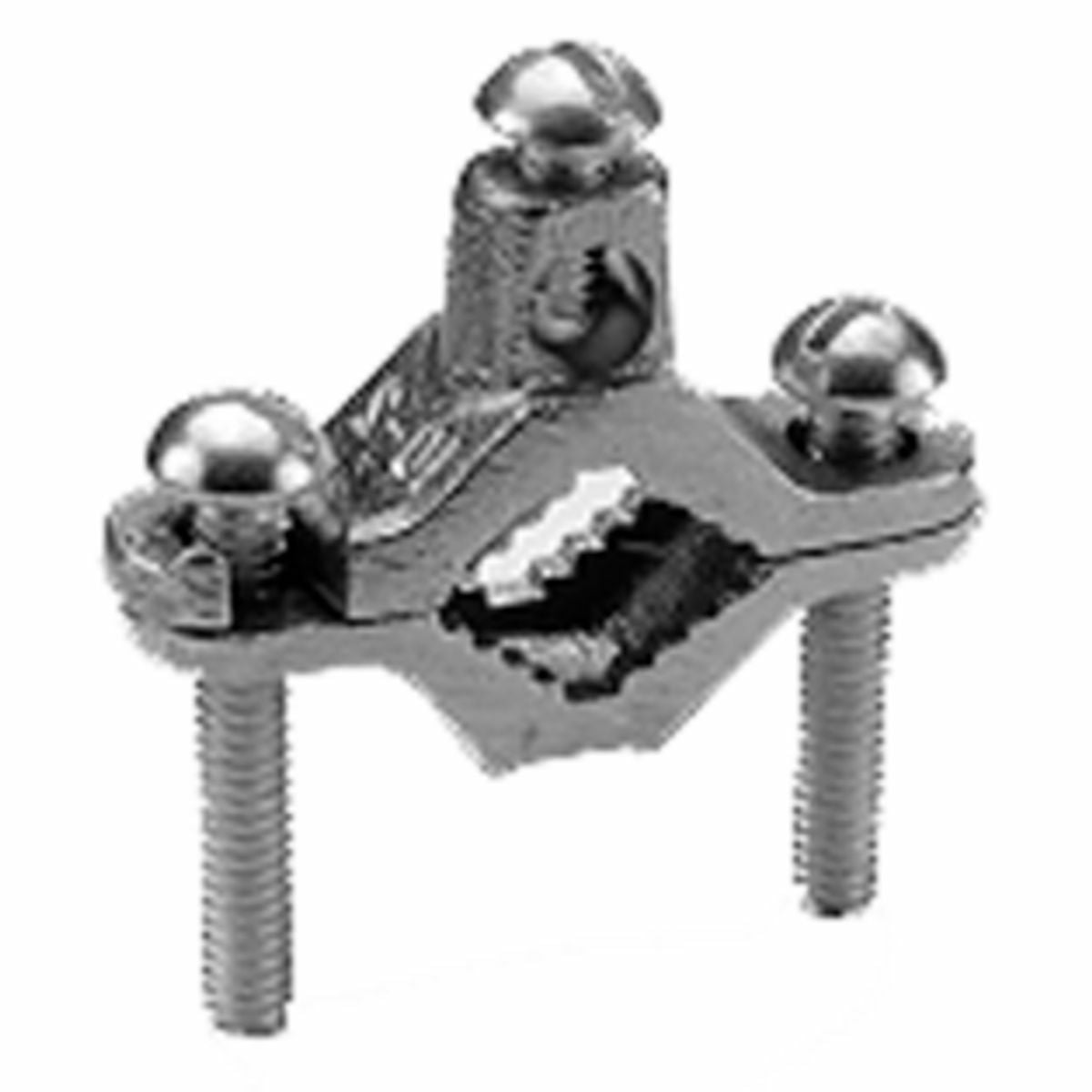

BURNDY C11N Cast Bronze Ground Clamp, Cable to Water Pipe or Copper Tube, 10 - 2 AWG, 1/2 - 1 Water Pipe, 50 in-lb

Product Description

The BURNDY C11N is a cast bronze ground clamp designed to connect a grounding conductor to water pipes or copper tubes. This product supports wire sizes from ten to two American Wire Gauge (AWG) and fits water pipes ranging from half an inch to one inch in diameter. Ideal for use in various electrical installations, this clamp is suitable for securing grounding connections efficiently.

• Material: Bronze Alloy
• Installation Torque: 50 inch-pounds
• UL467 certified

Product Highlights

The BURNDY C11N features a reliable design for establishing grounding connections in compliance with safety standards.

Product Information

Standard Information

• Catalog Number: C11N
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Application: For Bare Wire, Connecting Grounding Conductor To Water Pipe Or Copper Tube
• Material: Bronze Alloy
• Standard: UL467
• Water Pipe Size: 3/8 - 1 inch
• Length: 2.25 inches
• Cross Flats: 0.63 inches
• Width: 0.63 inches
• Height: 1.81 inches
