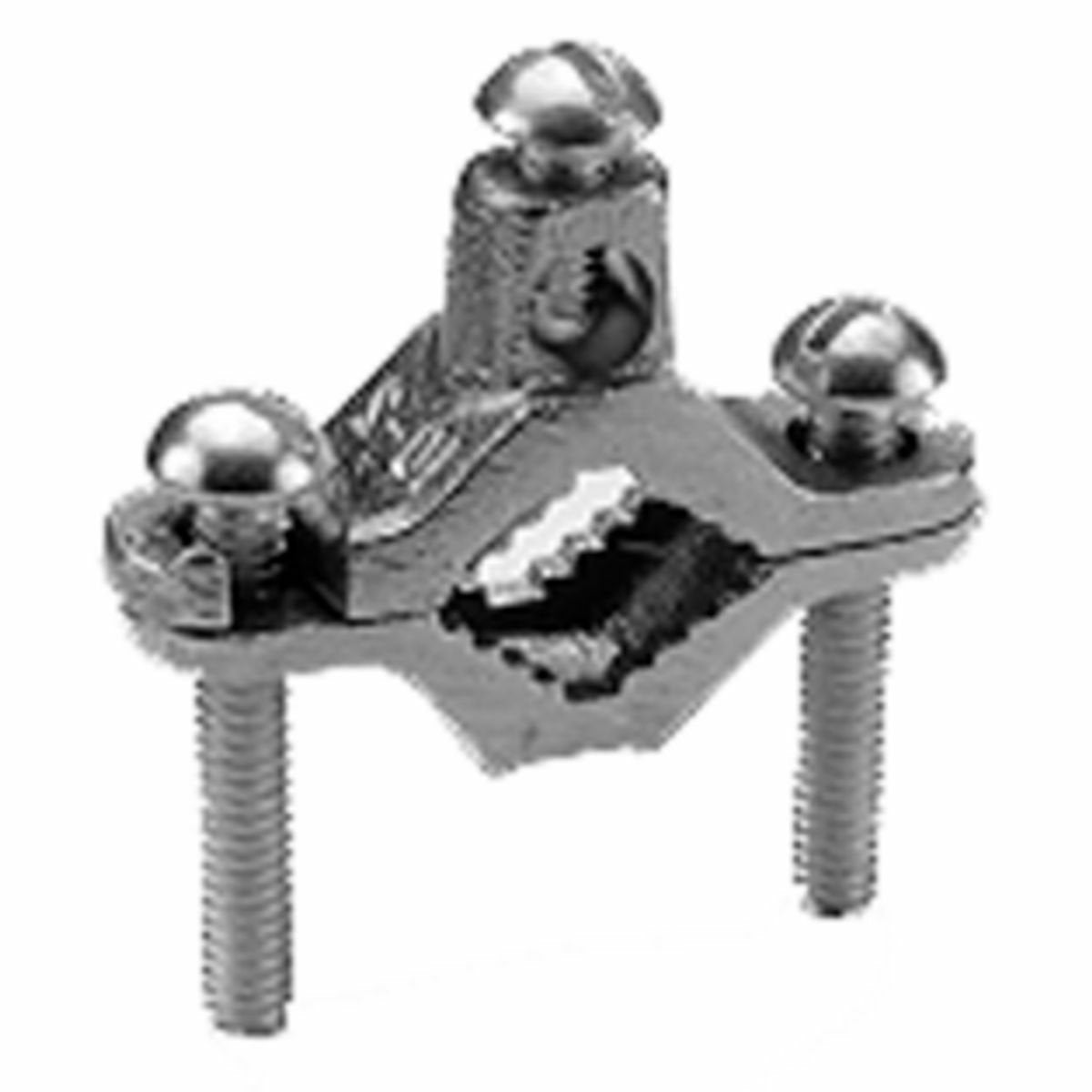

Burndy C11D Cast Bronze Ground Clamp Cable to Water Pipe or Copper Tube 10 - 2 AWG

Product Description

The Burndy C11D is a robust cast bronze ground clamp designed for connecting grounding conductors to water pipes or copper tubes. This clamp is suitable for wire sizes ranging from ten to two AWG and is compatible with water pipes measuring one half to one inch in diameter as well as rebar sizes from four to eight. It is ideal for use in direct burial applications.

• Material: Bronze Alloy
• UL467 listed for direct burial in earth and concrete
• Installation torque of fifty inch-pounds

Product Highlights

The C11D ground clamp features a reliable design for grounding applications and ensures secure connections for electrical systems.

Product Information

Standard Information

• Catalog Number: C11D
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Application: For bare wire connecting grounding conductor to water pipe or copper tube.
• Material: Bronze Alloy
• Country of Origin: India
• Special Features: Includes silicon bronze hardware and is suitable for burial in concrete.
• Rebar Size: #4 to #8
• Water Pipe Size: 1/2 to 1 inch
• Installation Torque: 50 inch-pounds
• Dimensions: Length - 2.25 inches, Width - 0.63 inches, Height - 1.81 inches
