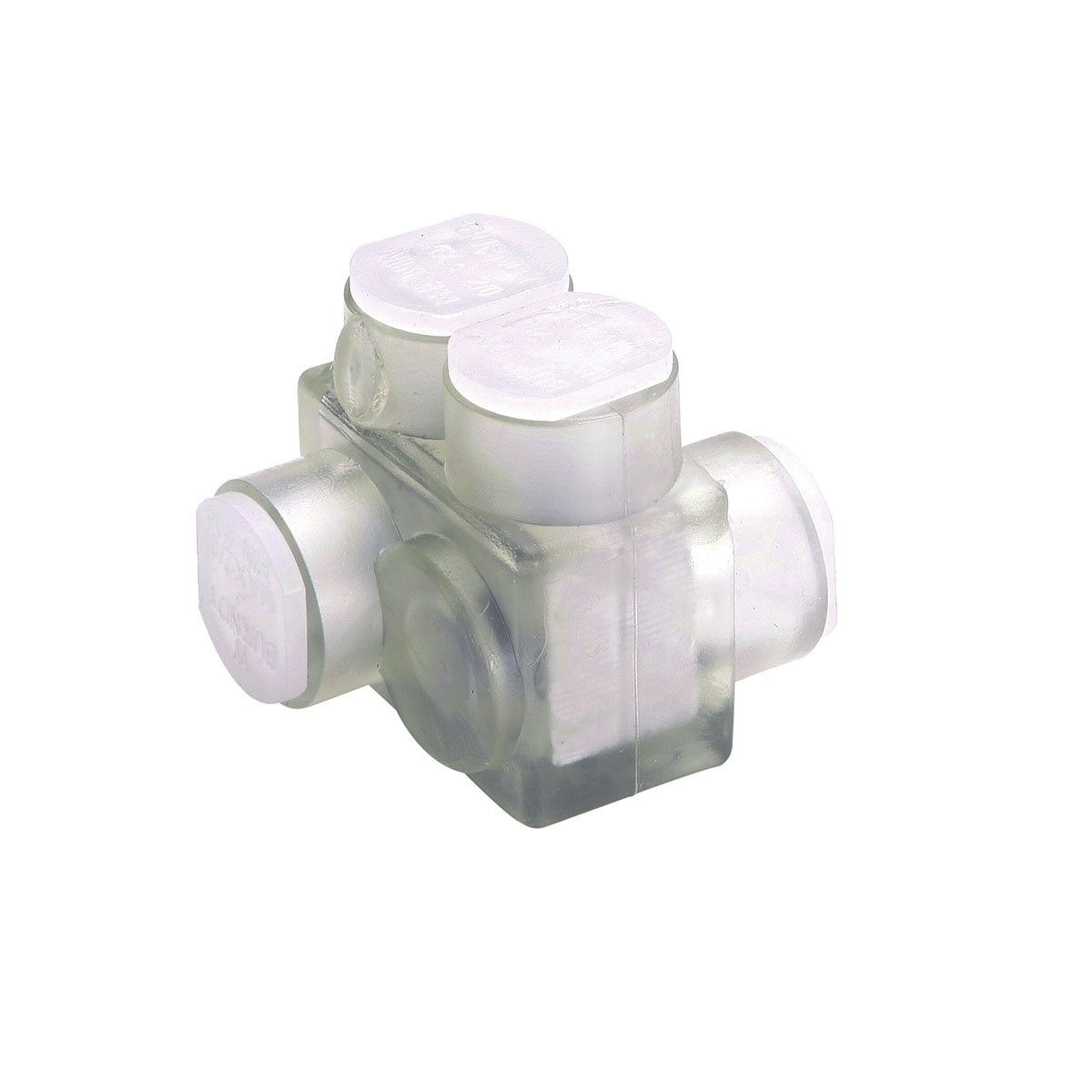

Burndy BITO-250 Bito250 250-10, Offset, Unitap

Brand: BURNDY
SKU: BITO-250
Availability: In Stock

Ships same day if ordered by 12 pm
$61.20
$61.20
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The BURNDY BITO-250 multiple tap connector has a voltage rating of 600 V and two ports. Constructed with aluminum/copper conductors and a clear plastisol coated 6061-T6 aluminum body, it accommodates minimum conductor sizes of 8 AWG (Aluminum) and 10 AWG Stranded (Copper), and maximum conductor sizes of 250 KCMIL. It measures 2.03 Inch L x 2.64 Inch W x 2.13 Inch H.

  • Multiple Tap Connector
  • Aluminum/Copper Conductor Material
  • UL 486B, CSA Approval

Product Highlights

This multiple tap connector is suitable for use with aluminum and copper conductors, and is UL 486B and CSA approved.

Product Information

Standard Information

  • Brand: BURNDY
  • Manufacturer Part Number: BITO-250
  • Country of Origin: United States of America
Technical Specifications
Voltage Rating
600 V
Number of Ports
2
Cable Entry
Single Side or Double Side
Conductor Material
Aluminum/Copper
Minimum Conductor Size
8 AWG (Aluminum), 10 AWG Stranded (Copper)
Maximum Conductor Size
250 KCMIL (Aluminum), 250 KCMIL Stranded (Copper)
Body Material
Clear Plastisol Coated 6061-T6 Aluminum
Approval
UL 486B, CSA
RoHS Compliant
True
Temperature Rating
90 Deg C
Hex Key Size
5/16 Inch
Number of Screw
2
Manufacturer Name
Burndy
Manufacturer Part Number
BITO-250
Insulation Material
Plastisol
Strip Length
1-3/16 Inch
Material
6061-T6 Aluminum Alloy
Item Name
Multi-Tap Connector
Installation Torque
275 lb-Inch
Sub Brand
Unitap™
Hex Size
0.3125
Conductor Size
10 AWG-250 KCMIL
Brand Name
Burndy
Standards
UL 468A/B Listed, CSA Certified, RoHS Compliant
Type
Insulated, Offset
Application
For Indoor Use Only, Copper Or Stranded Aluminum
Catalog Number
BITO250
Connector Type
Multi Tap
EU RoHS Indicator
Yes
Insulation
Y
Material - Hardware
Aluminum
Physical Attribute - Number of Screws
2
Physical Attribute - Screw Type
Allen
Plated
N
Plating Type
Unplated
Trade Name
UNITAP™
Operating Voltage
600 V
Voltage - Maximum
600 V
Conductor - AL Str Size Range
10 AWG - 250 kcmil
Conductor - Copper Str Size
10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
Conductor - Copper Str Size Range
10 AWG - 250 kcmil
Conductor Type
AL C Str-Size CU C Str-Size
Certification - CSA Approved
Yes
Certification - cULus
No
Certification - ETL
No
Certification - UL Listed Direct Burial
No
Certification - UL Recognized
No
Industry Standard(s)
UL 486A-486B
Standards - Industry Standards Met
UL 486A-486B
Standards - RoHS Compliance Status
CM
UL Listed
Yes
Series
UNITAP, BIT
Connection Type
Screw
Finish
Tin-Plated
Standard
UL 486A-486B
Use With
Aluminum Conductors, Copper Conductors
No. of Ports
2
ECCN
EAR99
