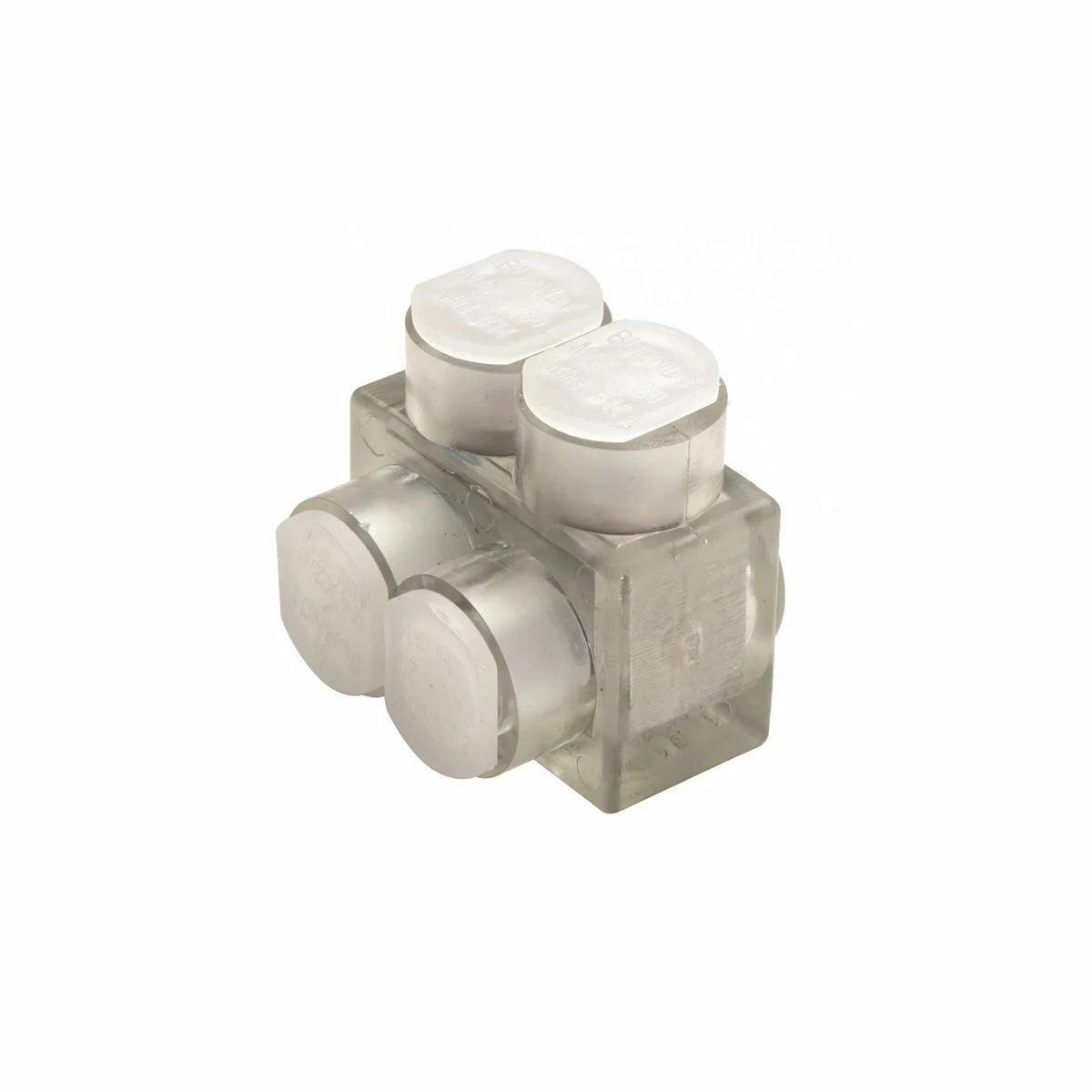

BURNDY BIT600 Aluminum Multiple Tap Connector, Clear Insulated, 2 Port, 1 Sided Entry, 4 AWG-600 kcmil, Al/Cu Rated

Product Description

The BURNDY BIT600 is an aluminum multiple tap connector designed for effective wire terminations. It features a clear insulated body suitable for 4 AWG to 600 KCMIL conductors. This connector is rated for use with copper or stranded aluminum and is made in the United States.

• Aluminum construction with clear plastisol cover
• 2-port design with 1-sided entry for easy installation
• Meets UL 486A-486B standards for safe usage

Product Highlights

This connector ensures visual confirmation that the conductor is properly inserted. It eliminates the need for taping, thus reducing installation time and costs.

Product Information

Standard Information

• Catalog Number: BIT600
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Aluminum
• Country of Origin: United States
• Temperature Rating: 90 Degrees C
• Application: For indoor use only, suitable for copper or stranded aluminum
• Special Features: Clear plastisol cover allows for visual confirmation, oxide inhibitor pre-installed, wire entry options, torque specification of 375 IN-LB, hex size of 3/8 IN, wire strip length of 1-1/8 IN, number of ports: 2
• UPC: 781810225257
• GTIN: 00781810225257
