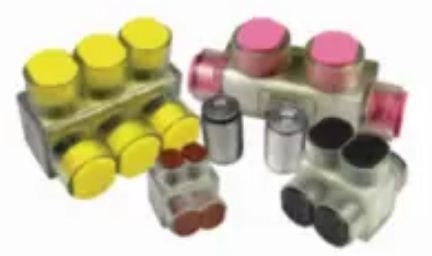

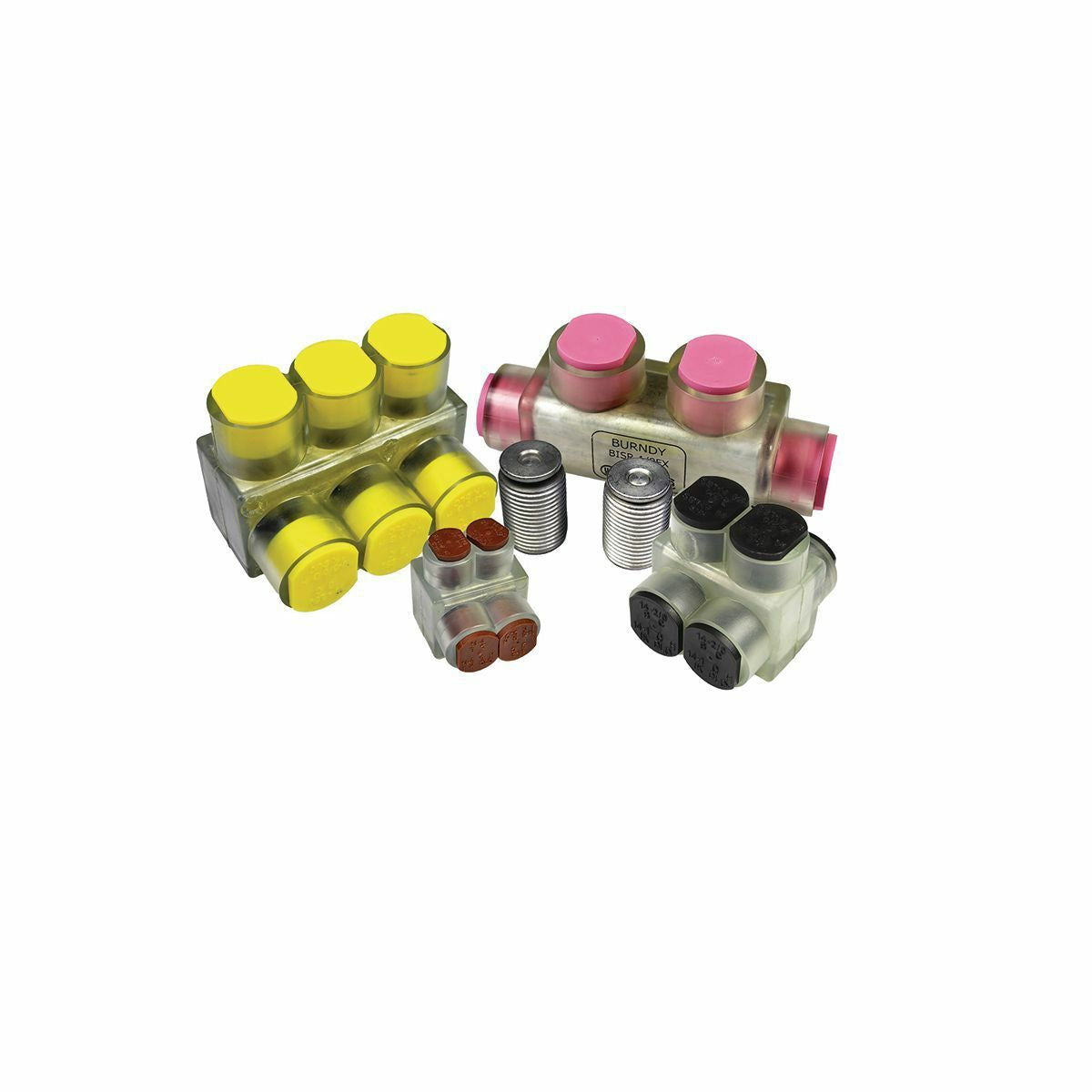

BURNDY BIT4FX Aluminum UNITAP, Tap - Same Side Entry, #14-#4 Class B & C, #14-#6 Class G,H,I,K, DLO, 2 PORT

Product Description

The BURNDY BIT4FX is a mechanical multiple tap connector designed for applications requiring reliable electrical connections. This tap connector features a same side entry for easy installation and fits conductor sizes #14 to #4 for Class B and C, and #14 to #6 for Class G, H, I, K, and DLO. It is suitable for various electrical applications.

• Designed for clear insulated multiple tap connections
• Constructed from aluminum with a clear plastisol cover
• Compatible with a wide range of conductor sizes

Product Highlights

This tap connector is known for its efficiency in saving installation time and reducing costs due to its innovative design. The oxide inhibitor is pre-installed to maintain clean connections.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: United States

Technical Specifications

• Catalog Number: BIT4FX
• Material: Aluminum
• Standard: UL 486A-486B
• Temperature Rating: 135 Degrees C
• Application: Clear Insulated Multiple Tap Connectors
• Special Features: Features clear plastisol covered AL6061-T6 aluminum body
• Cross Reference Products: PBTD-2-4-F, ITG-6
