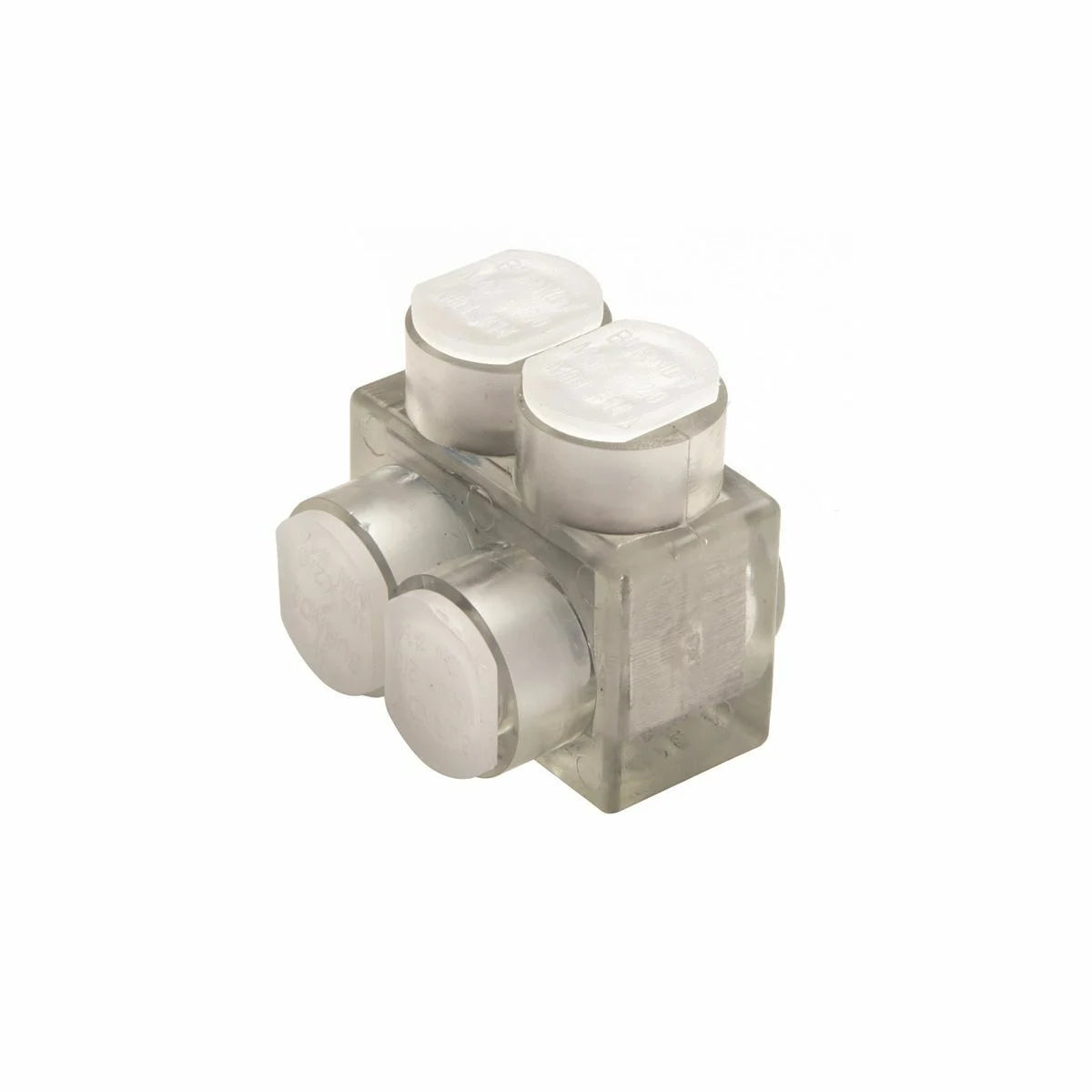

BURNDY BIT4 Aluminum Multiple Tap Connector Clear Insulated 2 Port 14-4 AWG

Product Description

The BURNDY BIT4 is an aluminum multiple tap connector designed for reliable electrical connections. It is rated for use with both copper and stranded aluminum wire, making it versatile for various applications. This connector supports wire sizes from fourteen to four AWG.

• Clear Plastisol coating allows visual confirmation of wire insertion.
• Built-in oxide inhibitor prevents moisture and contaminants.
• Suitable for indoor use only.

Product Highlights

BURNDY BIT4 connectors are engineered for durability and efficiency, making installation easier and reducing labor costs.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: BIT4
• Application: For indoor use only, copper or stranded aluminum
• Material: Aluminum
• Conductor Size Range: 14 - 4 AWG
• Number of Ports: 2
• Torque: 45 IN-LB
• Insulation Type: Plastisol
• Temperature Rating: 90 Degrees C
