BURNDY BIT350FX Aluminum UNITAP, Tap - Same Side Entry, #10-350 Class B & C, #10-250 Class G,H,I,K, DLO, 2 PORT

Brand: BURNDY
SKU: BIT350FX
Availability: In Stock

Ships same day if ordered by 12 pm
$67.31
$67.31
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

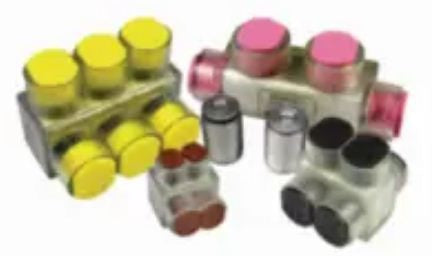

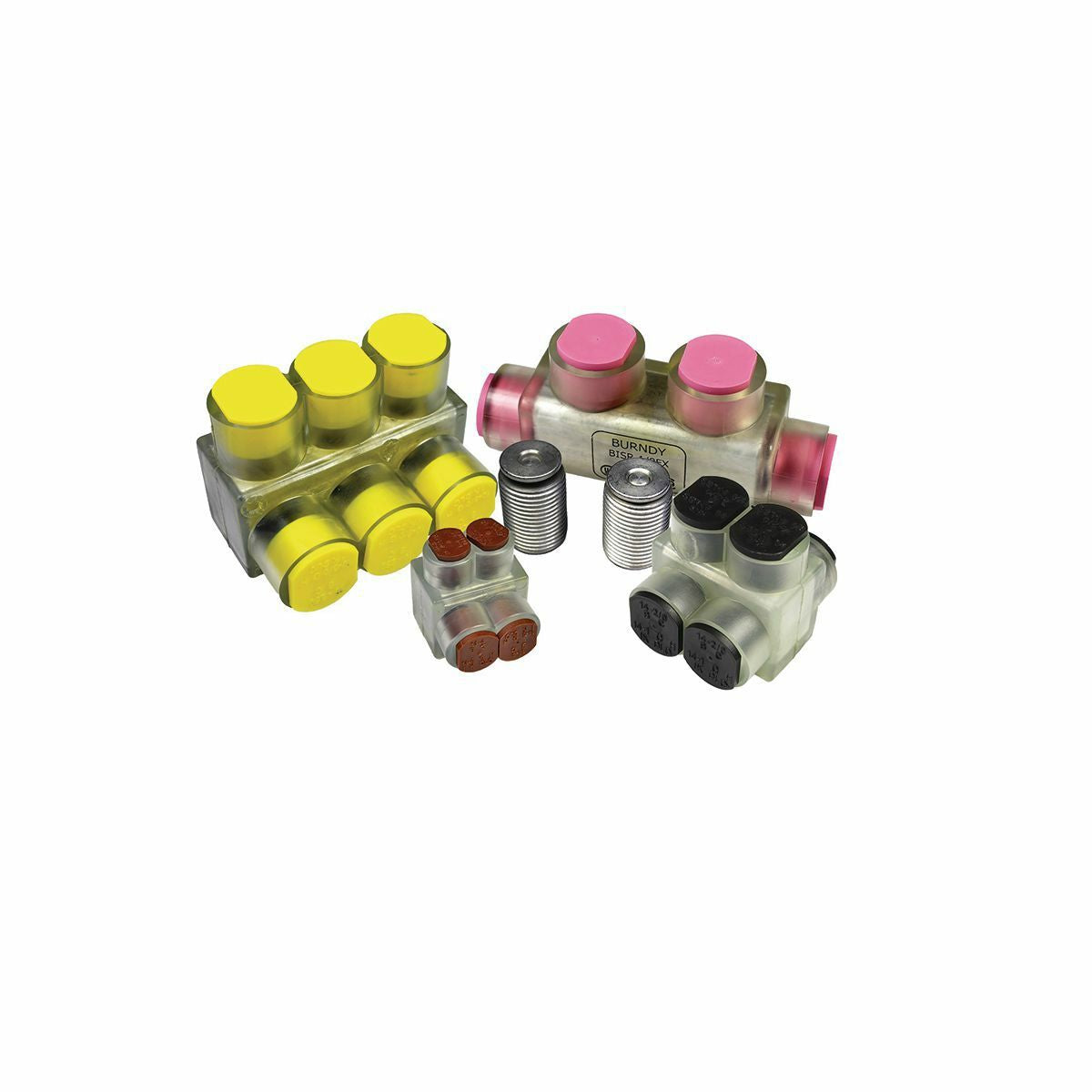

BURNDY BIT350FX is an aluminum UNITAP designed for multiple tap connections on the same side. This connector is suitable for various conductor sizes and classes, making it versatile for different applications.

  • Compatible with #10-350 Class B and C, #10-250 Class G, H, I, K, and DLO.
  • Constructed from clear plastisol covered AL6061-T6 aluminum.
  • Meets UL 486A-486B standards.

Product Highlights

This tap connector simplifies wiring by eliminating the need for additional taping. It includes a pre-installed oxide inhibitor that protects connections from moisture and contaminants.

Product Information

Standard Information

  • Catalog Number: BIT350FX
  • Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

  • Material: Aluminum
  • Application: Clear Insulated Multiple Tap Connectors
  • Temperature Rating: 135 Degrees C
  • Cross Reference Products: PBTS-2-350-F
  • Special Features: Features clear plastisol cover, time-saving design, oxide inhibitor pre-installed.
  • Country of Origin: United States
  • Made in USA: Yes
  • Standard: UL 486A-486B
