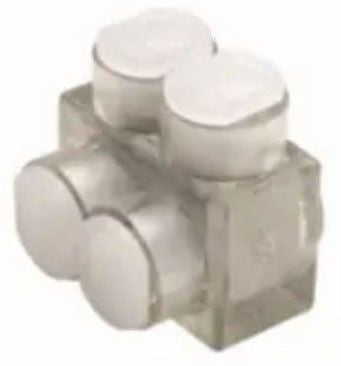

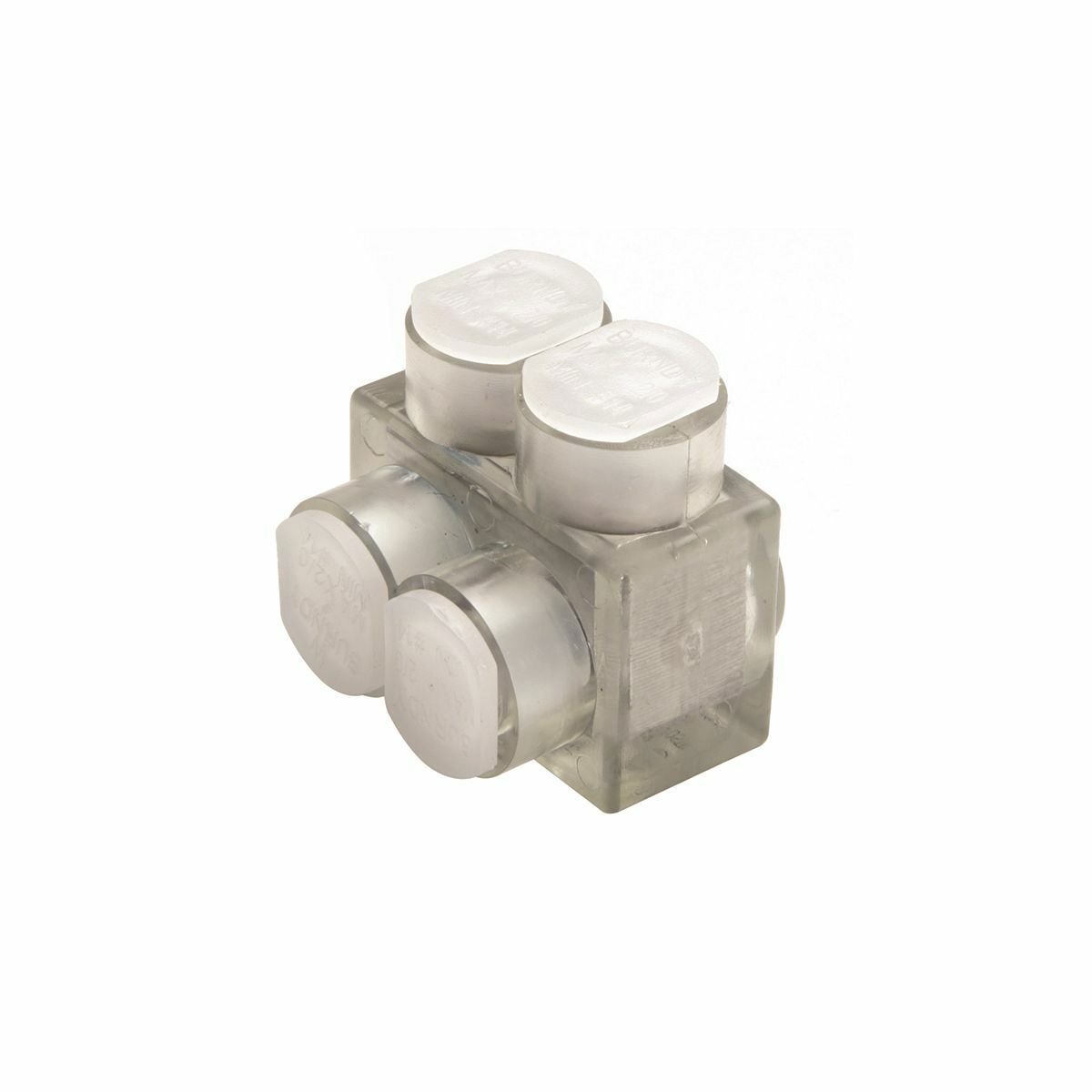

Burndy BIT250 Aluminum Multiple Tap Connector 2 Port 10 AWG-250 KCMIL

Product Description

The Burndy BIT250 is an aluminum multiple tap connector designed for effective wire termination. This connector is suitable for indoor use with copper or stranded aluminum conductors. It features a clear insulated design and can accommodate range-taking from ten AWG to two hundred fifty KCMIL. The connector's unique design eliminates the need for tape while providing visual confirmation that the conductor is properly inserted.

• Clear plastisol covered aluminum body
• Rated for 90 degrees Celsius
• Two ports with one sided entry

Product Highlights

The BIT250 connector is built for durability and longevity, making it ideal for various electrical applications. With a torque rating of two hundred seventy-five inch-pounds, this connector ensures secure connections.

Product Information

Standard Information

• Catalog Number: BIT250
• Brand: Burndy

Technical Specifications

• Construction Material: Aluminum
• Application: For Indoor Use Only, Copper or Stranded Aluminum
• Temperature Rating: 90 degrees Celsius
• Insulation Type: Plastisol
• Wire Strip Length: 1-3/16 inches
• Hex Size: 5/16 inches
• Number of Ports: 2
• Compliance Standards: UL 486A-486B
