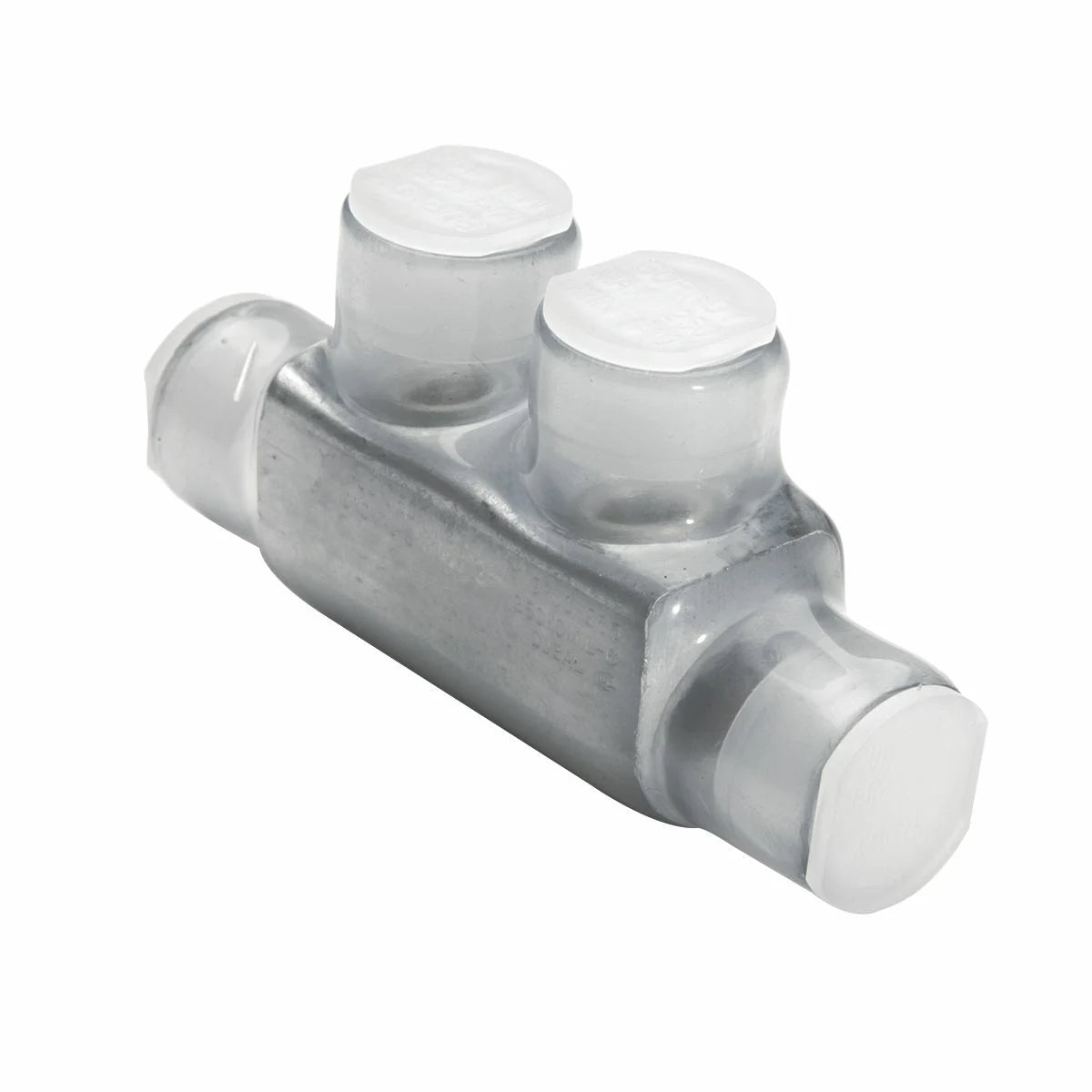

BURNDY BISR500 Aluminum In-Line Splice 6 AWG-500 kcmil

Product Description

The BURNDY BISR500 is an aluminum in-line splice designed for connecting conductors ranging from six AWG to five hundred kcmil. This splice is suitable for various indoor applications, ensuring a secure and reliable connection for stranded copper or stranded aluminum wires. The BISR500 meets the UL 486B standard, making it ideal for use in electrical installations.

• Compatible with stranded copper or aluminum wire.
• Features a clear plastisol cover for visual confirmation of proper conductor insertion.
• Pre-installed oxide inhibitor prevents moisture and contaminants from compromising the connection.

Product Highlights

This product is designed to save time and reduce installation costs, providing an efficient solution for electrical connections.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: BISR500
• Material: Aluminum
• Application: For Indoor Use Only
• Conductor Size (run - Range): Six AWG to five hundred kcmil
• Wire Strip Length: One and a half inches
• Temperature Rating: Ninety degrees Celsius
• Number of Ports: Two
• Torque: Three hundred seventy-five inch-pounds
