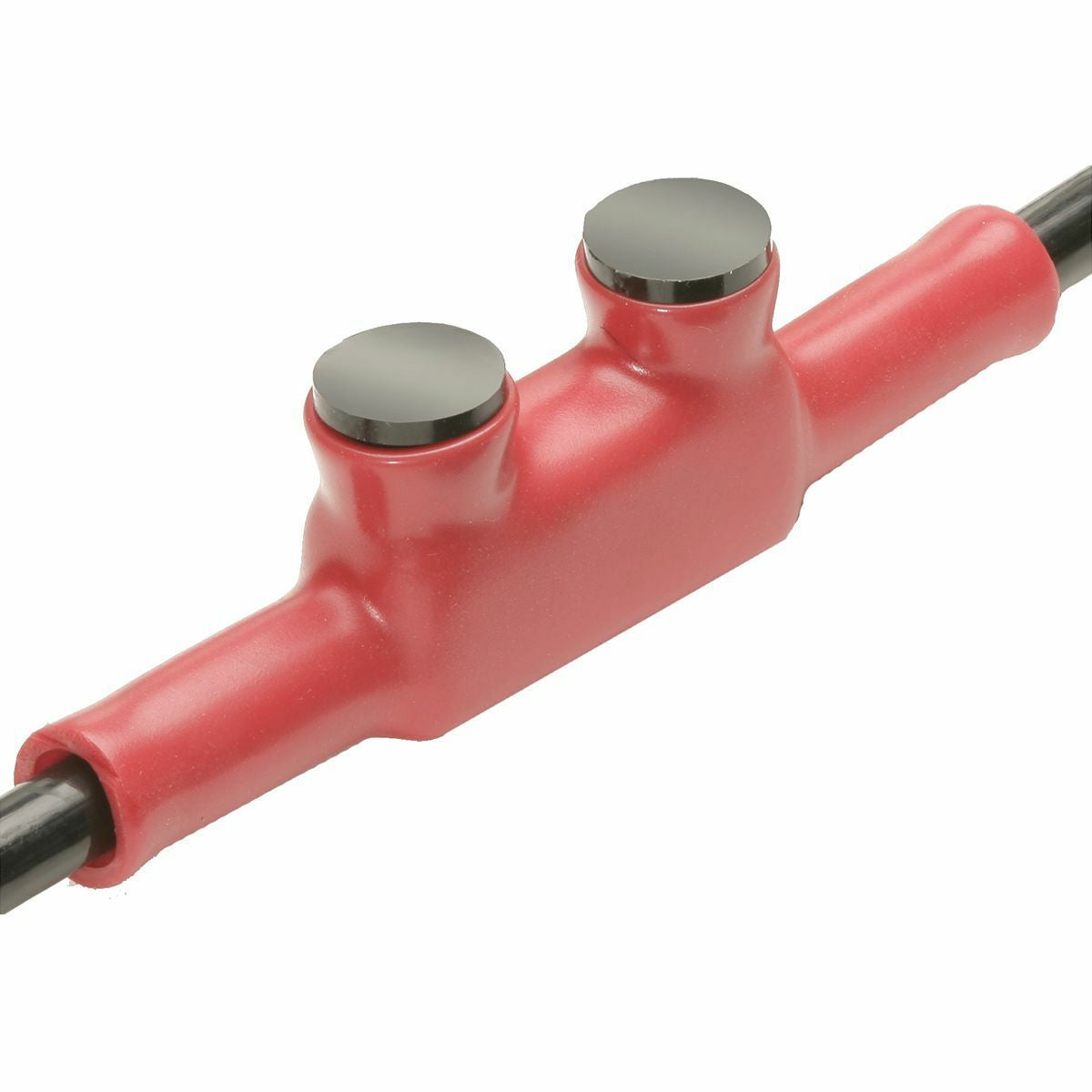

BURNDY BISR4DB In-Line Splice/Reducer, 6-4 AWG, Al/Cu Rated

Product Description

The BURNDY BISR4DB is an in-line splice/reducer designed for 6 to 4 AWG aluminum and copper conductors. It is approved for outdoor direct burial applications. The unique plastisol material forms a solid, weather-tight connection, ensuring reliable performance. This connector is UL 486D listed, which means it can handle strong environmental conditions and is suitable for various installation scenarios.

• Designed for direct burial applications
• Compatible with aluminum and copper conductors
• UL listed for durability and safety

Product Highlights

This splice/reducer is built to resist moisture and contaminants. Its innovative design reduces the need for multiple connectors and simplifies installation.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: BISR4DB
• Application: For outside direct burial
• Material: Aluminum
• UL Standards: UL 486A-486B
• Temperature Rating: 90 Degrees C
• Voltage Rating: 600V
• Number of Ports: 2
• Conductor Size Range: 6-4 AWG
• Wire Strip Length: 7/8 inches
• Torque Required: 50 IN-LB
