BURNDY BISR3/0DB In-Line Splice/Reducer 2 Port 1/0-3/0 AWG Al/Cu Rated

Product Description

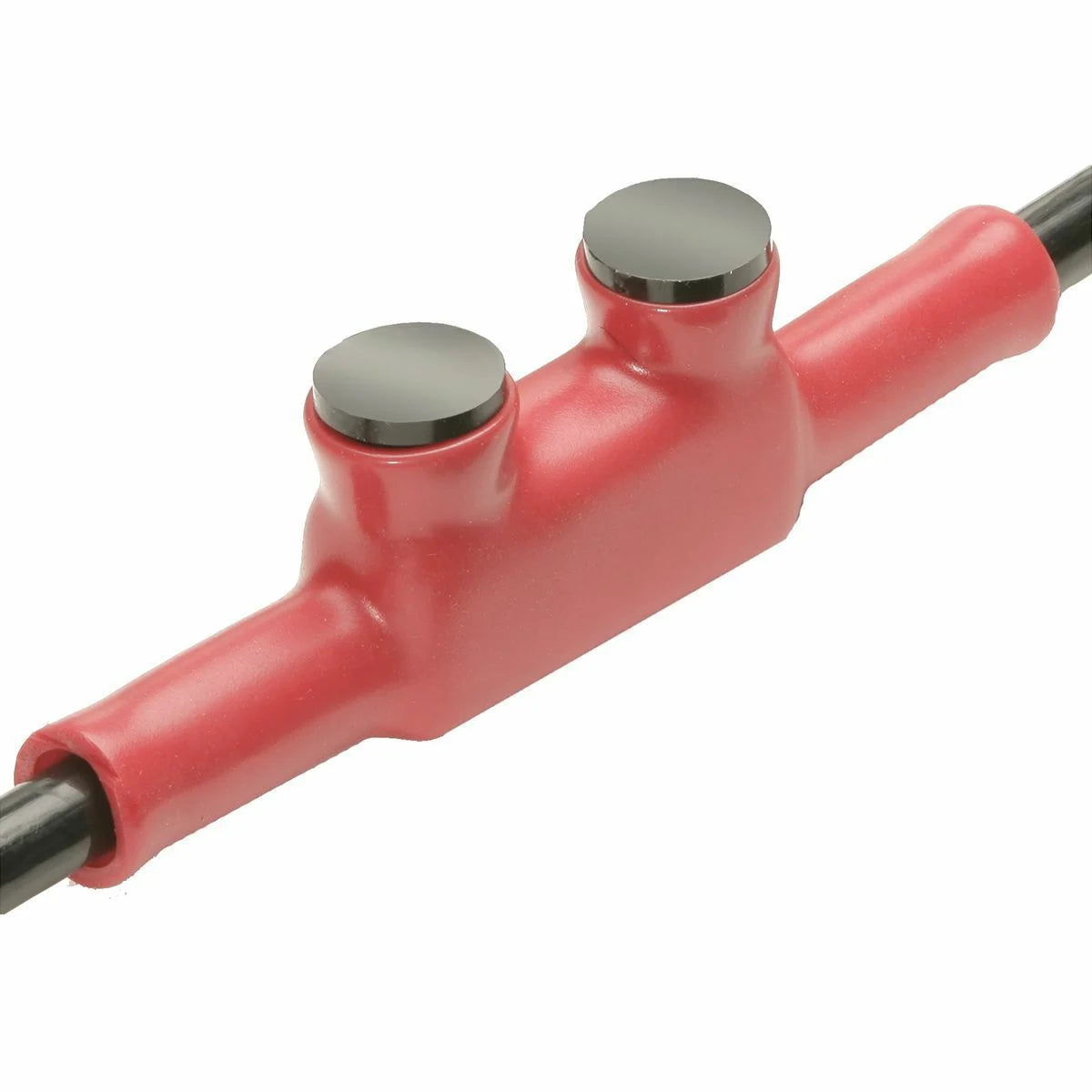

The BURNDY BISR3/0DB is an in-line splice/reducer designed for use with aluminum and copper conductors. This product accommodates wire sizes from one zero to three zero AWG. It is built with a specialized plastisol material that provides a durable, weather-tight connection suitable for direct burial applications.

• UL 486D listed for direct burial
• Two-port design for high versatility
• Built-in oxide inhibitor to prevent moisture ingress

Product Highlights

This splice/reducer is efficient for reducing connectors needed in inventory with its range-taking capability.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: BISR3/0DB
• Application: For Direct Burial
• Material: Aluminum
• Made in USA: Yes
• Temperature Rating: 90 Degrees C
• Special Features: Designed for direct burial applications, UL 486D listed, features a rugged weather-tight connection, dual-rated for copper and aluminum, hex size: 3/16 inches, wire strip length: 1-3/32 inches.
• Standard: UL 486A-486B
• UPC: 781810288030
• GTIN: 00781810288030
• Item Type: BISR
