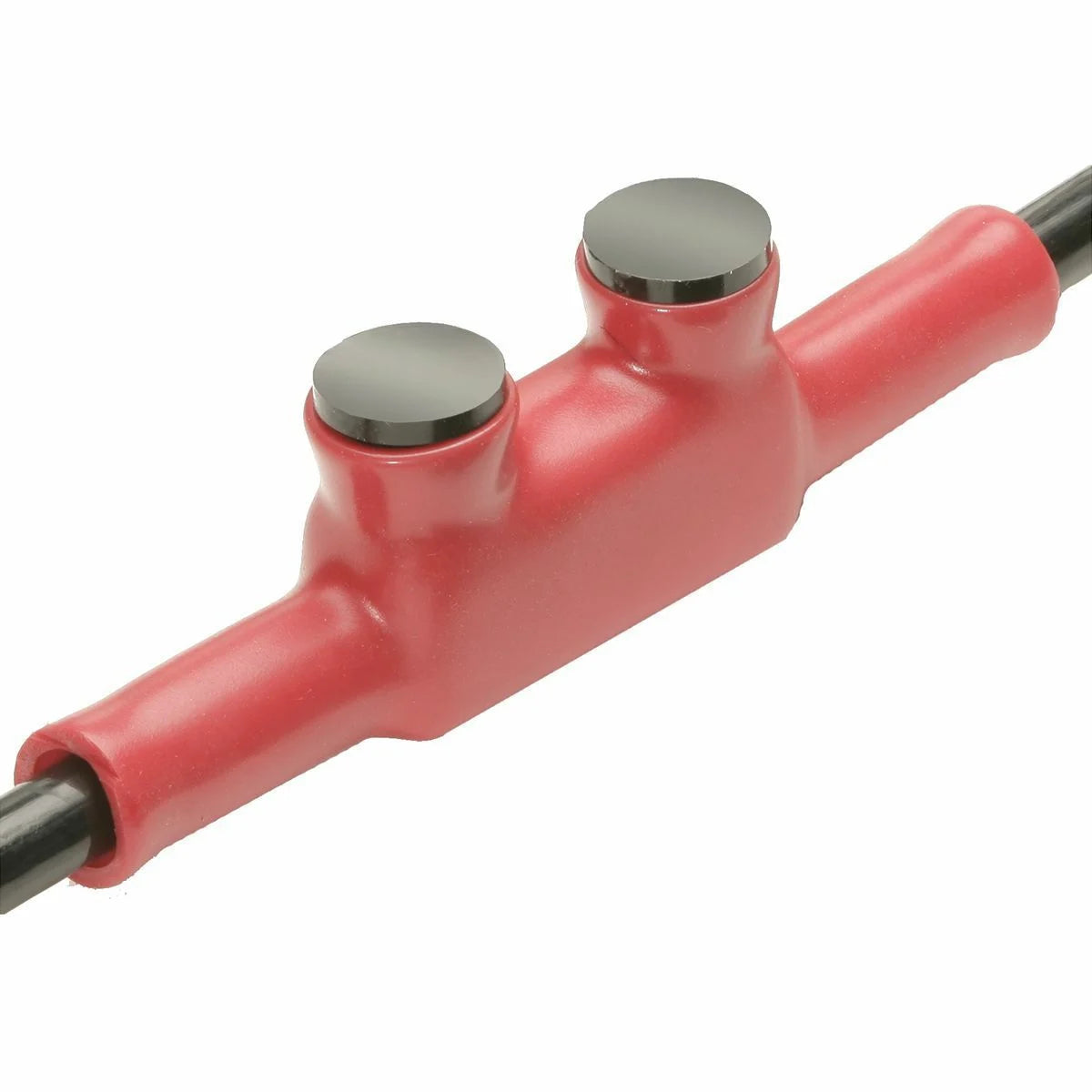

BURNDY BISR250DB In-Line Splice/Reducer 2 Port 4/0 AWG-250 kcmil

Product Description

The BURNDY BISR250DB is an In-Line Splice/Reducer designed for use with aluminum and copper conductors. This two-port connector accommodates wire sizes ranging from four AWG to two hundred fifty kcmil. It is suitable for outside direct burial applications, providing a robust, weathertight connection.

• Rated for 600 volts and up to ninety degrees Celsius
• Constructed with specialized plastisol for durability
• Includes an oxide inhibitor to enhance performance

Product Highlights

This reducer is essential for effective wire terminations in outdoor environments. It minimizes the need for heat shrink tubing and is UL486D listed for direct burial, ensuring compliance with installation standards.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: United States

Technical Specifications

• Catalog Number: BISR250DB
• Material: Aluminum
• Application: For Outside Direct Burial
• Temperature Rating: 90 Degrees C
• Special Features: Dual-rated, includes oxide inhibitor, designed for direct burial
• Wire Entry: In-Line
• Torque: 360 IN-LB
• Wire Strip Length: 1-5/16 IN
• Hex Size (key): 5/16 IN
