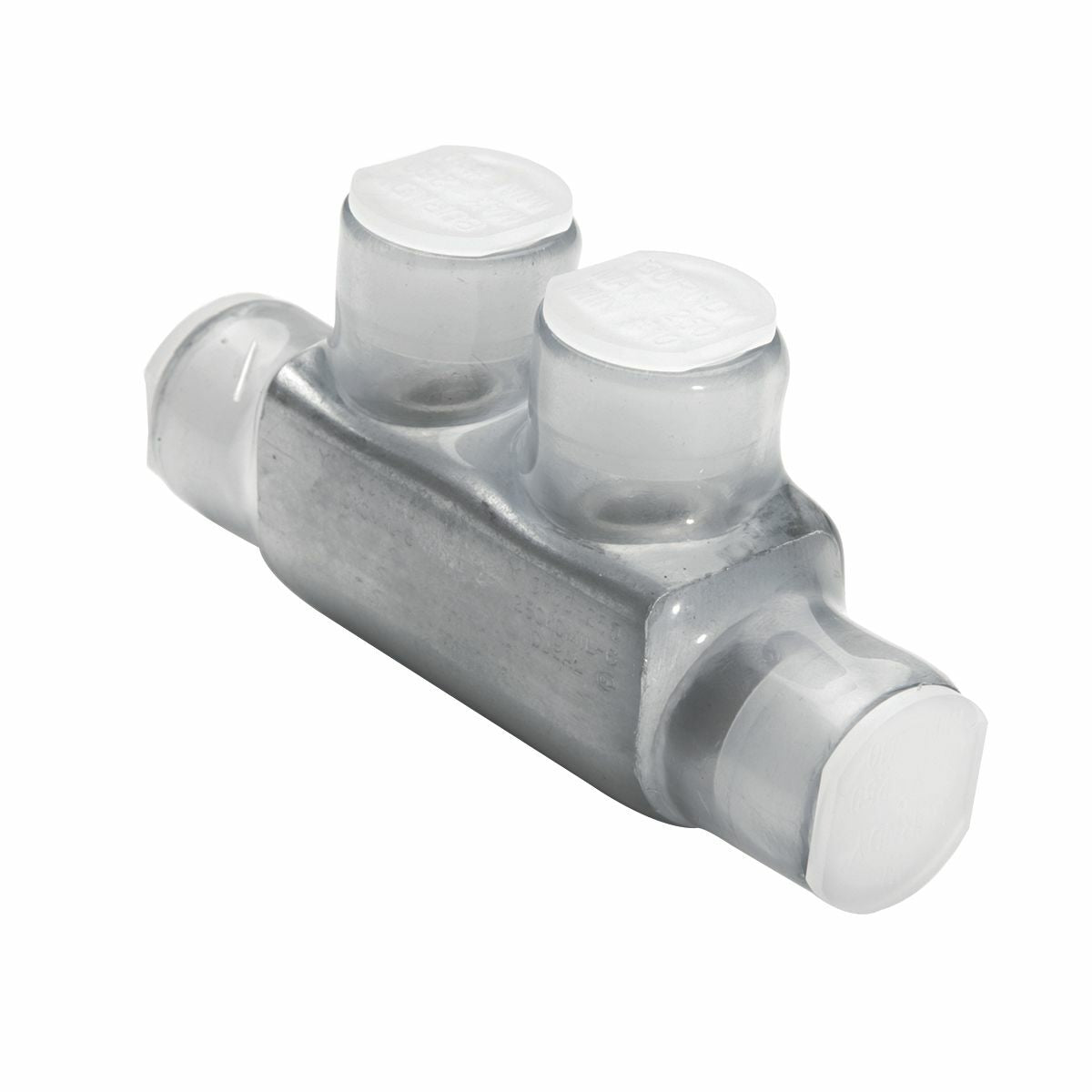

BURNDY BISR250 Aluminum In-Line Splice 10 AWG-250 KCMIL

Product Description

The BURNDY BISR250 Aluminum In-Line Splice is designed for connecting two conductors efficiently. This unit handles conductor sizes from ten AWG up to two hundred fifty KCMIL. It is suitable for both aluminum and copper wires, making it a versatile option for various electrical tasks.

• Easy to use, connects wires quickly
• UL and CSA approved for safety
• Made from durable aluminum with clear plastisol insulation

Product Highlights

This splice allows a strong and reliable connection for indoor electrical applications. The clear plastisol cover ensures a visible confirmation of the conductor's insertion.

Product Information

Standard Information

• Catalog Number: BISR250
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Aluminum
• Approval: UL, CSA
• Temperature Rating: 90 Degrees Celsius
• Voltage Rating: 600 Volts
• Conductor Size Range: 10 AWG - 250 KCMIL
• Body Material: 6061-T6 Aluminum
• Number of Ports: 2
• Hex Size: 5/16 Inch
