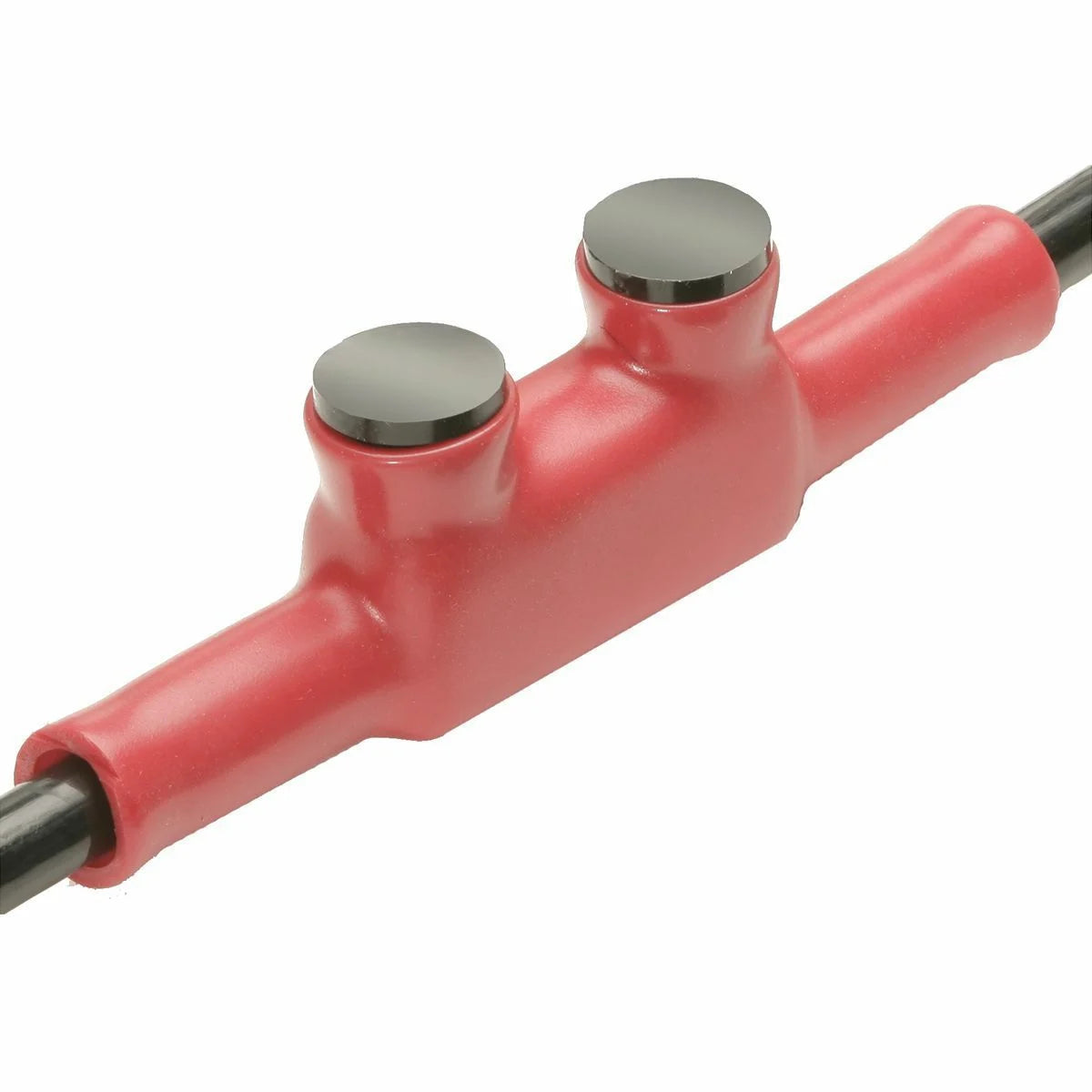

Burndy BISR1DB In-Line Splice/Reducer 2 Port 2-1 AWG Al/Cu Rated

Product Description

The Burndy BISR1DB is an in-line splice and reducer designed for use with two-port connections in specific applications. This product is suitable for direct burial and supports wires sized two to one AWG. The aluminum construction provides durability, while the specialized plastisol coating ensures a weather-tight connection.

• Designed for outside direct burial applications
• Rated for both aluminum and copper use
• Includes an oxide inhibitor to prevent moisture intrusion

Product Highlights

This splice/reducer provides a robust solution for electrical connections in harsh environments, meeting UL 486D standards.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Made in USA: Yes

Technical Specifications

• Catalog Number: BISR1DB
• Application: For Outside Direct Burial
• Material: Aluminum
• Special Features: Designed for direct burial, UL486D listed, dual-rated for copper and aluminum, moisture-resistant
• Temperature Rating: 90 Degrees C
• Torque Rating: 130 IN-LB
• Wire Entry: In-Line
• Conductor Size (run - Range): 2 - 1 AWG
• Number of Ports: 2
• Wire Strip Length: 1-3/32 IN
