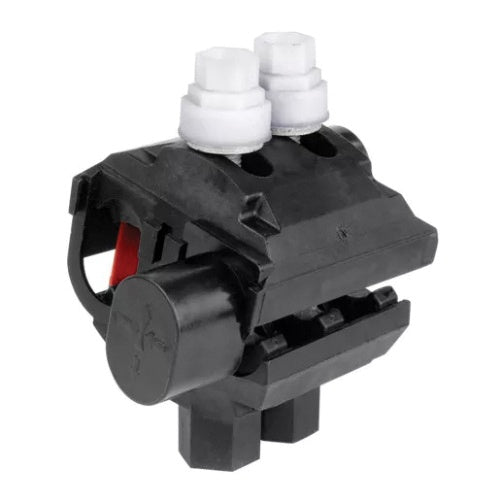

Burndy BIPC5004SC Insulation Piercing Connector 2/0 AWG-500 KCMIL Run 4-4/0 AWG Tap

Product Description

The Burndy BIPC5004SC is an insulation piercing connector specifically designed for copper and aluminum conductors. With a running capacity of two hundred thousand circular mils and tap capabilities for four to four aught, this connector is ideal for various applications such as splicing, tapping, and dead-ending. Its shearing installation technology simplifies the installation process.

• Insulation piercing design for various applications
• Requires only a six-point socket impact driver for installation
• CULus listed for safety and reliability

Product Highlights

Burndy BIPC5004SC offers flexibility and time savings by eliminating the need for cable stripping and brushing. It also employs engineered shear bolt technology to ensure consistent torque during connections.

Product Information

Standard Information

• Manufacturer: Burndy
• Family Group: Connectors

Technical Specifications

• Conductor Size: 2/0 AWG - 500 KCMIL Run, 4 - 4/0 AWG Tap
• Voltage Rating: 600 Volt
• Temperature Rating: 90 deg C
• Standards: cULus Listed
• MPN: BIPC5004SC
• UPC: 62194565296
• UNSPSC: 39121428
