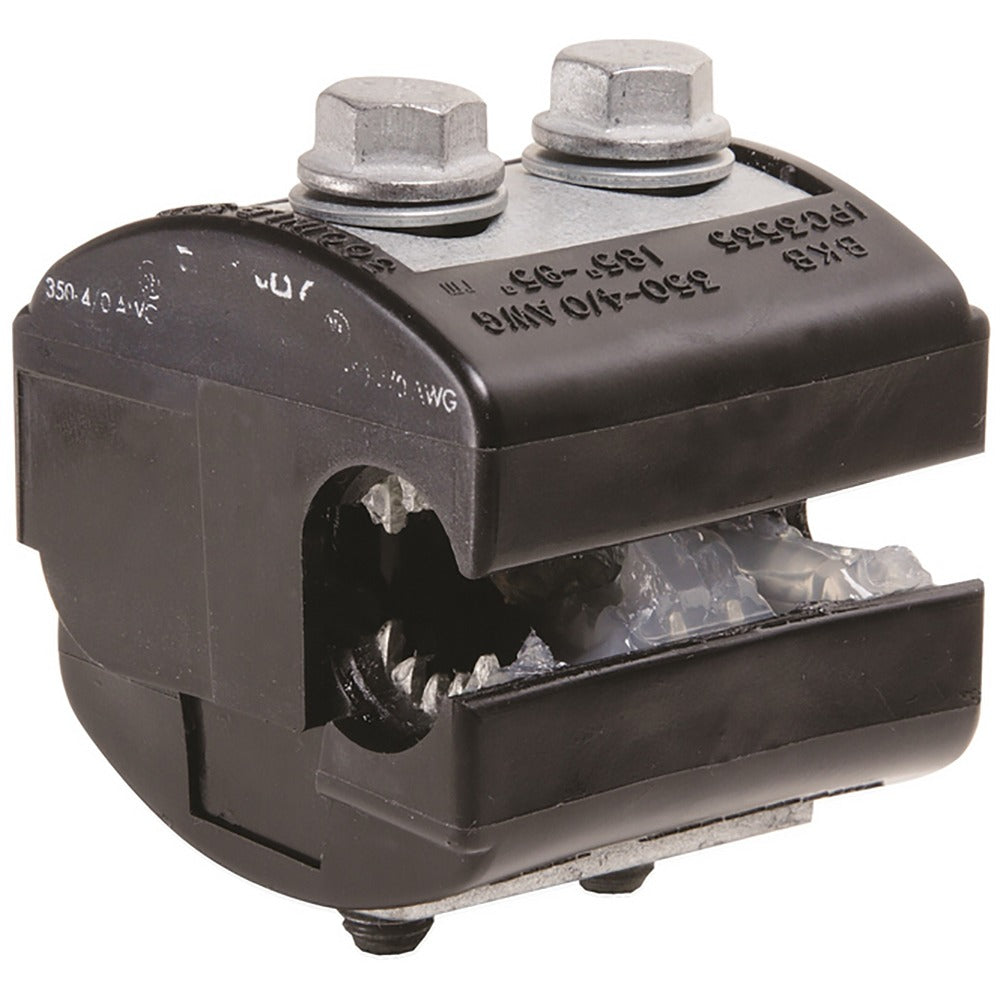

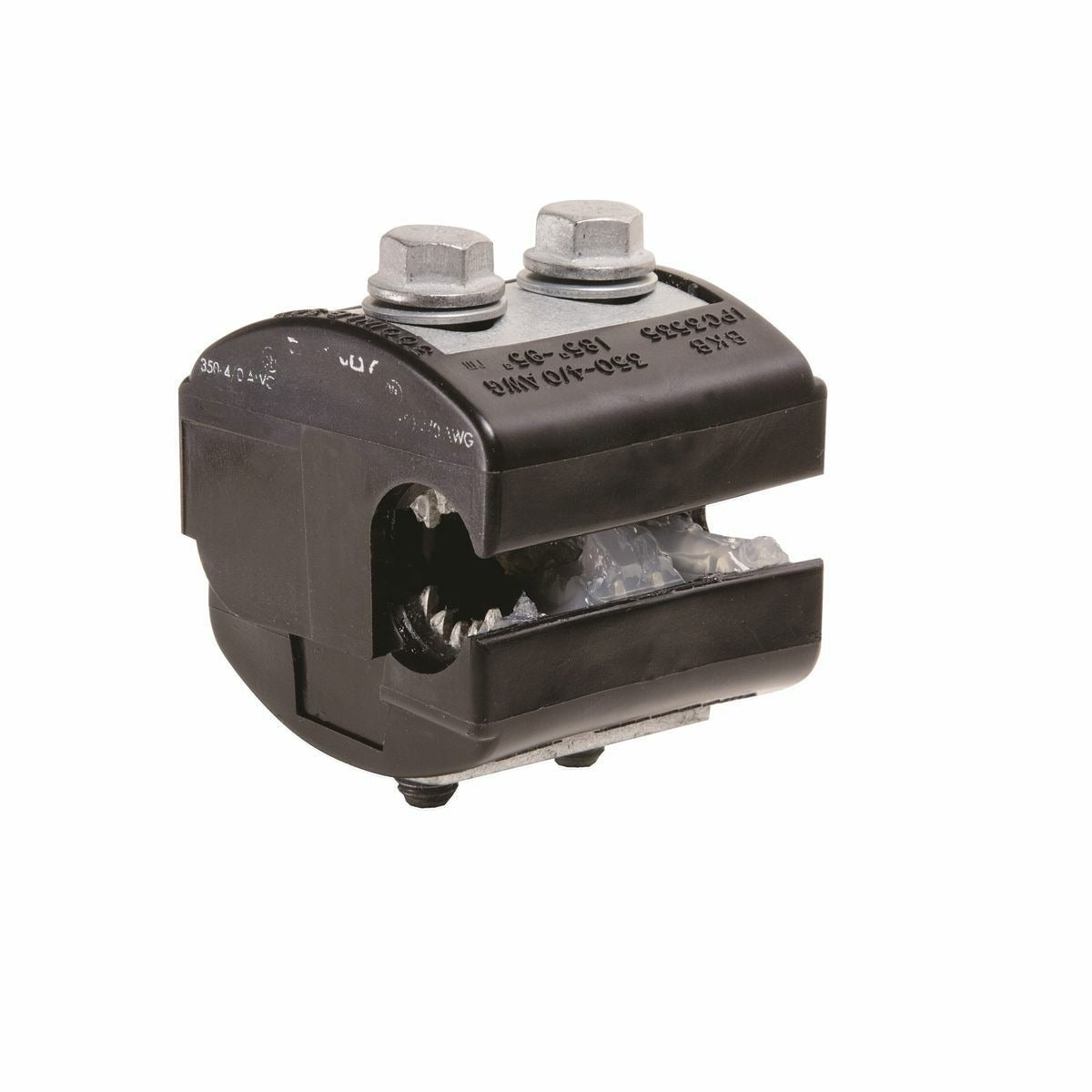

Burndy BIPC5004/0 Insulation Piercing Connector 600 V (350-500 kcmil/4-4/0 AWG) BIPC5004SC

Product Description

Burndy BIPC5004/0 is an insulation piercing connector for mechanical splicing and tapping in systems up to 600 V. It accepts run conductors 350–500 kcmil and tap conductors 4–4/0 AWG, is constructed of aluminum, and is rated to 90°C. The connector is UL 486A/486B listed and AL9CU rated for copper/aluminum combinations and uses a 9/16 in socket with 400 in-lb recommended torque.

• Run conductor range: 350–500 kcmil; tap conductor range: 4–4/0 AWG; suitable for copper and aluminum conductors
• Electrical rating: 600 V; temperature rating 90°C; standards: UL 486A/486B; AL9CU rated
• Installation: insulation-piercing design eliminates stripping; 9/16 in socket; recommended installation torque 400 in-lb; snap-out tabs protect connection

Product Highlights

Insulation piercing run/tap connector for 350–500 kcmil run and 4–4/0 AWG tap; 600 V, aluminum construction; UL 486A/486B listed; 9/16 in socket; 400 in-lb torque.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: BIPC5004/0
• Country of Origin: United States
