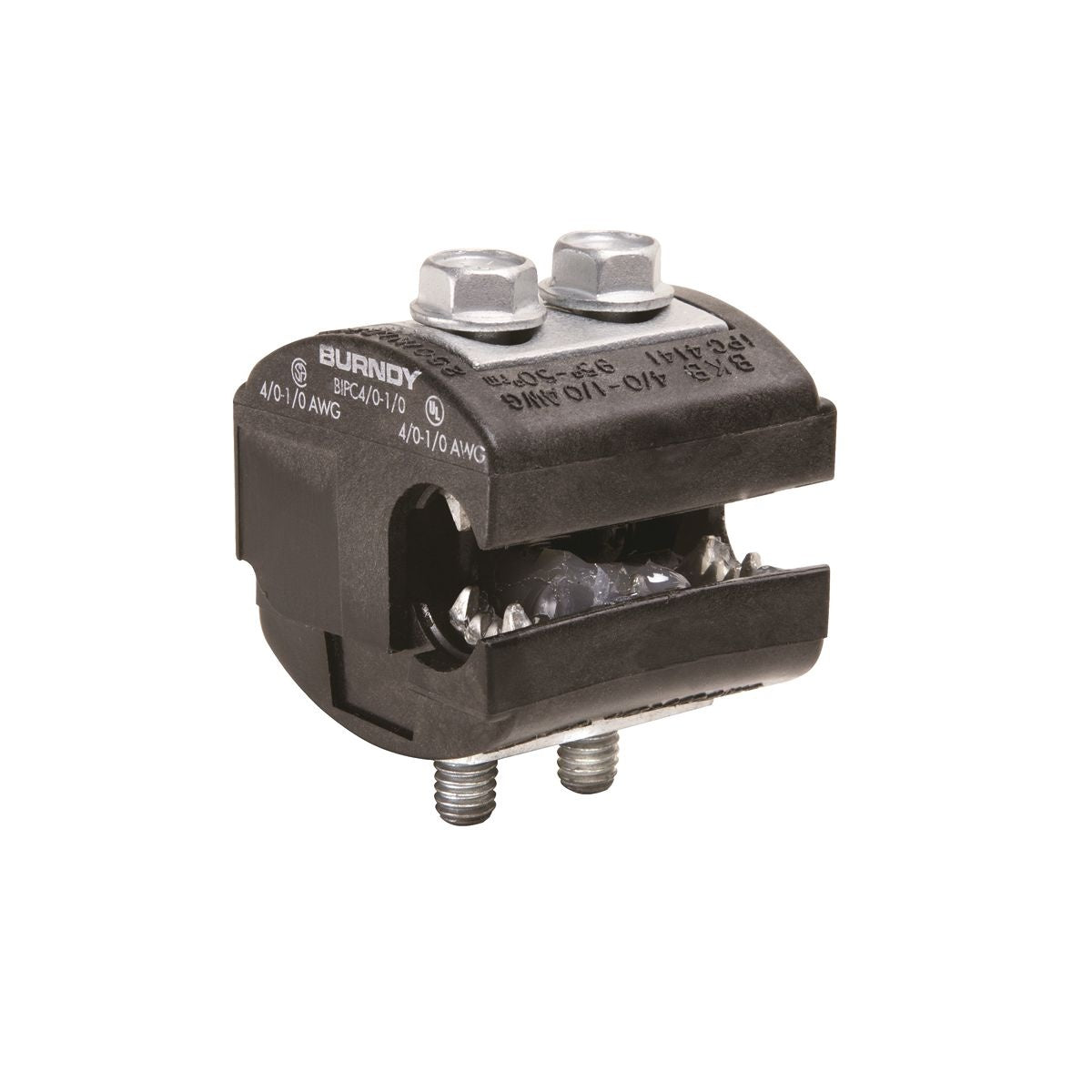

Burndy BIPC4/010S Insulating Piercing Connector 1/0-4/0-AWG Stranded Run and Tap

Product Description

The Burndy BIPC4/010S is an insulating piercing connector designed for use with conductor sizes ranging from one AWG to four AWG stranded wire. This connector simplifies installations by eliminating the need for conductor insulation stripping.

• Easy use with copper and aluminum wire combinations.
• UL 486B listed for safety and reliability.
• Designed for applications up to 600 volts.

Product Highlights

This product is essential for splicing and tapping operations. It is built for ease of installation and provides reliable protection against dirt and debris.

Product Information

Standard Information

• Brand: Burndy
• Part Number: BIPC4/010S

Technical Specifications

• Conductor Size: 1/0-4/0 AWG Stranded Run and Tap
• Material: Aluminum
• Installation Torque: 250 lb-Inch
• Dimensions: 2.12 inches Length x 2.06 inches Width x 2.5 inches Height
• Temperature Rating: 194 deg F
• Voltage Rating: 300 Volt
• Standards: UL 486A/486B Listed, CSA Certified, RoHS Compliant
