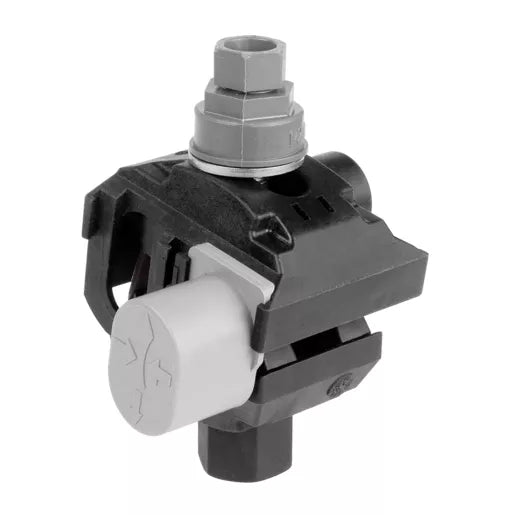

Burndy BIPC2/014S Insulation piercing connector for Cu/Al #6-2/0 run #14-#8 tap

Product Description

The Burndy BIPC2/014S is an insulation piercing connector for copper and aluminum conductors, engineered for splicing, tapping, and dead-ending without stripping insulation. It accepts run conductors #6 to 2/0 and tap conductors #14 to 8, uses engineered shear-bolt technology for consistent torque, and installs/removes with a 6-point socket impact driver. The connector is cULus listed, AL9CU rated for up to 90°C and 600 V, suitable for overhead taps, service, metering, and lighting work.

• Accepts run conductors #6 to 2/0 and tap conductors #14 to 8 for copper and aluminum
• Insulation-piercing design eliminates cable stripping, conductor brushing, inhibitor application, and post-installation taping
• Engineered shear-bolt technology with installation/removal via 6-point socket impact driver; cULus listed, AL9CU rated to 90°C and 600 V

Product Highlights

Insulation-piercing splice/tap connector for Cu/Al; engineered shear-bolt installation; cULus and AL9CU rated to 600 V and 90°C.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: BIPC2/014S

Technical Specifications

• Brand: Burndy
• MPN: BIPC2/014S
• Type: Insulation piercing connector
• Application: For splicing, tapping, and dead-ending applications
• For Use On: Copper and Aluminum
• Run Conductor Range: #6 to 2/0
• Tap Conductor Range: #14 to 8
• Installation Tool: 6-point socket impact driver
• Shear Bolt Technology: Engineered shear-bolt (consistent torque)
• Listings/Certifications: cULus listed; AL9CU rated
• Rated Temperature: Up to 90°C
• Voltage Rating: 600 Volt
• Suitable For: Overhead covered and bare taps; service and metering connections; lighting system work
• Package Quantity: Pack of 3
• Condition: New
• UPC: 621945652996
