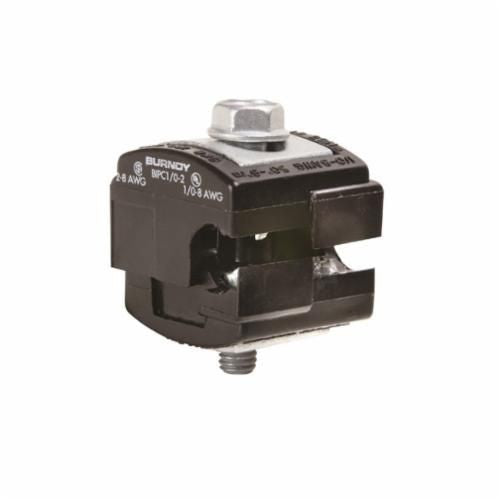

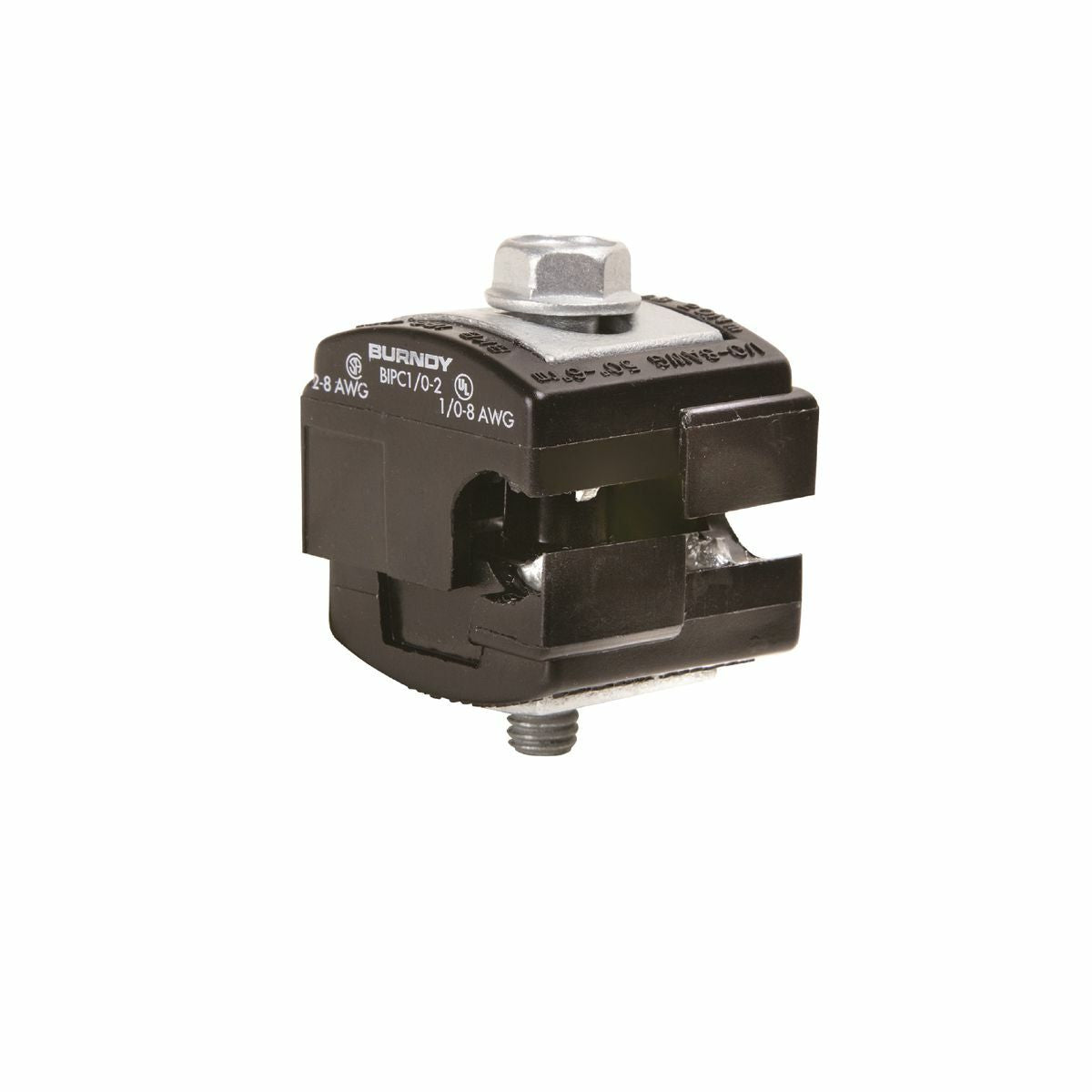

Burndy BIPC1/02 Insulation Piercing Connector 600 V (8-1/0 AWG Run, 8-2 AWG Tap) BIPC1/010SC

Product Description

The Burndy BIPC1/02 is an insulation piercing connector for splicing and tapping aluminum and copper conductors. It accepts run conductors from 8 to 1/0 AWG and tap conductors from 8 to 2 AWG, and is rated to 600 V and 90�C. The aluminum bolt-on connector features insulation piercing teeth that eliminate the need to strip insulation and includes snap-out tabs to protect the connection.

• Insulation piercing design for splicing and tapping without stripping insulation; bolt-on installation with single hexagonal bolt
• Electrical ratings: 600 V, 90�C; AL9CU rated; UL 486A/486B listed; CSA certified
• Mechanical: 5/16-18 bolt (0.31 in), installation torque 180 in-lb, 1/2 in socket size; dimensions 1.53 in L x 2.56 in W x 2.00 in H

Product Highlights

Aluminum insulation piercing connector for 8�1/0 AWG run and 8�2 AWG tap conductors, 600 V, UL 486A/486B and AL9CU rated, 5/16-18 bolt with 180 in-lb recommended torque

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: BIPC1/02
• Country of Origin: United States
