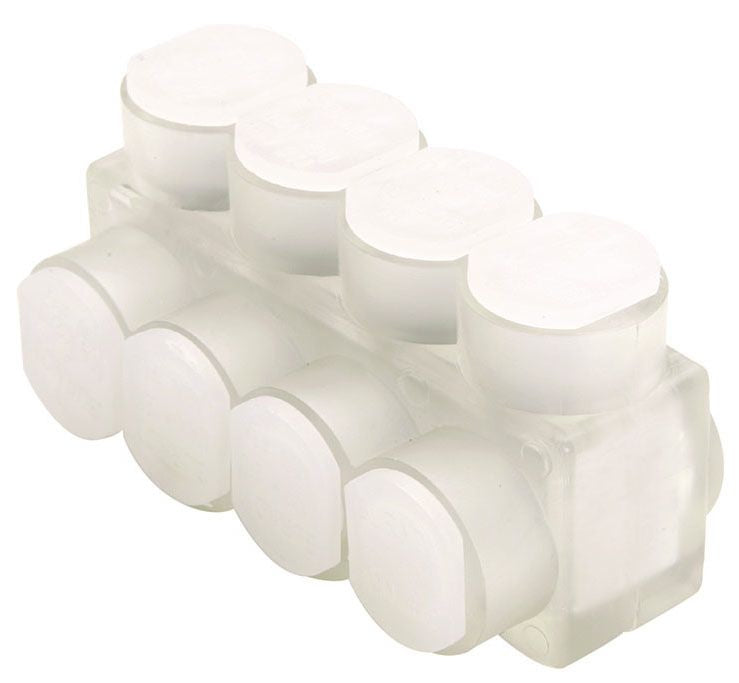

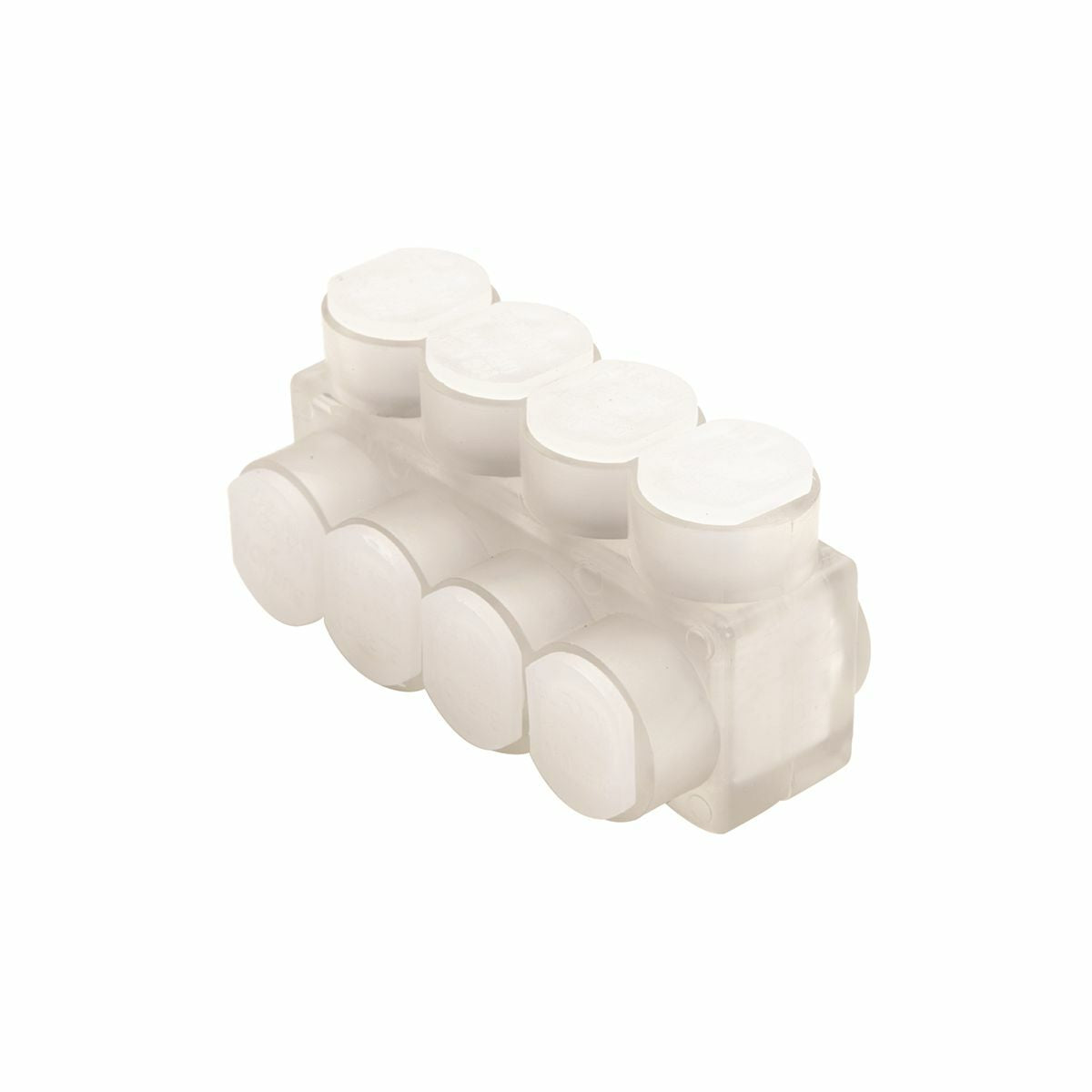

Burndy BIBS44 Aluminum Multiple Tap Connector 600 V 4 Port Al/Cu Rated

Product Description

The Burndy BIBS44 is an aluminum multiple tap connector designed for reliable wire connections. This connector supports four port entries and is suitable for both aluminum and copper conductors.

• Rated for 600 volts.
• Features single-sided entry for easy installation.
• Compatible with conductor sizes from fourteen to four AWG.

Product Highlights

Use this connector for indoor applications, ensuring strong and secure wire terminations in electrical installations.

Product Information

Standard Information

• Catalog Number: BIBS44
• Manufacturer: Burndy, a Hubbell affiliate
• Brand: Burndy
• Country of Origin: United States
• Made in USA: Yes

Technical Specifications

• Material: Aluminum
• Application: For indoor use only, copper or stranded aluminum
• Temperature Rating: 194 degrees Fahrenheit
• Torque Requirement: 45 IN-LB
• Conductor Size (run - Range): 14 - 4 AWG
• Wire Strip Length: 5/8 inches
• Special Features: UNITAP rated for code conductor only, four ports, single wire entry
• Standard Compliance: UL 486A-486B
• UPC: 781810134122
