BURNDY BIBS43FX Aluminum Unitap, Single Sided Entry, #14-#4 Class B & C, #14-#6 Class G,H,I,K, DLO, 3 PORT

Product Description

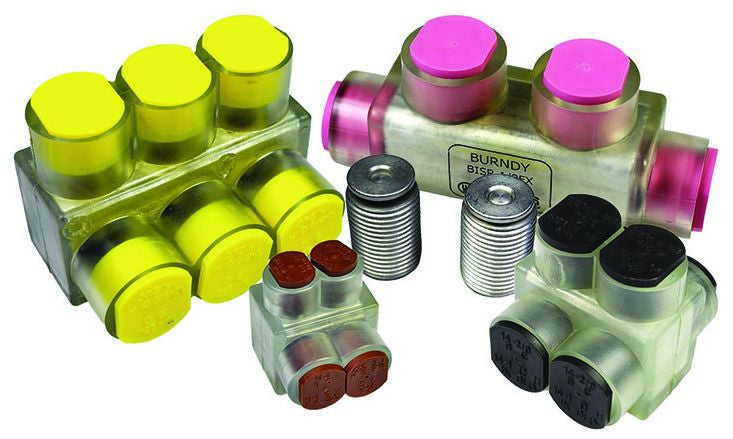

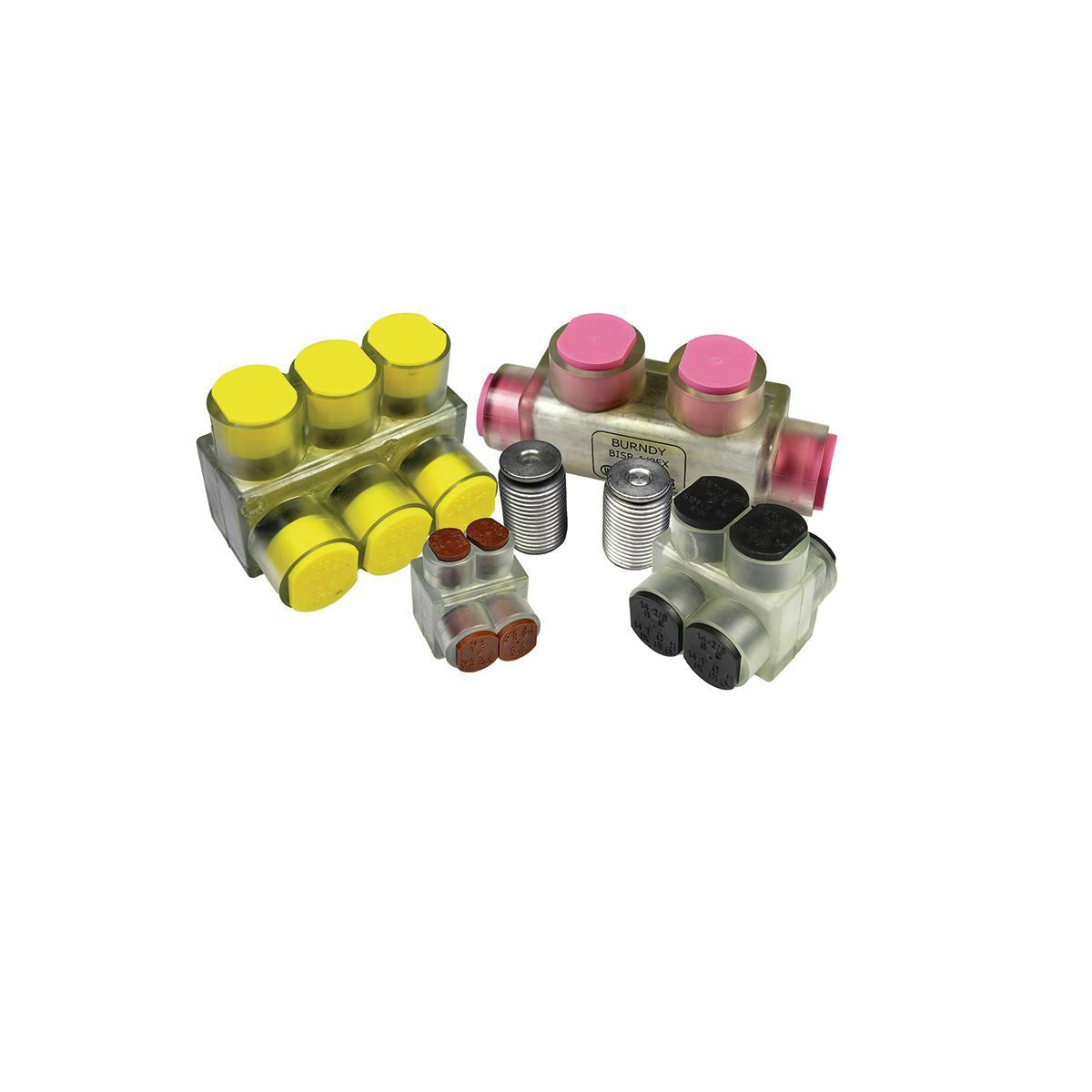

The BURNDY BIBS43FX is an Aluminum UNITAP that allows tap connections and in-line splice reductions efficiently. Designed for use with copper or aluminum conductors, this connector caters to a broad range of applications.

• Single-sided entry for ease of use
• Suitable for multiple conductor sizes from #14 AWG to #4 AWG
• UL listed for safety and reliability

Product Highlights

The Unitap connectors streamline the process of making tap connections. This ensures reliable performance in electrical applications.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• UPC: 621945439757

Technical Specifications

• Catalog Number: BIBS43FX
• Material: Aluminum with Plastisol cover
• Application: Tap connections and in-line splicing
• Temperature Rating: -40 to 135 Degrees C
• Electrical Rating: 600 Volt, 95 Amp
• Size: 1.51 inches (length) x 1.16 inches (width) x 1.25 inches (height)
• Compliance: UL 486A-486B
• Cross Reference Products: PBTS-3-4-F, IPLG6-3
