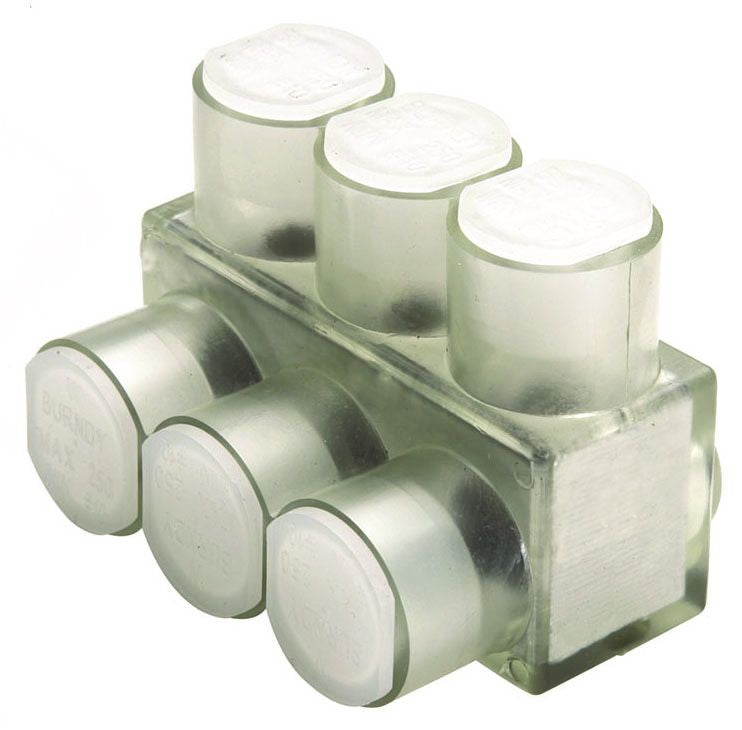

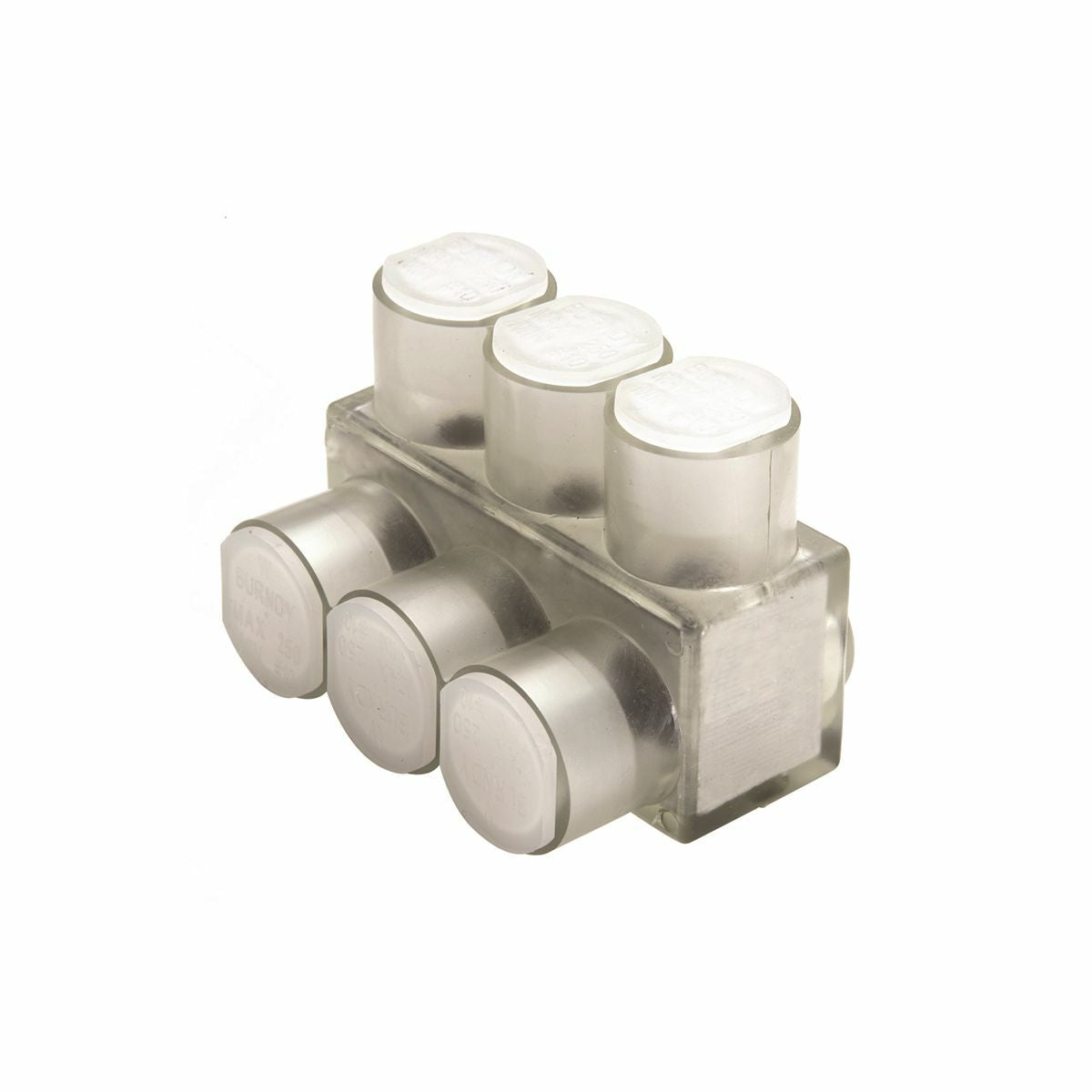

BURNDY BIBS43 Aluminum Multiple Tap Connector, Clear Insulated, 3 Port, 1 Sided Entry, 14-4 AWG

Product Description

The BURNDY BIBS43 is an aluminum multiple tap connector designed for reliable indoor connections. This connector supports three ports with a clear insulation feature, which protects the wiring while making it visible for inspection. It is suitable for conductors of 14 to 4 AWG in size, compatible with both copper and stranded aluminum conductors.

• Aluminum construction.
• Torque rating of forty-five inch-pounds.
• Rated for indoor use only.

Product Highlights

This connector is known for its durability and code compliance in electrical applications.

Product Information

Standard Information

• Catalog Number: BIBS43
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Aluminum
• Temperature Rating: 194 degrees Fahrenheit
• Application: For indoor use only, compatible with copper or stranded aluminum
• Wire Entry: Single, one-sided entry
• Number Of Ports: 3
• Conductor Size Range: 14 AWG to 4 AWG
• Torque: 45 IN-LB
• Insulation Type: Plastisol
• Cross Reference Products: IPL4-3C, CSB-4-3-S
• Approval Standards: UL 486A-486B
