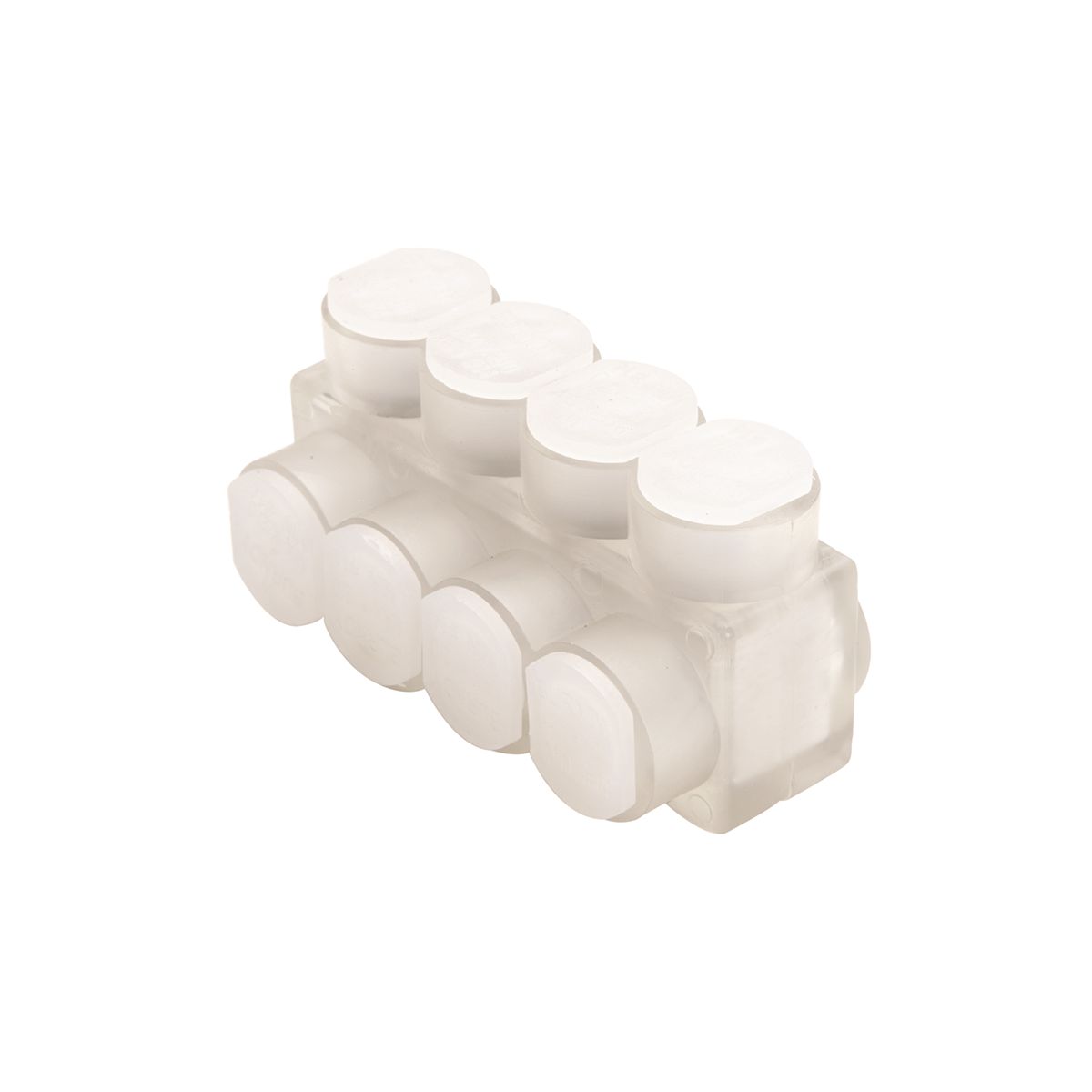

Burndy BIBS2504 Aluminum Multiple Tap Connector 600 V (4 Port)

Product Description

The Burndy BIBS2504 is a 4-port aluminum multiple tap connector rated for 600 V and suitable for 10 AWG to 250 kcmil conductors. It features an AL6061-T6 body with pre-insulated plastisol cover and a pre-installed oxide inhibitor. The UNITAP one-sided entry design accepts stranded copper or stranded aluminum conductors for indoor electrical distribution and tap applications.

• Four-port, one-sided entry UNITAP connector for 10 AWG to 250 kcmil; Al/Cu rated; rated 600 V
• AL6061-T6 aluminum body with clear plastisol insulation and pre-installed oxide inhibitor for visual conductor confirmation
• Screw connection using 5/16 in hex key; torque 275 in-lb; wire strip length 1 in; temperature rating 90 degrees C

Product Highlights

4-port AL6061-T6 aluminum unitap connector, plastisol insulated, 10 AWG�250 kcmil, 600 V, one-sided entry

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: BIBS2504
• Country of Origin: USA
