BURNDY BIBS2503 Aluminum Multiple Tap Connector, Clear Insulated, 3 Port, 1 Sided Entry, 10 AWG-250 kcmil, Al/Cu Rated

Brand: BURNDY
SKU: BIBS250-3
Availability: In Stock

Ships same day if ordered by 12 pm
$57.47
$57.47
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

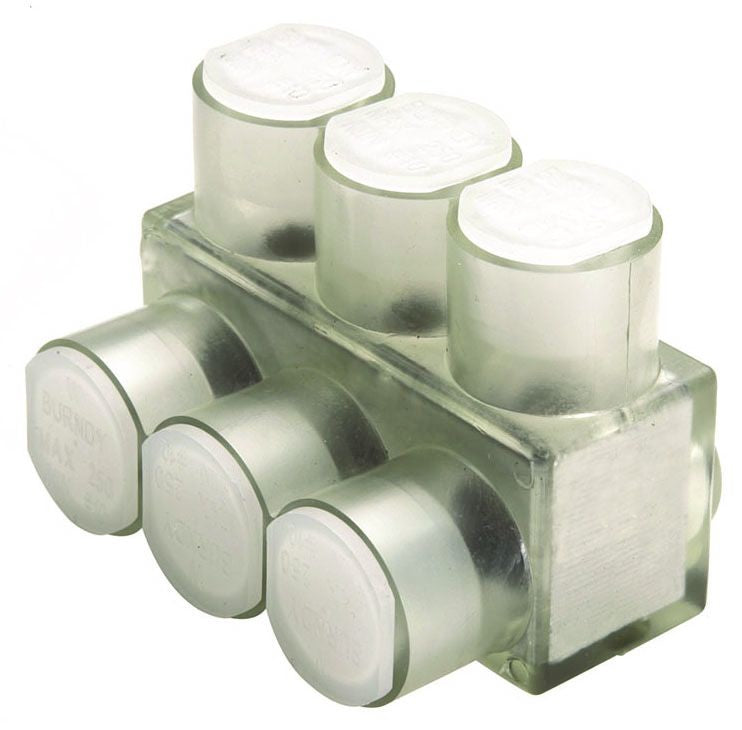

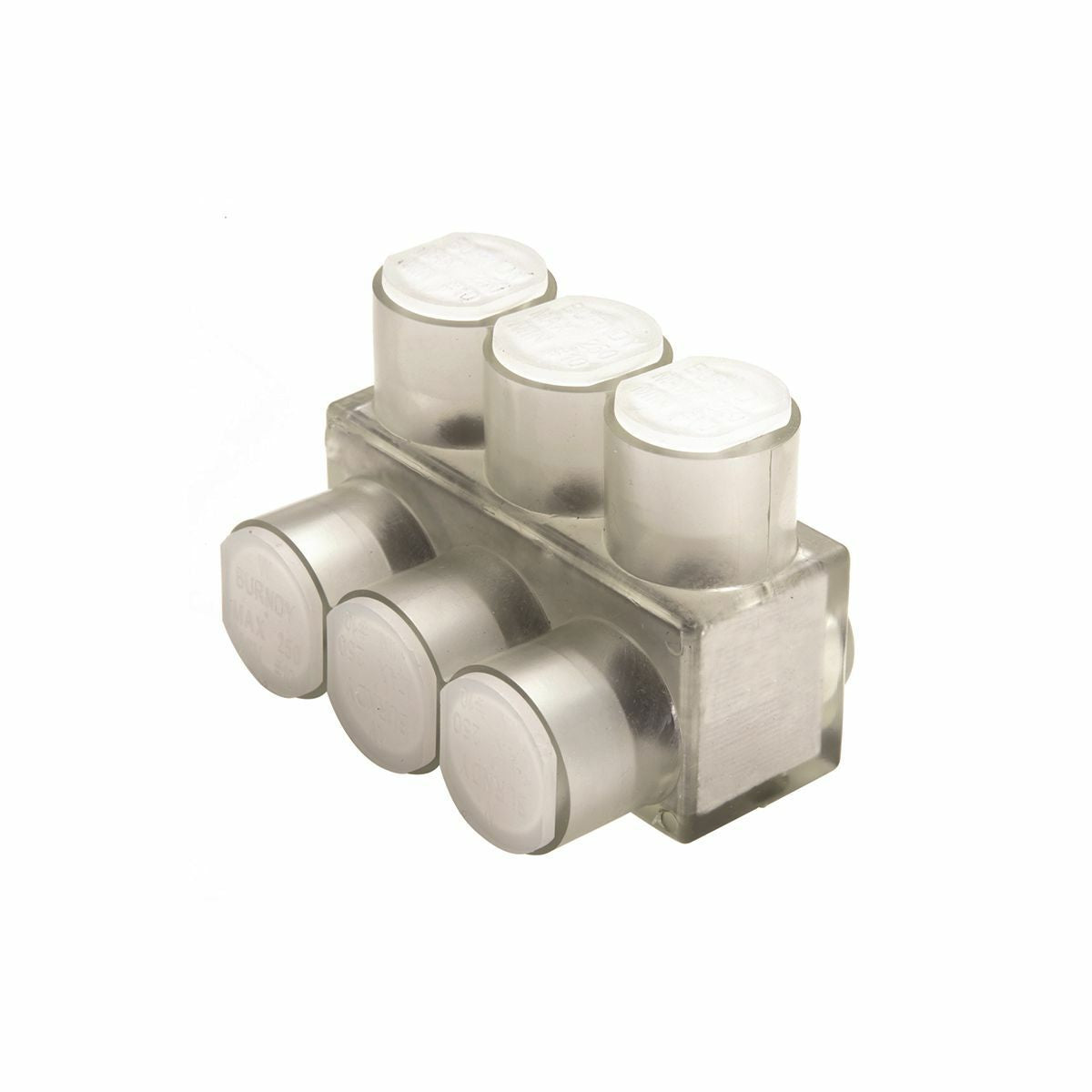

The BURNDY BIBS250-3 is an aluminum multiple tap connector designed for various electrical applications. This connector accommodates three ports and allows for single-sided entry. It is suitable for conductors ranging from ten AWG to two hundred fifty kcmil, making it versatile for different wiring tasks.

  • Aluminum construction ensures durability and reliability.
  • Designed for indoor use with copper or stranded aluminum conductors.
  • Features a torque rating of two hundred seventy-five inch-pounds.

Product Highlights

Ideal for electrical installations requiring multiple connections.

Product Information

Standard Information

  • Manufacturer: Burndy, a Hubbell affiliate
  • UPC: 781810223994
Technical Specifications
Catalog Number
BIBS2503
Material
Aluminum
Application
For Indoor Use Only, Copper Or Stranded Aluminum
Special Features
UNITAP rated for code conductor only, torque: 275 IN-LB, wire entry: single, hex size (key): 5/16 IN, wire strip length: 1 IN, number of ports: 3
Country of Origin
United States
Temperature Rating
194°C
Cross Reference Products
IPL250-3C, CSB-250-3-S
