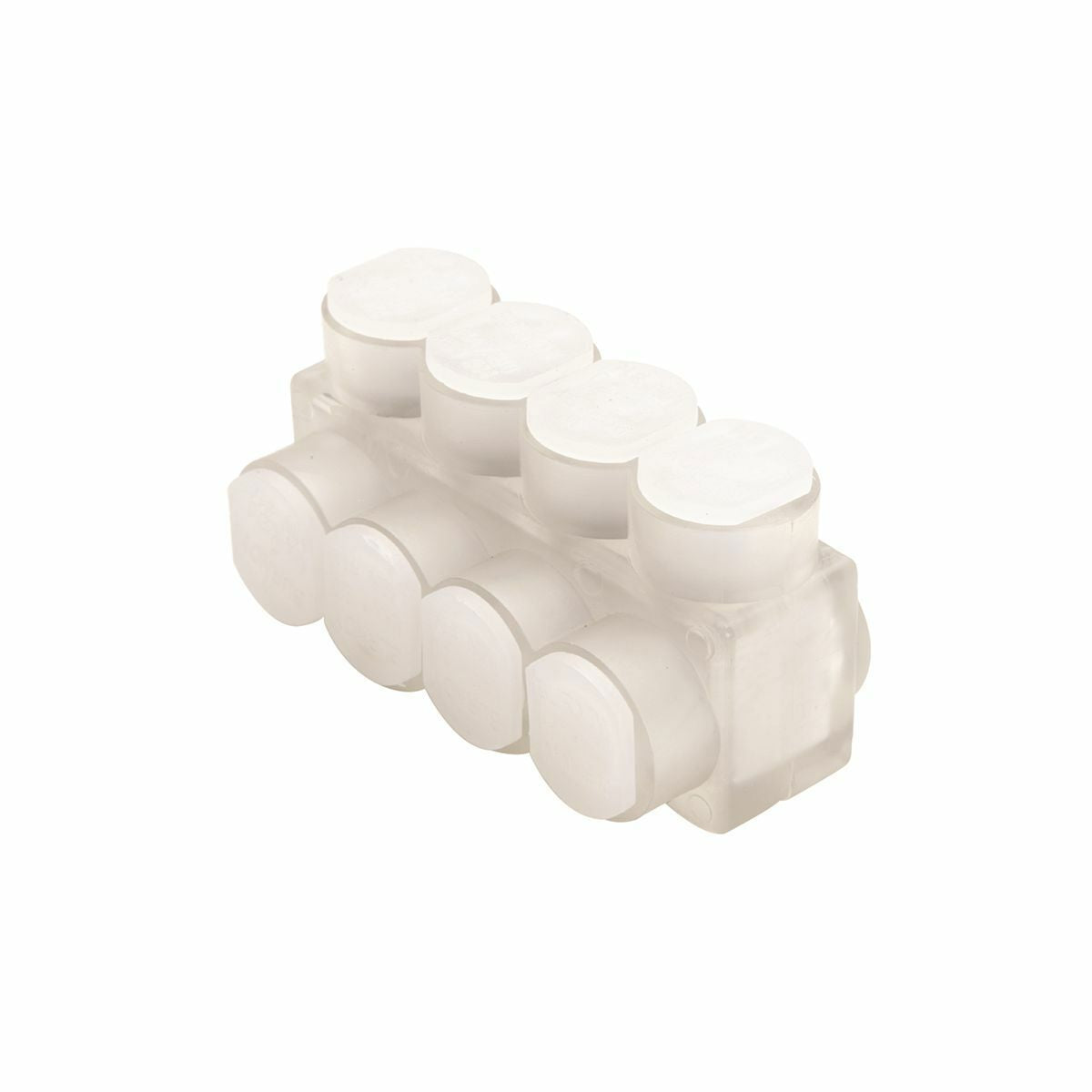

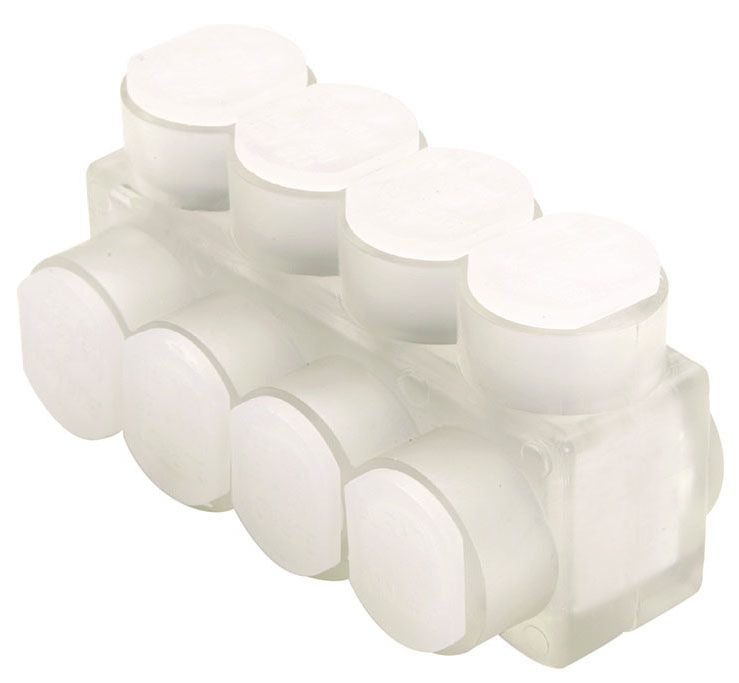

BURNDY BIBS2/04 Aluminum Multiple Tap Connector Clear Insulated 4 Port 1 Sided Entry 14-2/0 AWG Al/Cu Rated

Product Description

The BURNDY BIBS2/04 is an aluminum multiple tap connector designed for reliable connections. This connector is suitable for indoor use and is rated for both copper and stranded aluminum conductors.

• Four ports for multiple connections
• Rated for conductor sizes from fourteen AWG to two AWG
• Compatible with UNITAP for code conductor only

Product Highlights

The connector features a single-sided entry and hex key size of three sixteenths inch, making it easy for installation in various applications.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate
• UPC: 781810223895

Technical Specifications

• Catalog Number: BIBS2/04
• Material: Aluminum
• Application: For indoor use only, copper or stranded aluminum
• Number of Ports: 4
• Temperature Rating: 194 degrees Fahrenheit
• Special Features: UNITAP rated, hex key size: 3/16 inch, conductor size range: 14-2/0 AWG
• Standard: UL 486A-486B
• Country of Origin: United States
