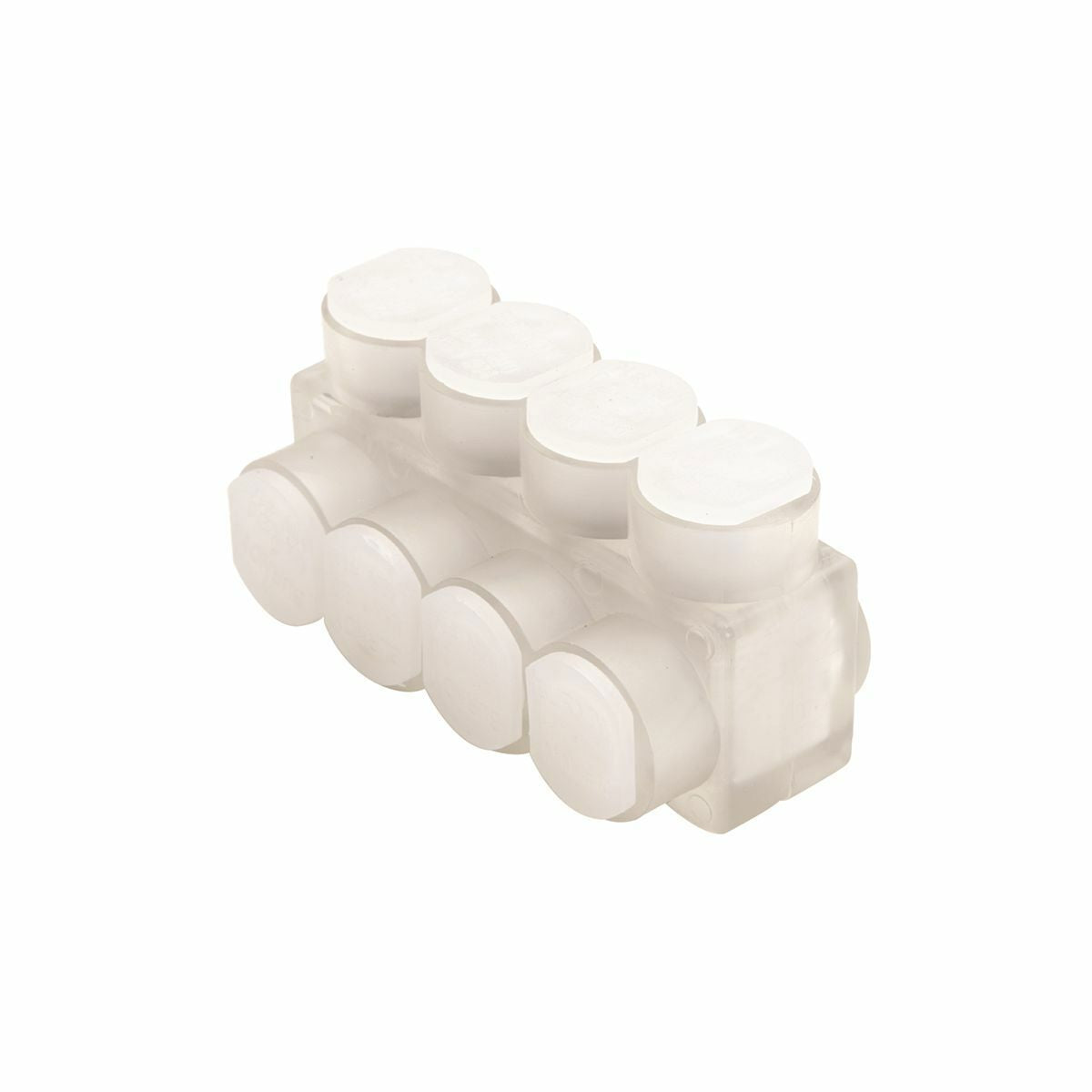

BURNDY BIBS-350-6 Aluminum Multiple Tap Connector, Clear Insulated, 6 Port, 1 Sided Entry, 10 AWG-350 kcmil, Al/Cu Rated

Product Description

The BURNDY BIBS-350-6 is an aluminum multiple tap connector designed for various wiring needs. This connector supports clear insulation and features a six-port design with a single-sided entry. It is suitable for conductor sizes ranging from ten AWG to three hundred fifty KCMIL and is rated for aluminum and copper wire applications.

• Six-port connection for multiple conductors
• Rated for indoor use with compatible wiring
• Torque rating of two hundred seventy-five inch-pounds

Product Highlights

This connector is ideal for professionals looking for reliable and durable wire termination solutions.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: BIBS3506
• Material: Aluminum
• Application: For Indoor Use Only, Copper Or Stranded Aluminum
• Special Features: UNITAP Rated For Code Conductor Only, Wire Entry: Single, Torque: 275 IN-LB, Conductor Size (run - Range): 10 AWG - 350 KCMIL, Hex Size (key): 5/16 IN, Type Of Insulation: Plastisol, Wire Strip Length: 1-1/8 IN, Number Of Ports: 6
• Standard: UL 486A-486B
• Country of Origin: United States
• Made in USA: Yes
• Temperature Rating: 194
• Item Type: BIBS, Multi-Port
