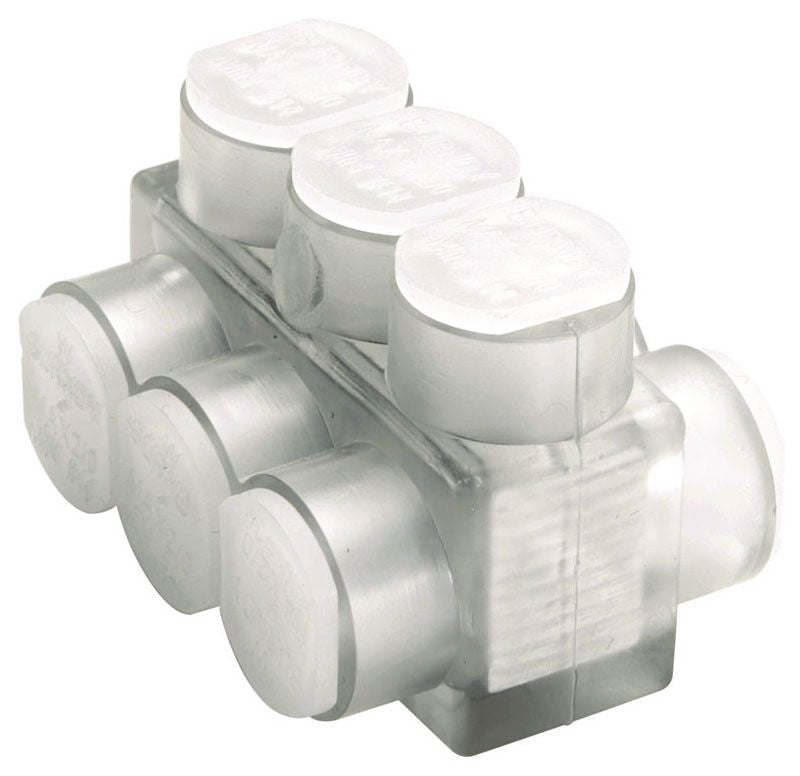

BURNDY BIBD600-8 Aluminum Multiple Tap Connector, Clear Insulated, 8 Port, 2 Sided Entry, 4 AWG-600 kcmil, Al/Cu Rated

Brand: BURNDY
SKU: BIBD6008
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm

$177.67
$177.67
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The BURNDY BIBD600-8 is an aluminum multiple tap connector designed to accommodate up to eight ports. It features clear insulation and is suitable for use with copper or stranded aluminum conductors, rated for voltage up to 600 volts. This connector offers a two-sided entry for added versatility in electrical installations.

  • Compatible with 4 AWG to 600 kcmil conductors.
  • Constructed from clear plastisol covered aluminum for enhanced protection.
  • Meets UL 486A-486B and ANSI standards.

Product Highlights

This tap connector is ideal for indoor applications where multiple conductors need to be connected securely.

Product Information

Standard Information

  • Catalog Number: BIBD6008
  • Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

  • Material: Aluminum
  • Application: For indoor use only, copper or stranded aluminum
  • Temperature Rating: -40 to 135 degrees C
  • Number of Ports: 8
  • Dimensions: 10.41 inches (length) x 3 inches (width) x 2.75 inches (height)
  • Current Rating: 420 amps
  • Standard: UL 486A-486B
  • UPC: 781810224199
