Product Description

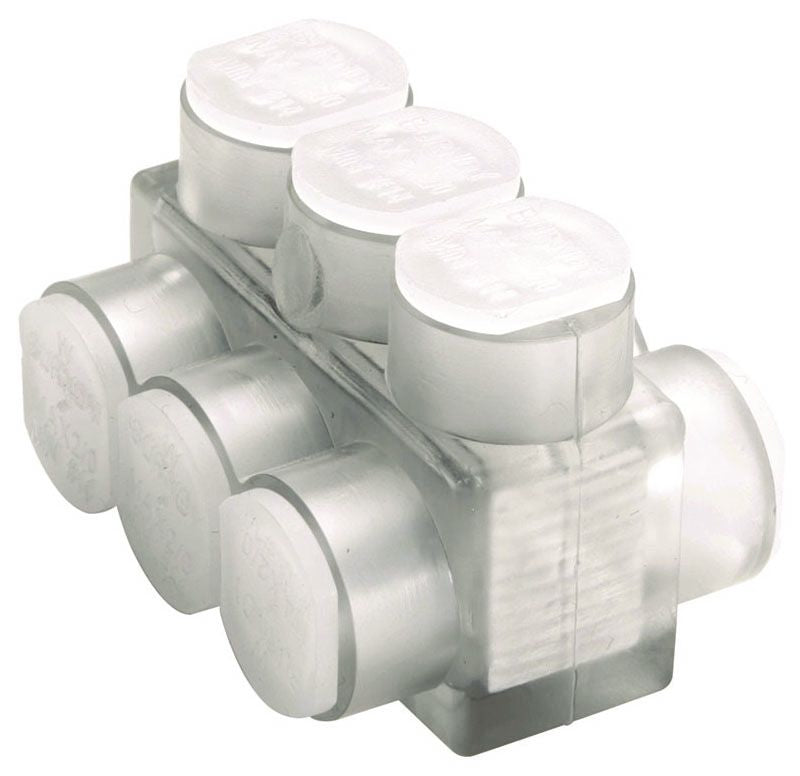

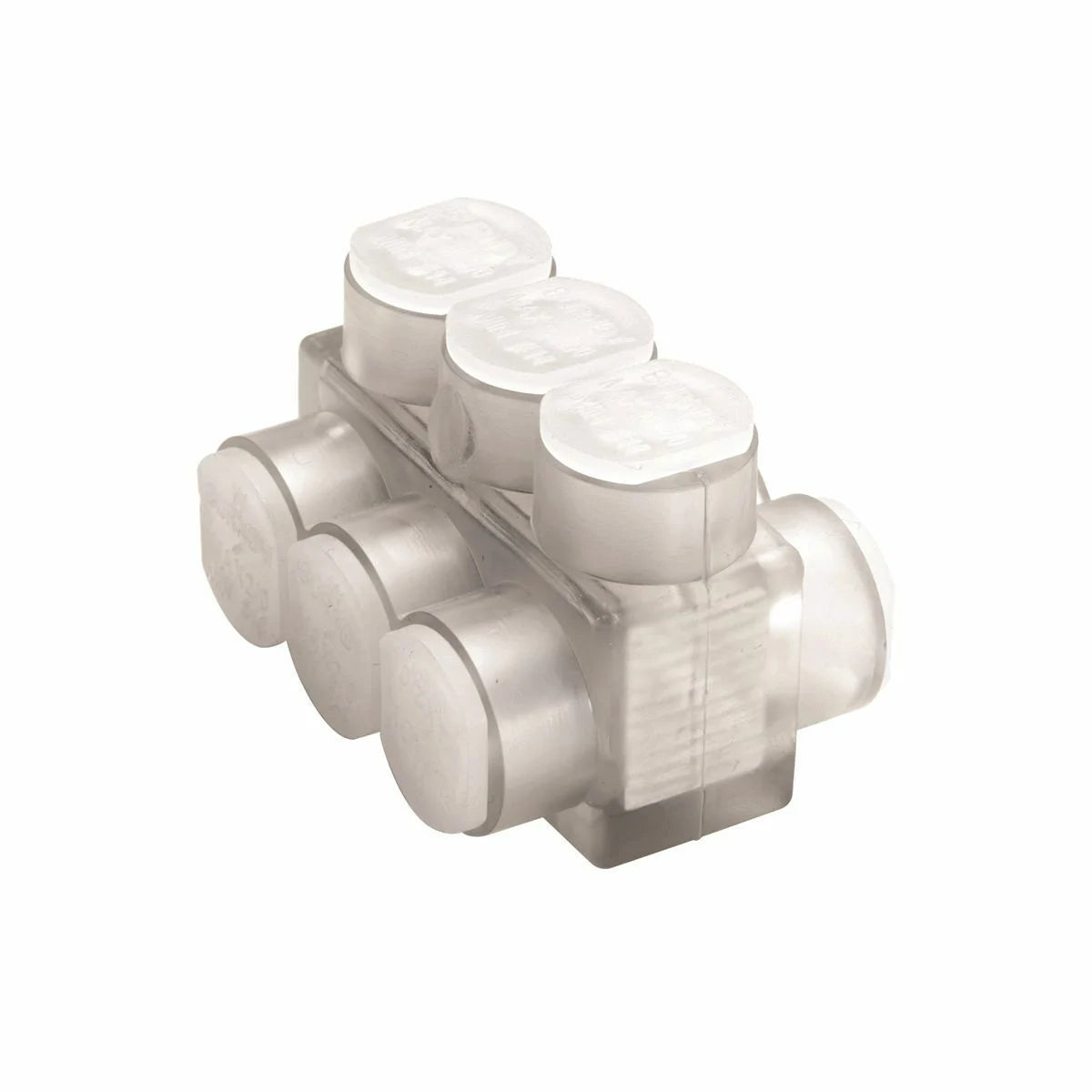

The BURNDY BIBD3506 is an aluminum multiple tap connector designed for efficient electrical connections. This model supports up to six ports and features two-sided entry. It is suitable for conductor sizes ranging from ten AWG to three hundred fifty kcmil, making it versatile for various applications.
- Aluminum construction ensures durability.
- Clear Plastisol insulation enhances visibility.
- Rated for indoor use with copper or stranded aluminum conductors.
Product Highlights
This connector excels in facilitating reliable connections in electrical systems, especially in environments that require multiple tap points.
Product Information
Standard Information
-
Catalog Number: BIBD3506
-
Manufacturer: Burndy, a Hubbell affiliate
Technical Specifications
-
Material: Aluminum
-
Application: For indoor use only, compatible with copper or stranded aluminum
-
Temperature Rating: 194 degrees Fahrenheit
-
Approval Standards: UL 486A-486B
-
Number of Ports: 6
-
Conductor Size Range: 10 AWG to 350 kcmil
-
Overall Dimensions: 7.68 inches (Length) x 3 inches (Width) x 2.5 inches (Height)
-
Screw Size: 5/16 inch Hex
-
Current Rating: 310 Amp
