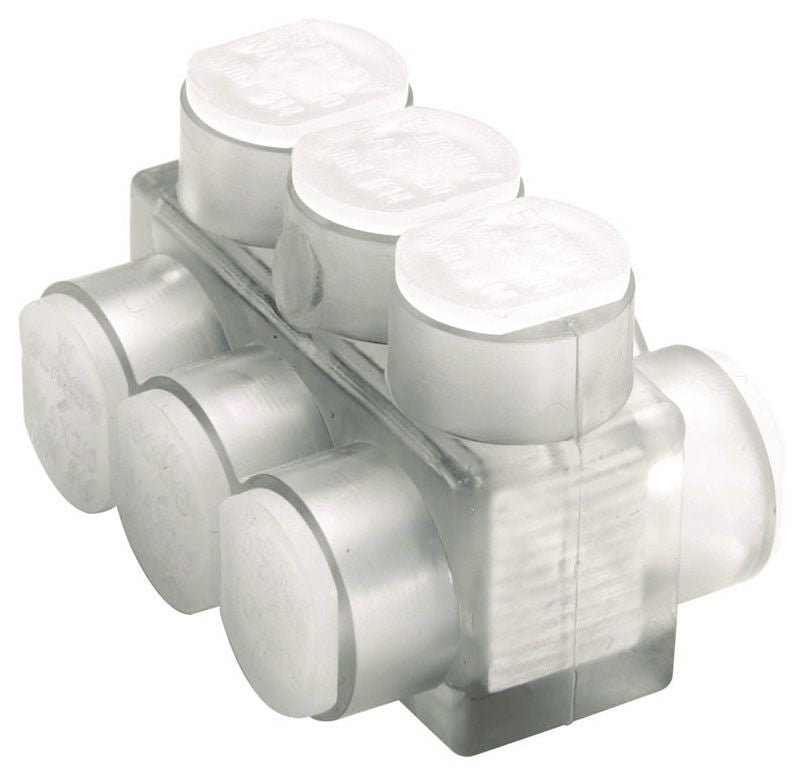

BURNDY BIBD2502 Aluminum Multiple Tap Connector, Clear Insulated, 2 Port, 2 Sided Entry, 10 AWG-250 kcmil, Al/Cu Rated

Product Description

The BURNDY BIBD2502 is an aluminum multiple tap connector designed for use with 10 AWG to 250 kcmil conductors. This clear insulated connector allows for two-sided entry of cables and is suitable for both copper and stranded aluminum applications. The device is rated for a maximum voltage of six hundred volts and supports a current rating of up to two hundred twenty-five amps.

• Clear Plastisol covered aluminum body
• UL and CSA approved for safety
• Indoor use only, compatible with copper or stranded aluminum conductors

Product Highlights

This connector is engineered for reliable electrical connections within various wiring tasks.

Product Information

Standard Information

• Brand: BURNDY
• Part Number: BIBD2502

Technical Specifications

• Material: Aluminum
• Catalog Number: BIBD2502
• Temperature Rating: -40 to 135 degrees Celsius
• Application: For indoor use only, copper or stranded aluminum
• Standard: UL 486A-486B
• Country of Origin: United States
• Special Features: Clear Plastisol covering
• Cross Reference Products: PCT-2-4/0, IT-250C, CSB-250-2
