BURNDY BIBD2/03 Aluminum Multiple Tap Connector 600 V (3 Port) BIBD2/03

Product Description

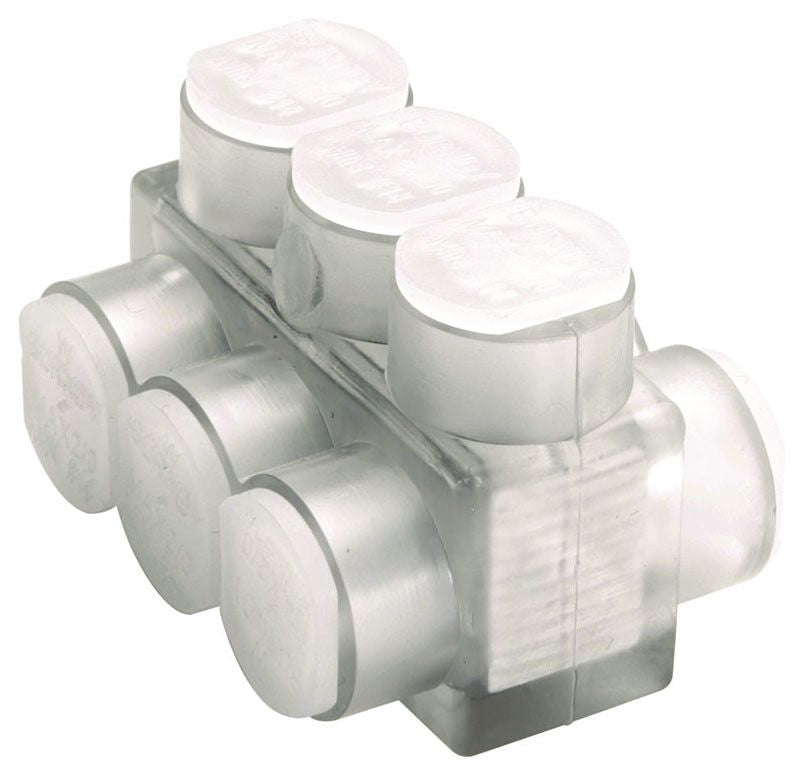

The BURNDY BIBD2/03 is an aluminum multiple tap connector with clear insulation. This connector has a three-port design, allowing for two-sided cable entry. It is suitable for both copper and aluminum conductors and meets various safety standards.

• Rated for voltage up to 600 volts
• Compatible with conductor sizes from 14 AWG to 2/0 AWG
• Made from clear Plastisol covered AL6061-T6 aluminum

Product Highlights

Designed for indoor use only, the BURNDY BIBD2/03 is ideal for connecting multiple wires in electrical applications. This connector features robust construction for durability and is easy to install.

Product Information

Standard Information

• Catalog Number: BIBD2/03
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Voltage Rating: 600 V
• Ports: 3
• Cable Entry: 2-side entry
• Conductor Material: Aluminum/Copper
• Minimum Conductor Size: 14 AWG (Copper), 8 AWG (Aluminum)
• Maximum Conductor Size: 2/0 AWG (Copper and Aluminum)
• Body Material: Clear Plastisol covered AL6061-T6 aluminum
• Approval: UL 486B, CSA
• Temperature Rating: 90 Degrees Celsius
