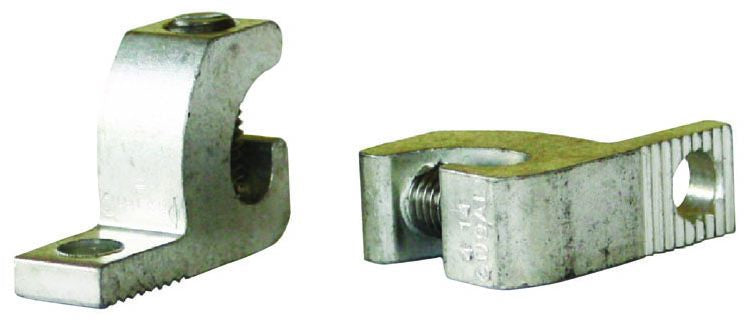

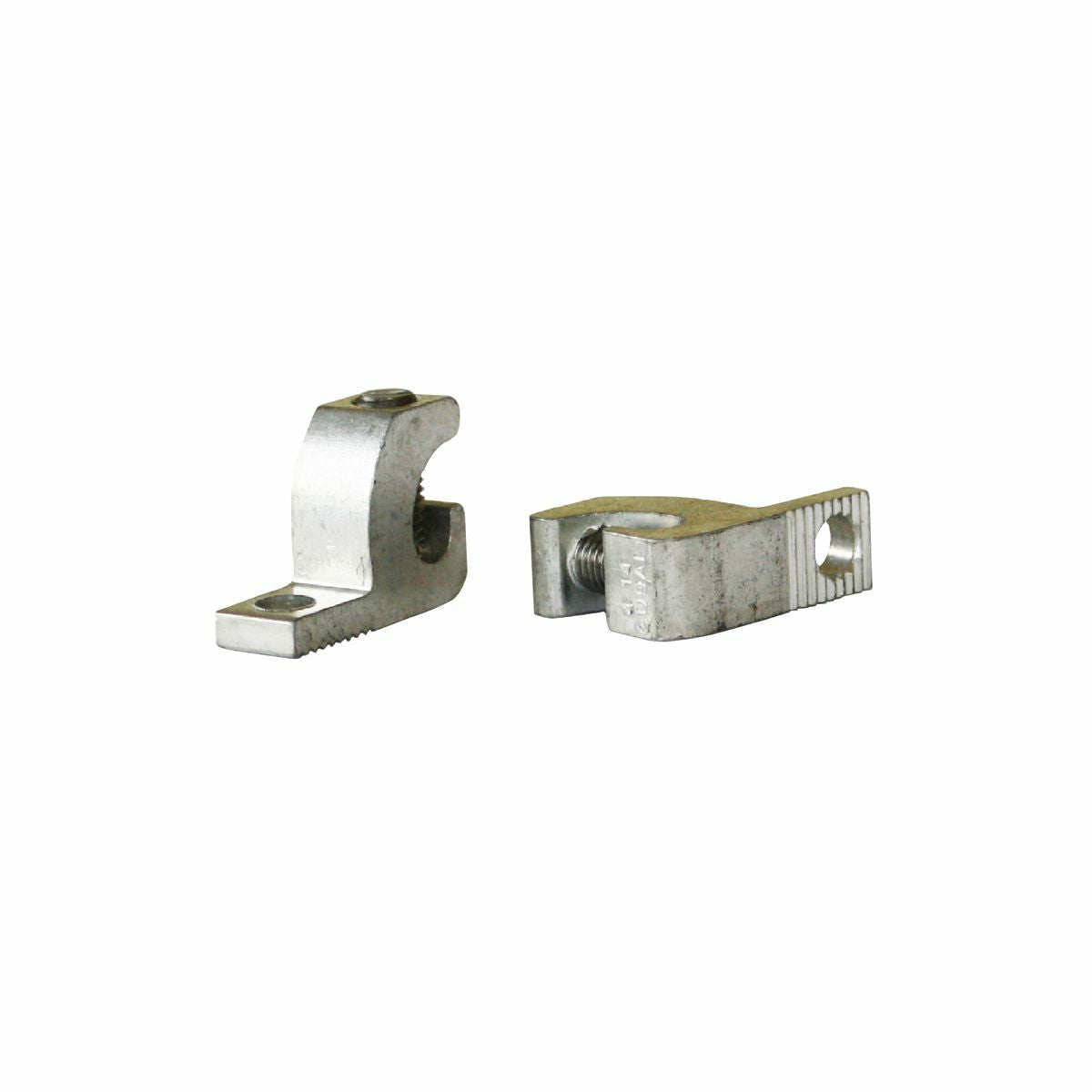

BURNDY BGBL4 Aluminum Lay-in Lug 4-14 AWG 1/4 Stud Tin Plated

Product Description

The BURNDY BGBL4 is an aluminum lay-in lug designed for electrical connections between conductors. This connector accommodates wire sizes from four to fourteen AWG and features a one-quarter inch stud. The product is tin-plated for enhanced conductivity and corrosion resistance.

• Suitable for copper and aluminum conductors
• UL486B listed for safety
• Low contact resistance due to electro-tin plating

Product Highlights

This lay-in lug simplifies installation and is reliable for joint connections in various applications.

Product Information

Standard Information

• Catalog Number: BGBL4
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Aluminum
• Application: For copper and aluminum conductor combinations up to ninety degrees Celsius, 600 volt applications
• Special Features: Lay-in feature for easy installation, UL Recognized for grounding and bonding
• Dimensions: Length: one point one inches, Width: 0.39 inches, Height: 0.79 inches
• Temperature Rating: 194 degrees Fahrenheit
• UPC: 781810124857
• Cross Reference Products: GBL-4, GLA-4, LL414
