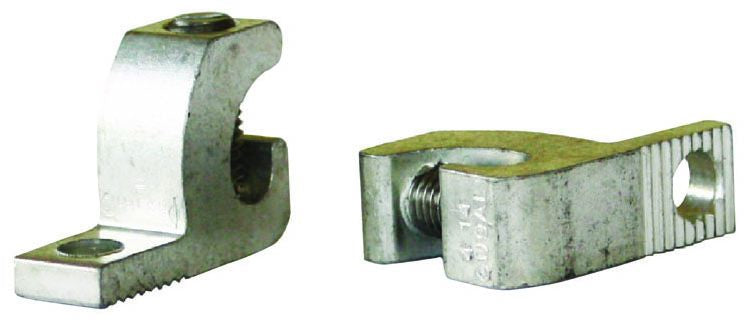

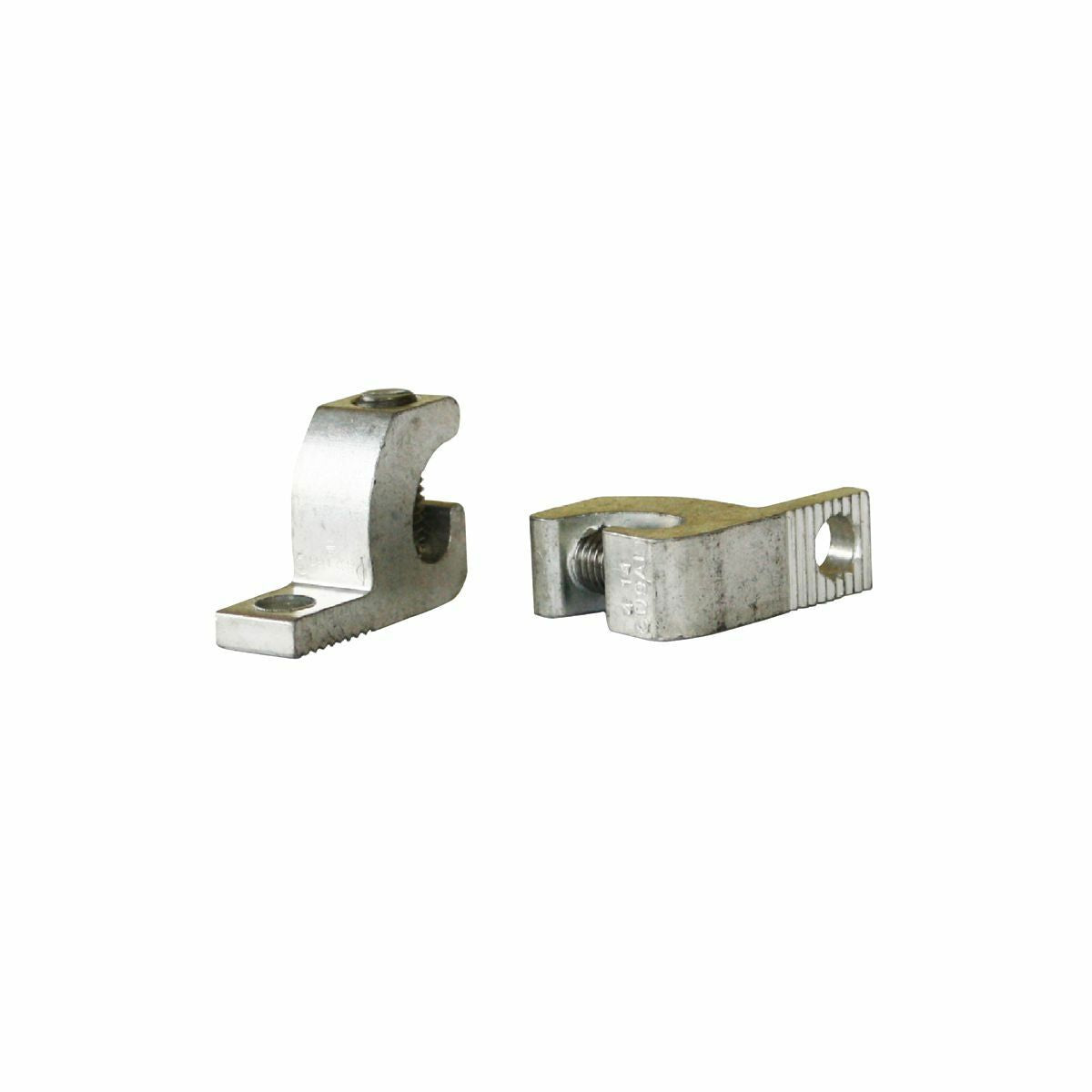

BURNDY BGBL250 Aluminum Lay-in Lug 250 KCMIL #6 AWG 7/16 Stud Tin Plated

Product Description

The BURNDY BGBL250 is an aluminum lay-in lug suitable for 250 kcmil to 6 AWG conductors. It features a 7/16 inch stud and is electro-tin plated to ensure low contact resistance and reliability. This product is designed for use with copper and aluminum conductor combinations.

• Suitable for 600 volt applications
• UL486B listed for grounding and bonding
• Installation torque for easy application

Product Highlights

This lay-in lug is engineered from high-strength aluminum for durability and is designed to streamline the installation process. Its unique lay-in feature allows for quick connections, making it ideal for both professional electricians and contractors.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: United States
• Made in USA: Yes

Technical Specifications

• Catalog Number: BGBL250
• Material: Aluminum
• Application: For copper and aluminum conductor combinations up to 90 degrees Celsius
• Temperature Rating: 194 degrees Fahrenheit
• Dimensions: Length: 2.18 inches, Height: 1.72 inches
• Stud/Bolt Hole Size: 0.28 inches
• Installation Torque: Yes
