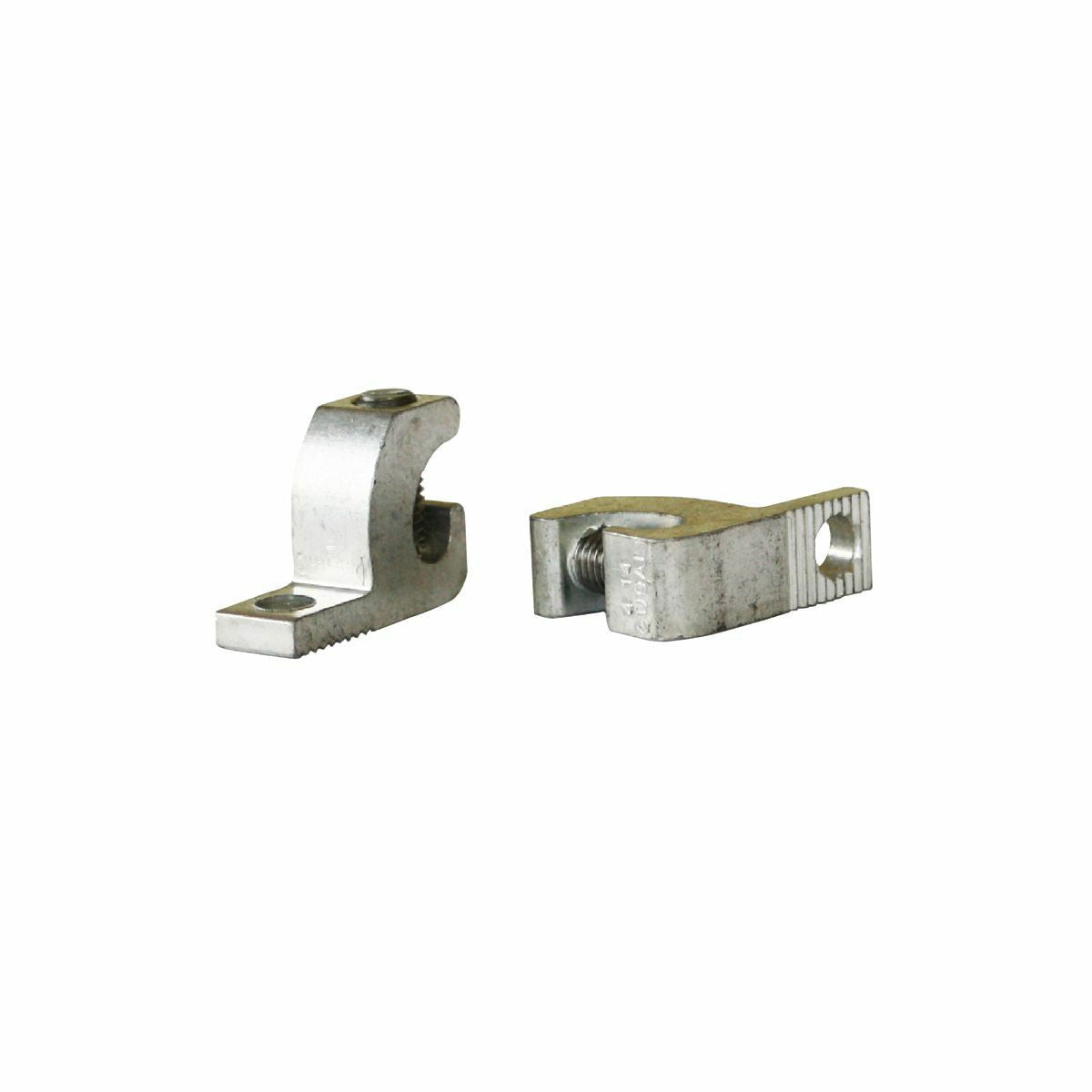

BURNDY BGBL1/0 Aluminum Lay-in Lug, 1/0-14 AWG, 3/8 Stud, Tin Plated

Product Description

The BURNDY BGBL1/0 is an aluminum lay-in lug designed for conductor combinations ranging from one aught to fourteen AWG. It includes a three-eighths inch stud and is electro-tin plated, ensuring low contact resistance. This component is suitable for both copper and aluminum conductors and is UL486B listed.

• Designed for conductor ranges 1/0 to 14 AWG
• Rated for use up to ninety degrees Celsius
• Stud/bolt hole size of zero point twenty-eight inches

Product Highlights

The aluminum lay-in lug features easy installation with a lay-in design and is UL recognized for grounding and bonding.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: BGBL1/0
• Material: Aluminum
• Country of Origin: Mexico
• Temperature Rating: 194 degrees Fahrenheit
• Application: For copper and aluminum conductor combinations up to 90 degrees Celsius
• Special Features: Manufactured from high strength 6061-T6 aluminum, UL recognized for grounding and bonding, lay-in feature for ease of installation
• Dimensions: Length 1.63 inches, Height 1.16 inches
• Cross Reference Products: GBL-1/0, GLA-0, LL1014
