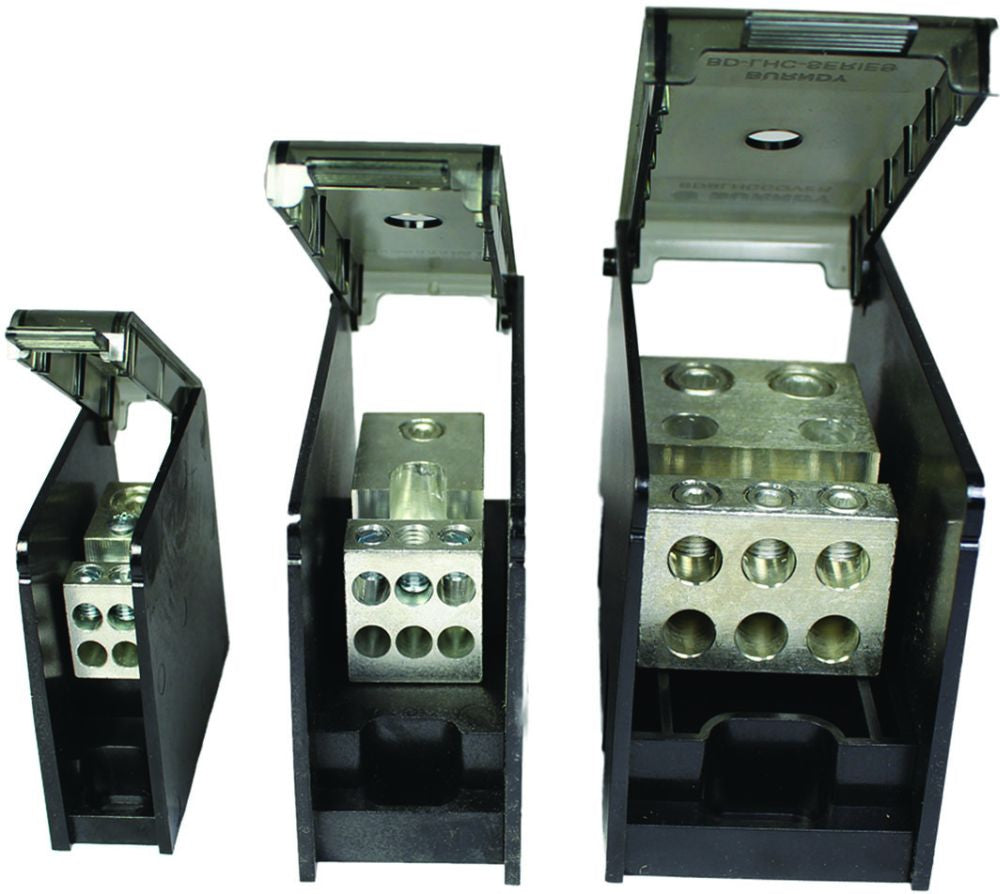

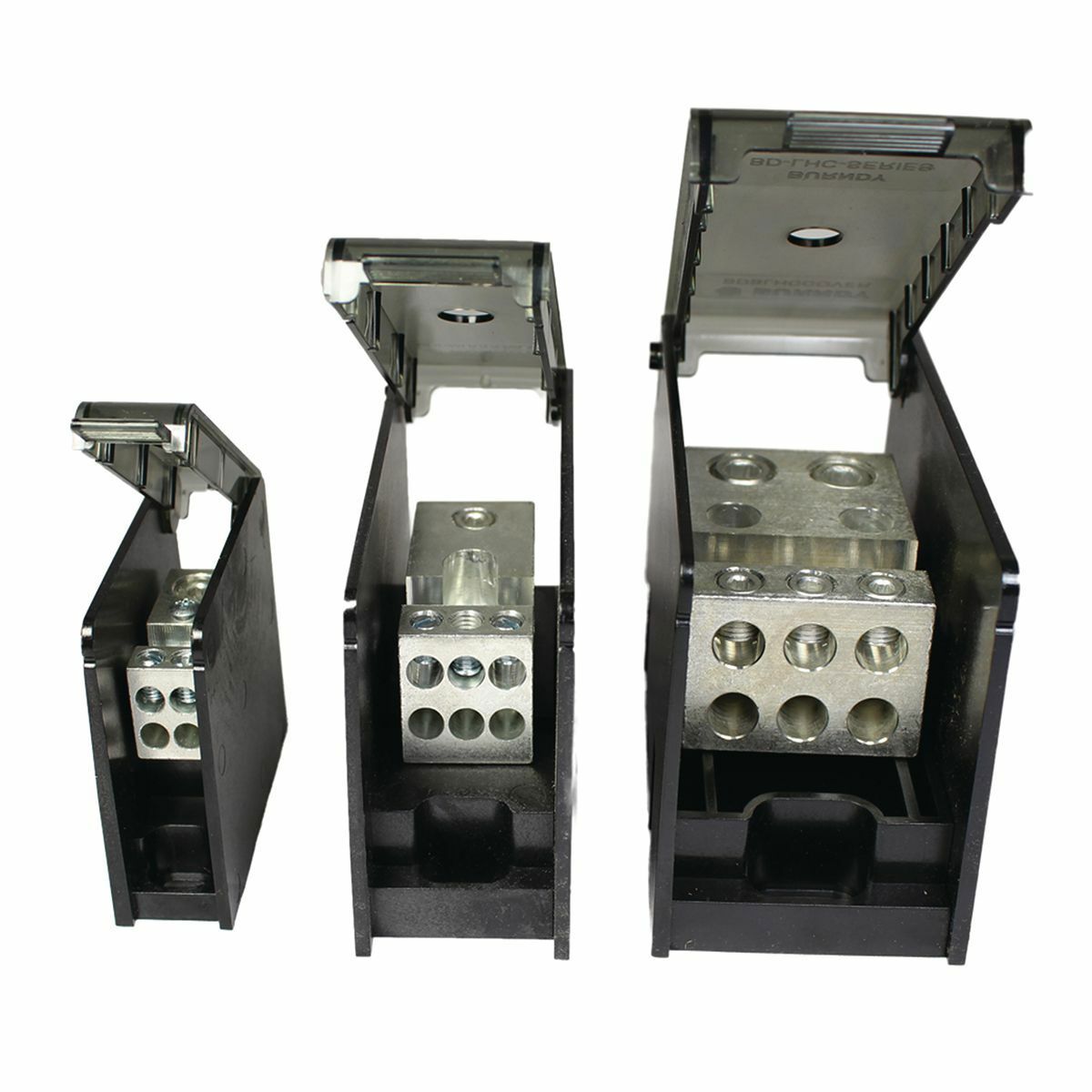

BURNDY BDBLHC223501 Terminal Block Covers AWG 6 - 350 KCMIL (Run) AWG 6 - 350 KCMIL (Tap)

Product Description

The BURNDY BDBLHC223501 is a terminal block cover designed to accommodate wire sizes ranging from AWG 6 to 350 KCMIL. This cover is suitable for use with power distribution blocks, offering robust protection and organization for your electrical systems.

• Compatibility with wire sizes AWG 6 to 350 KCMIL
• Designed for industrial control feeders and HVAC systems
• Constructed from aluminum for durability

Product Highlights

The terminal block cover provides a functional solution to safely manage wire connections, ensuring compliance with electrical standards.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: BDBLHC223501
• Amperage Rating: 620 Amps
• Temperature Rating: 194 Degrees F
• Material: Aluminum
• Insulation: Y
• Application: Industrial control feeder, HVAC system and wire way
• Special Features: Supports multiple poles and accommodates up to 30 tap conductors
• Country of Origin: Mexico
• UPC: 781810645932
