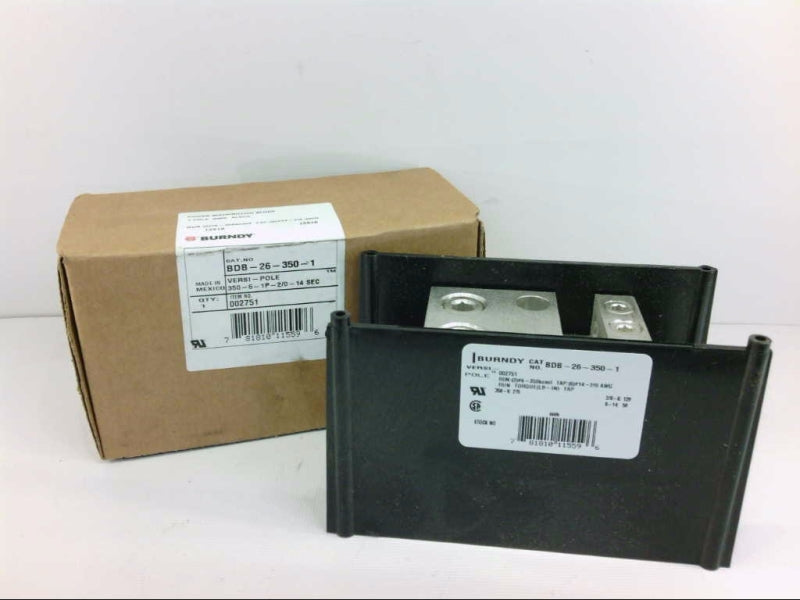

Burndy BDB263501 35061P2/014 SEC Power Distribution Block

Product Description

The Burndy BDB263501 is a reliable power distribution block designed for electrical connection needs. This modular block operates at six hundred volts and supports a current capacity of seven hundred amperes. It features one pole with two primary openings per pole, accommodating a wire size from six AWG to three hundred fifty KCMIL.

• Modular design for versatile applications.
• Supports primary openings for a range of wire sizes.
• Includes secondary openings suitable for smaller wire sizes.

Product Highlights

This product is ideal for both copper and aluminum conductors, ensuring secure connections in power distribution systems.

Product Information

Standard Information

• Manufacturer: Burndy
• Family Group: Connectors

Technical Specifications

• Voltage Rating: 600 V
• Current Rating: 700 A
• Number of Poles: 1
• Primary Openings per Pole: 2
• Primary Opening Wire Size: 6 AWG to 350 KCMIL
• Secondary Openings per Pole: 6
• Secondary Opening Wire Size: 14 AWG to 2/0 AWG
• Conductor Material: Copper/Aluminum
