BURNDY B1596 Mold, Horizontal through Cable to Ground Rod, 4/0 AWG, 150 Weld Metal, 3/4 Ground Rod

Product Description

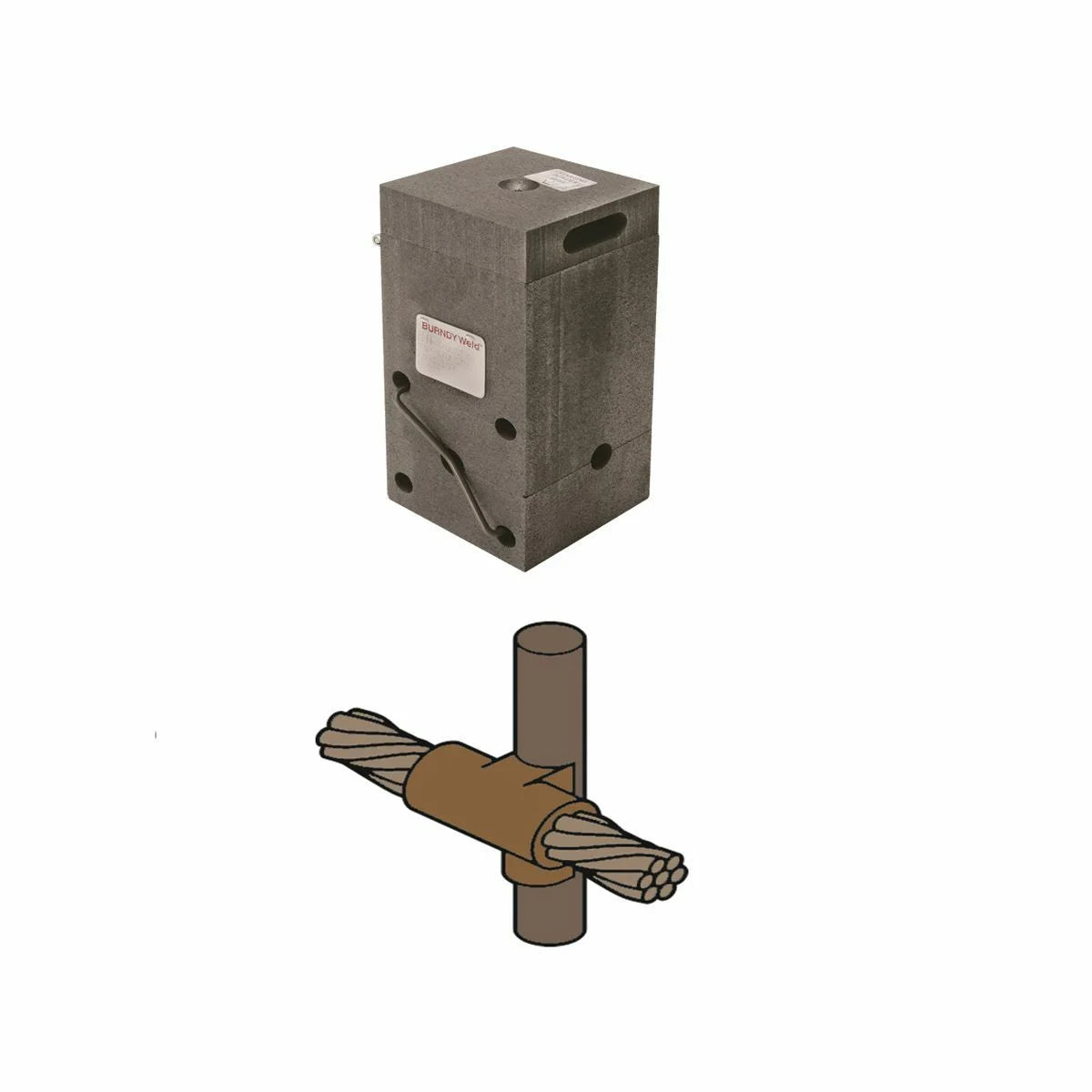

The BURNDY B1596 is designed for connecting horizontal run cables to a vertical ground rod. This model utilizes a type BCR-3 mold, allowing for reliable connections using 4/0 AWG cables with up to 150 weld metal. It is suitable for applications in electrical installations where ground maintenance is critical.

• Ideal for horizontal through run cable connections
• Compatible with vertical ground rods
• Designed for use with concentric stranded copper conductors

Product Highlights

This product provides essential features and specifications to ensure a secure and effective electrical connection.

Product Information

Standard Information

• Catalog Number: B1596
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Brand: BURNDY
• Sub Brand: BURNDYWELD
• Country of Origin: United States
• Made in USA: Yes
• Application: For joining horizontal through run cable to the side of a vertical ground rod
• Mounting: Ground
• Special Features: Mold size accommodates 6 AWG through 1000 KCMIL concentric stranded copper conductors; 3/4 inch ground rod
• Required Tools: B38-0309-00 Flint Ignitor
