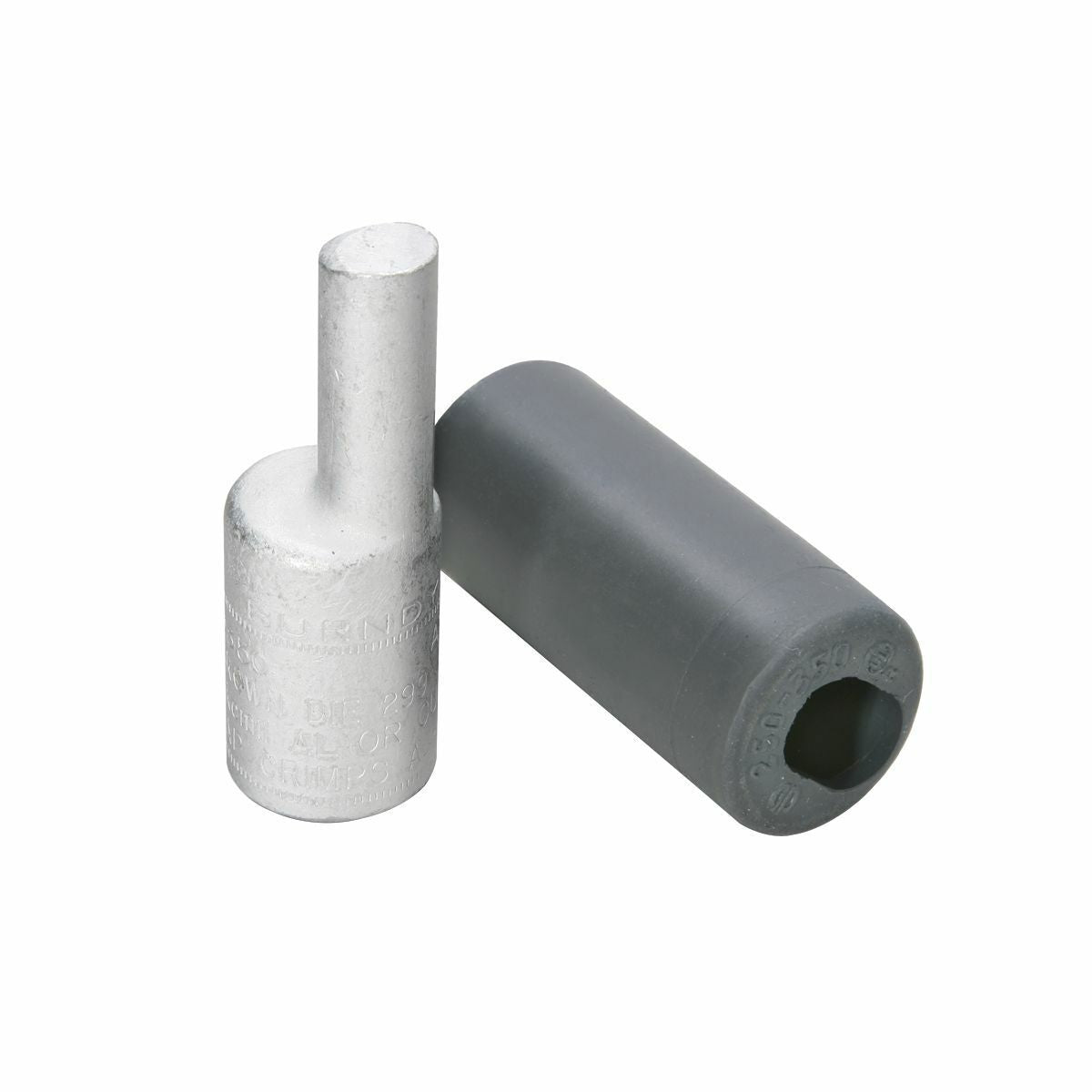

BURNDY AYPO500 Aluminum Compression Pin Adapter 500 kcmil 0.68 Plug Dia 1.60 Plug Length Al/Cu Rated

Product Description

The BURNDY AYPO500 is an aluminum compression pin adapter designed for use with 500 kcmil wire. This connector features a plug diameter of 0.68 inches and a plug length of 1.60 inches, making it suitable for various electrical applications.

• Designed for wire termination applications
• Compatible with aluminum and copper wire connections
• Electro-tin plated to resist corrosion

Product Highlights

The AYPO500 is ideal for ensuring effective wire connections in limited spaces. Its solid plug design and smooth surface enhance conductivity and reliability during use.

Product Information

Standard Information

• Catalog Number: AYPO500
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Brand: BURNDY
• Sub Brand: HYPLUG
• Country of Origin: United States
• Made in USA: Yes
• Application: Wire Termination
• Finish: Tin-Plated
• Material: Aluminum
• Insulation: Y
• Voltage Rating: 35
• Temperature Rating: 194
• Cross Reference Products: PTO-500
• Standard: UL 486A-486B
